USED BW=TEC 394

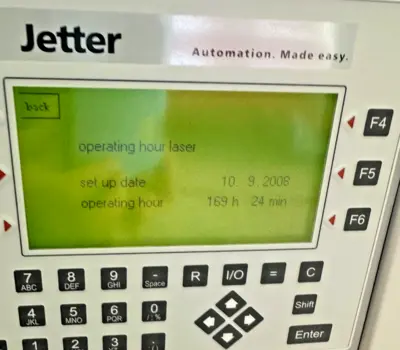

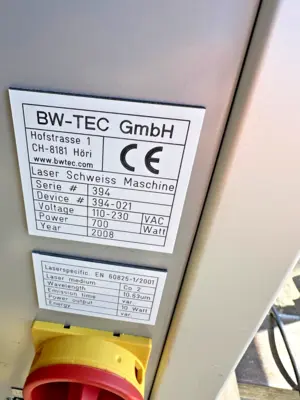

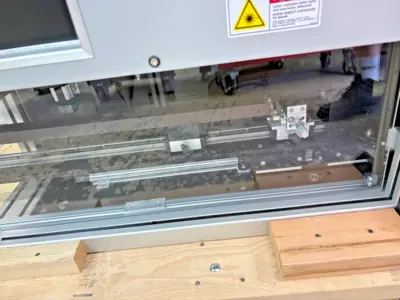

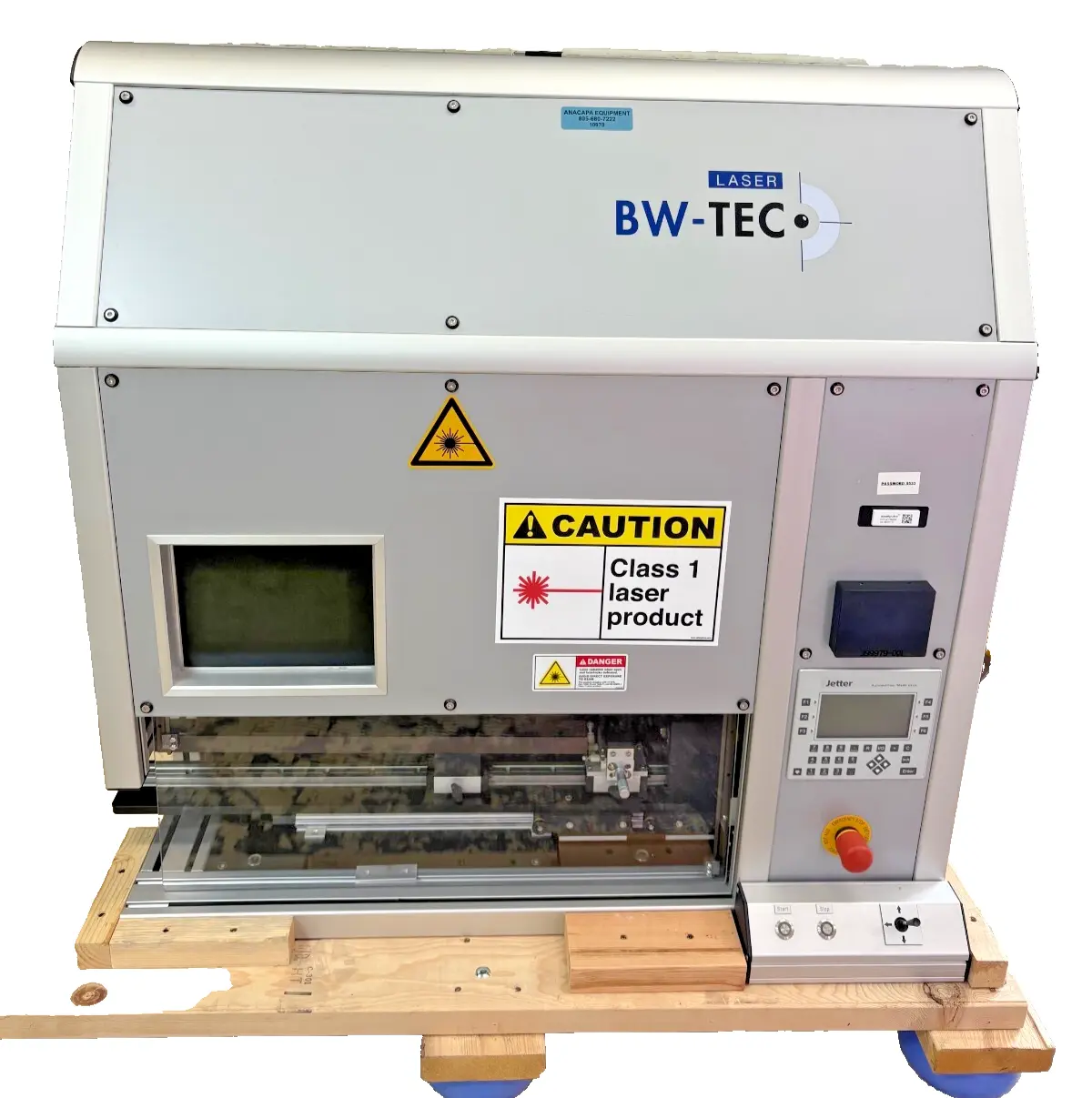

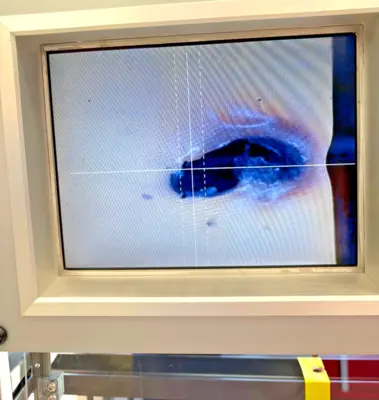

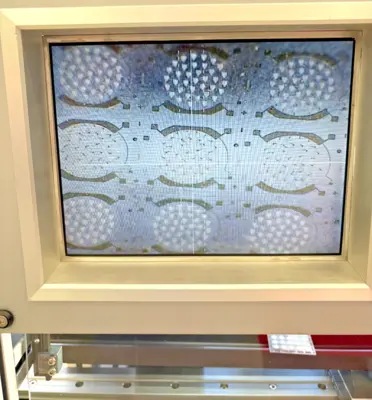

BW-Tec 394 Laser Welding Machine Sold As IS, powers on, displays weld clearly, stages move, door opens/closes and responds to input from controller. Laser fires. Selling for parts buyer will need to verify quality of welds. We accept no responsibility for how buyer uses welder. 30 Day return, shipping not refunded. Manufacturer: BW-TEC Model: 394 394-021 Laser Welding Machine Wavelength 10.63 um Power Out 10 Watts Jetter Control Panel 169 Hours DOM 2008 110-230 VAC 700 Watt Laser Medium CO2 User Manual on Flash Drive The following is taken from the manufacturer's website Technical Specifications: Air Cooled CO2 Laser Wavelength 10.57 to 10.63 µm Power output 10 W Power stability +/–2 % Closed loop controller/ stabilizer Spot diameter variable 0.2–4.0 mm Adjustable focus distance Polarization linear-vertical 50:1 Modulation up to 5 kHz /150 µsec Parameters to set: power, welding time, rotation speed, focus position, distance 70 Programs with up to 9 single steps Rotation speed up to 1500 rpm Headstock with pneumatic collet closer for collets ø 0.4–5.0 mm PLC controller with user interface for data input Camera system with monitor and line generator Linear slide with removable product fixture Travel X-Axis 300 mm Dimensions LxWxH 1000 x 600 x 1000 mm Weight 110 kg Power 100–230 VAC 50/60Hz, 700 W Air pressure 6–10 bar (87–145 psi) Option: Laser Power Meter Data output for process parameters The Laser Welding Machine is designed to weld rotation-symmetrical connections of plastic tube and other materials. The Laser is used for distal and proximal welding and for tip forming. Short welding length and soft flexible welding as well as a high productivity and a reproducible process are the advantages of this laser technology. The vision system with macro zoom monitor and line generator ensures easy in-line inspection and accurate tube placement before welding. BW-Tec 394 Laser Welding Machine (10970) For parts, Sold As IS, powers on, displays weld clearly, stages move, door opens/closes and responds to input from controller. Laser fires. Selling for parts buyer will need to verify quality of welds. We accept no responsibility for how buyer uses welder. 30 Day return, shipping not refunded. Manufacturer: BW-TEC Model: 394 394-021 Laser Welding Machine Wavelength 10.63 um Power Out 10 Watts Jetter Control Panel 169 Hours DOM 2008 110-230 VAC 700 Watt Laser Medium CO2 User Manual on Flash Drive The following is taken from the manufacturer's website Technical Specifications: Air Cooled CO2 Laser Wavelength 10.57 to 10.63 µm Power output 10 W Power stability +/–2 % Closed loop controller/ stabilizer Spot diameter variable 0.2–4.0 mm Adjustable focus distance Polarization linear-vertical 50:1 Modulation up to 5 kHz /150 µsec Parameters to set: power, welding time, rotation speed, focus position, distance 70 Programs with up to 9 single steps Rotation speed up to 1500 rpm Headstock with pneumatic collet closer for collets ø 0.4–5.0 mm PLC controller with user interface for data input Camera system with monitor and line generator Linear slide with removable product fixture Travel X-Axis 300 mm Dimensions LxWxH 1000 x 600 x 1000 mm Weight 110 kg Power 100–230 VAC 50/60Hz, 700 W Air pressure 6–10 bar (87–145 psi) Option: Laser Power Meter Data output for process parameters The Laser Welding Machine is designed to weld rotation-symmetrical connections of plastic tube and other materials. The Laser is used for distal and proximal welding and for tip forming. Short welding length and soft flexible welding as well as a high productivity and a reproducible process are the advantages of this laser technology. The vision system with macro zoom monitor and line generator ensures easy in-line inspection and accurate tube placement before welding. TO RECEIVE REFUND FOR SHIPPING CLAIM: DAMAGE TO SHIPMENT MUST BE NOTED ON BOL (FREIGHT) WITH PHOTO OF DAMAGE NOTE PHOTOS OF DAMAGE OF ITEM AND BOX/CRATE MUST BE TAKEN KEEP ALL PACKAGING Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason (IF DAMAGED DUE TO FREIGHT CARRIER HANDLING YOU MUST FOLLOW STEPS ABOVE TO RECEIVE REFUND) Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (“Seller”) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyer’s right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty. INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (“Indemnitees”) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California. Images sell!Get Supersized Images & Free Image Hosting Track Page Views WithAuctiva's Counter
