NEW GMC 612
Overview

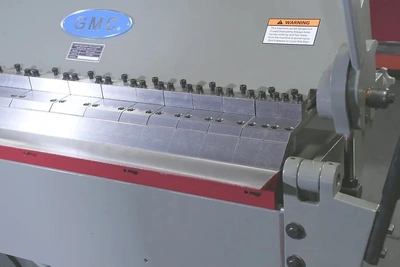

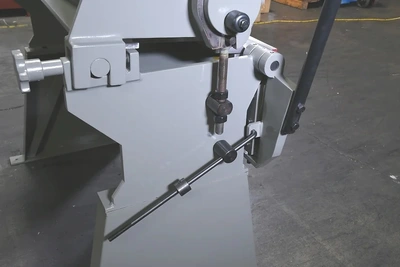

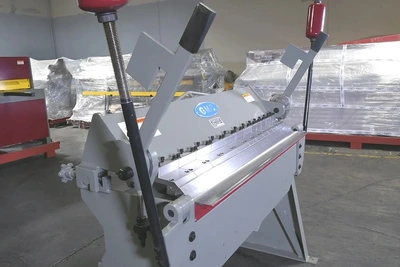

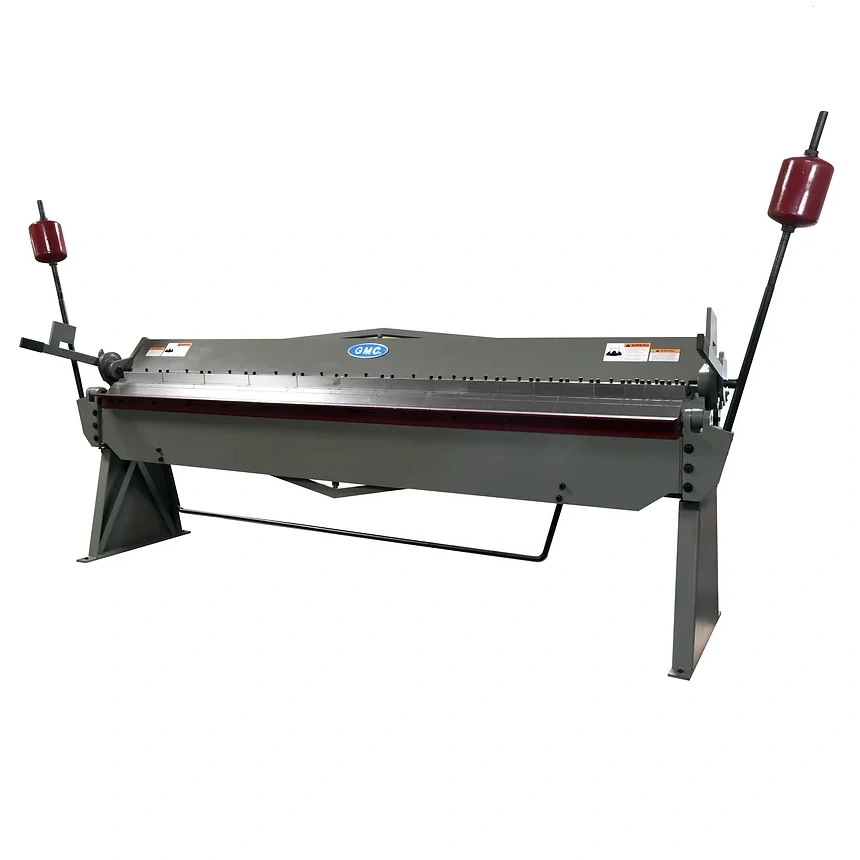

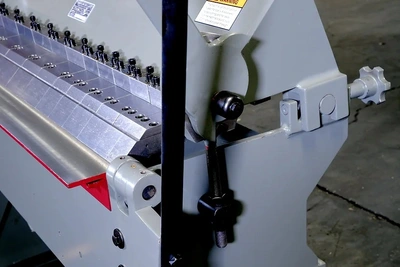

GMC 612 Box & Pan Brake
The GMC 612 Box & Pan Brake is a hand operated machine with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.
GMC 612 Box & Pan Brake Features
ISO 9002 certified
1-9/16” adjustable beam opening
1” beam adjustment (front and back)
Capable of hemming light gauge material of 26 gauge or thinner
Capable of straight bending material fully across
Oilable bearings to maintain precision overtime
Adjustable stop gauge is included to allow the operator to perform repeat bends
14 total fingers assortment:
2”/2pcs, 3”/2pcs, 4”/1pc, 5”/3pcs, 6”/3pcs, 11”/3pcs
2”/2pcs, 3”/2pcs, 4”/1pc, 5”/3pcs, 6”/3pcs, 11”/3pcs
2 – Adjustable counterweights to assist you at max capacity bends
All steel heavy body construction with extra heavy tie rod for minimum deflection
One Year Parts Only Warranty
Optional Equipment
2″ or 2.5″ replacement finger – $115
3″ or 3.5″ replacement finger – $115
4″ replacement finger – $135
5″ or 6″ replacement finger – $175
11″ replacement finger – $175
25″ replacement finger – $275
Specs
Weight: 2350 lbs
Dimensions: 100 × 30 × 40 in
Bending Capacity: Mild Steel – 12 Ga.
Stainless Steel – 16 Ga.
Max. Hemming Capacity: 26 ga. (Mild Steel)
Max. Box Depth: 6"
Bending Length: 6'
Bending Angle: 0° – 135°
Beam Adjustment, Front and Back: 1"
Minimum Reverse Bend: 1/2"
Beam Opening: 1-9/16"
Weight: 2,250 lbs.
Dimensions: 120" x 32" x 77"
Brand: GMC
