GMC 8′ x 8 ga. Powered Plate Roll Machine

GMC 8′ x 8 ga. Powered Plate Roll Machine

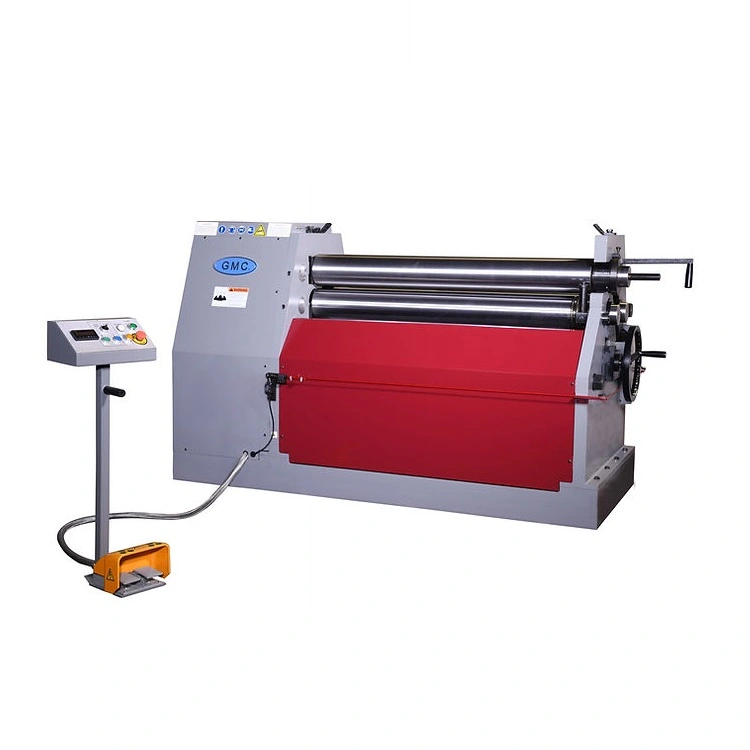

GMC’s 8′ x 8 ga. Powered Plate Roll Machines are made for bending and rolling 8 gauge metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system. GMC’s Powered Plate Bending Rolls are equipped with robust 3.5″ rollers designed for customers that bend or roll thick materials including stainless steel made of high grade alloy steel and hardened 50-52 HRC. All three rollers are driven to reach tight tolerance.
GMC 8′ x 8 ga. Powered Plate Roll Machine Features:
All three rollers are driven
All three rollers are hardened, up to 50-52 HRC
Easy swing –out top roller
Standard cone attachment installed

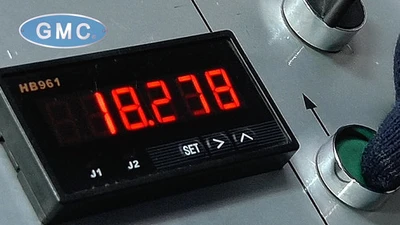

1 each LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy Duty all steel welded machine construction
German Hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered up/down & tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse, Safety type foot pedal control
Overload protection and disconnect switch
Power source 208V/220V, (Option 460 V , 3 phase)
One year industrial warranty for parts
ISO 9001 certified
GMC 8′ x 8 ga. Powered Plate Roll Machine Standard Equipment:
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Cone attachment (to make cone parts)
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire
GMC 8′ x 8 ga. Powered Plate Roll Machine Options:
Safety fence for enclosure of the back side of the machine – $1,150.00
