NEW GMC 1014
Overview

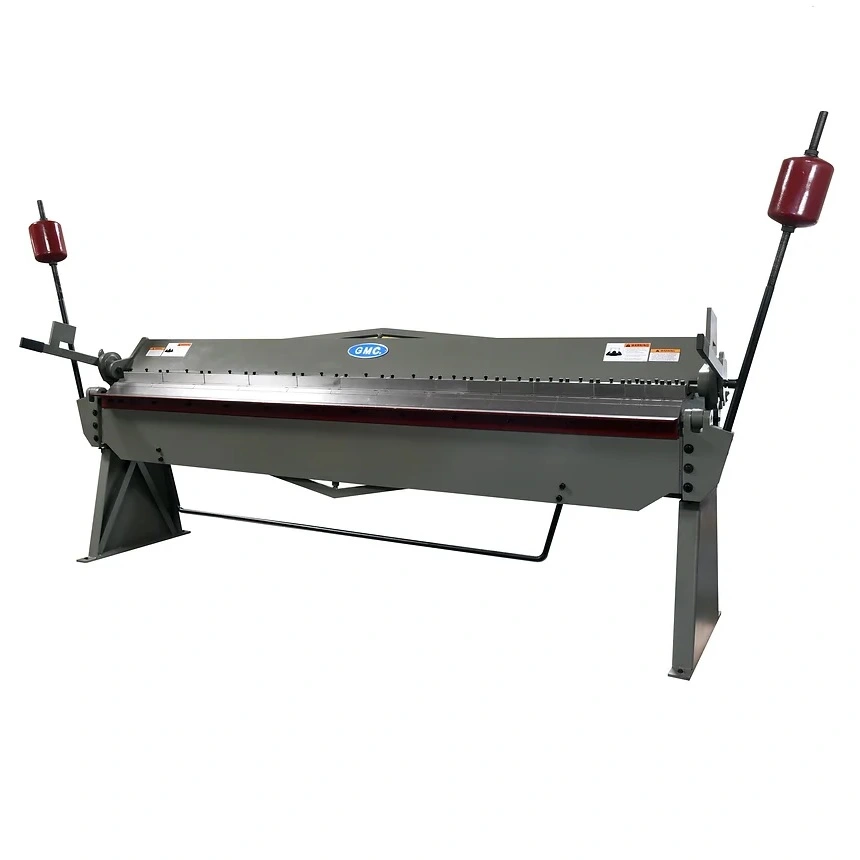

GMC 1014 Box & Pan Brake
The GMC 1014 Box & Pan Brake is a hand operated machine with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.
GMC 1014 Box & Pan Brake Features
ISO 9002 certified
1-9/16” adjustable beam opening
1” beam adjustment (front and back)
Capable of hemming light gauge material of 26 gauge or thinner
Capable of straight bending material fully across
Oilable bearings to maintain precision overtime
Adjustable stop gauge is included to allow the operator to perform repeat bends
16 Total fingers assortment:
3”/1pc, 5”/3pcs, 6”/3pcs, 10”/3pcs, 12”/4pcs
3”/1pc, 5”/3pcs, 6”/3pcs, 10”/3pcs, 12”/4pcs
2 – Adjustable counterweights to assist you at max capacity bends
All steel heavy body construction with extra heavy tie rod for minimum deflection
One Year Parts Only Warranty
Optional Equipment
One piece straight finger to convert to straight brake – $1,995
2″ or 2.5″ replacement finger – $115
3″ or 3.5″ replacement finger – $115
5″ or 6″ replacement finger – $175
10″ replacement finger – $175
12″ replacement finger – $235
Specs
Weight: 3350 lbs
Dimensions: 142 × 30 × 41 in
Bending Capacity: Mild Steel – 14 Ga.
Stainless Steel – 18 Ga.
Max. Hemming Capacity: 26 ga. (Mild Steel)
Max. Box Depth: 6"
Bending Length: 10'
Bending Angle: 0° – 135°
Beam Adjustment, Front and Back: 1"
Minimum Reverse Bend: 1/2"
Beam Opening: 1-9/16"
Weight: 3,250 lbs.
Dimensions: 159" x 32" x 77"
Brand: GMC
