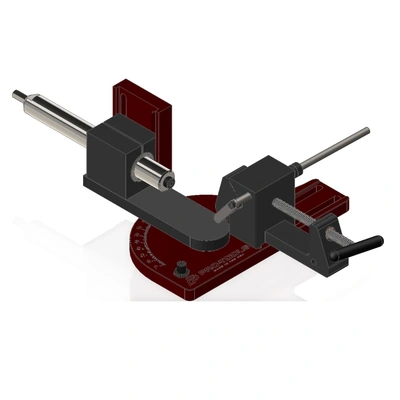

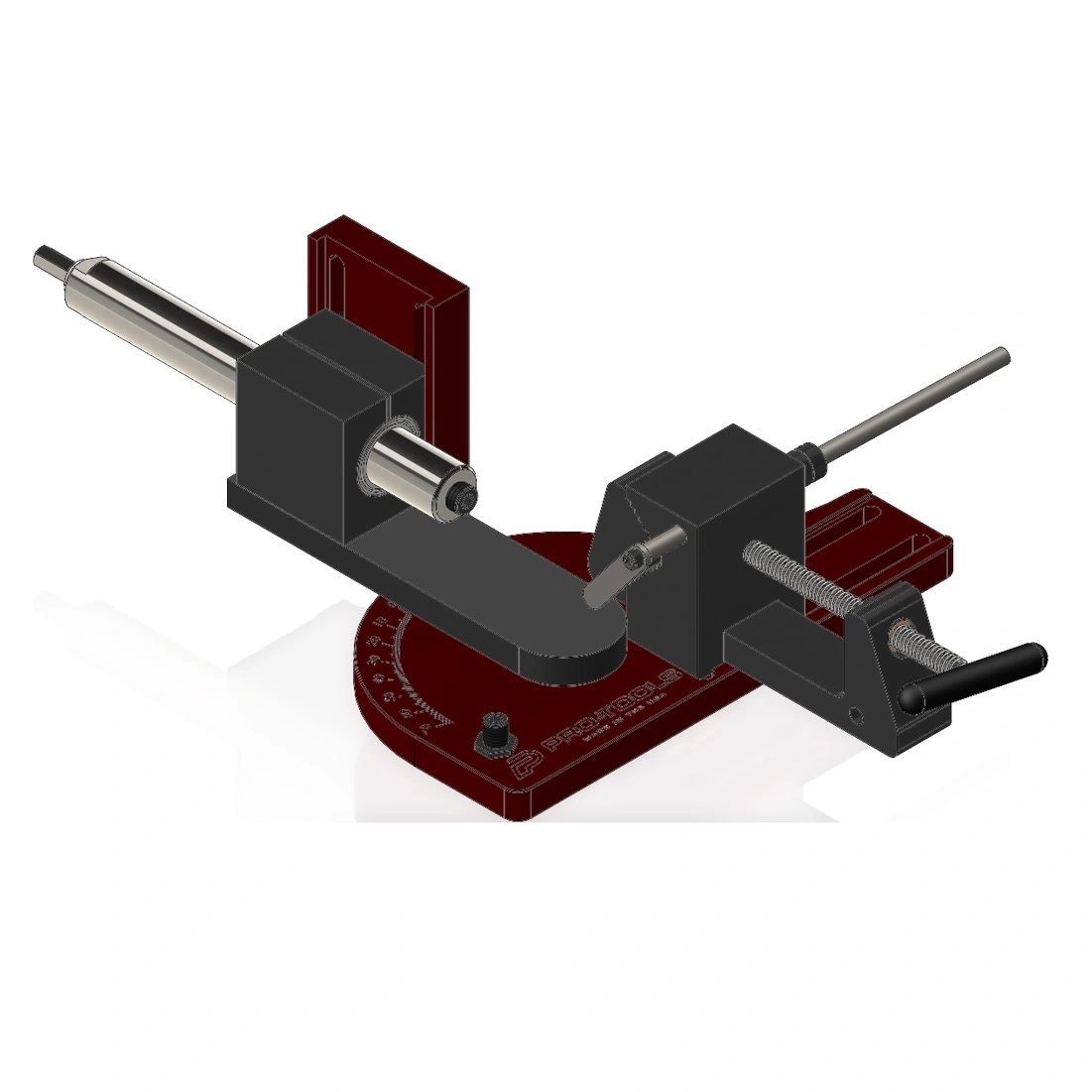

Pro-Tools Master Pipe and Tube Notcher

Pro-Tools Master Pipe and Tube Notcher
The Pro-Tools Master Pipe and Tube Notcher operation is simple, just clamp your tube in the calibrated swivel vise that allows for accurate and repeatable positioning at any angle.
Pro-Tools Master Pipe and Tube Notcher Features:
Industry-leading square tube clamping technology simplifies square tube notching like never before
Angle changes require no tools, which minimizes time between notches and maximizes notch precision
Precision-machined, large-text degree and offset notching engravings ensure pinpoint accuracy on all notches
Included stop makes easy work of duplicate notches without having to mark tubes
Made from black-oxide treated, cold rolled steel and hard anodized aluminum for unrelenting durability
Double-sealed needle bearings seat the 1.25″ case-hardened shaft for ultimate performance
100% designed, machined, and assembled in the USA
Round Tube
Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
Maximum Outside Diamter (OD): 3″ (76.2 mm)
Square Tube
Minimum Size: 1/2″ (12.7 mm)
Maximum Size: 2″ (50.8 mm)
Pipe
Minimum Size: NPS 1/4 (DN 8)
Maximum Size: NPS 2 1/2 (DN 65)
Other Specifications
Angled Notches: 0-60 degrees (up to 2″), 0-50 degrees (over 2 1/2″)
Offset Notches: Up to 1/2 the OD of the material
