Pro-Tools BRUTE Hydraulic Tube & Pipe Bender

Pro-Tools BRUTE Hydraulic Tube & Pipe Bender

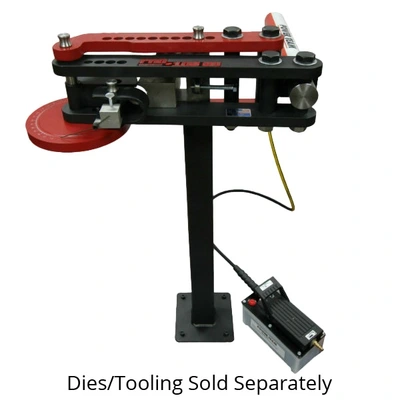

The Pro Tools BRUTE Hydraulic Tube & Pipe Bender is a heavy duty machine for race car chassis, roll bars, handrails and more. With its 2 1/2″ tube or 2″ schedule 80 pipe capacity, the BRUTE can handle almost any job. Features include a 15 ton hydraulic cylinder with a 16″ stroke and a 1″ thick main bending frame with an integrated CNC machined degree ring. The large selection of round, square, pipe and metric die sets make this machine extremely versatile and custom sizes and radii can be quoted upon request.
Pro-Tools BRUTE Hydraulic Tube & Pipe Bender Features:
Great for custom fabrication applications
Bend up to 2-1/2″, 0.134″ tubing or NPS 1-1/2 pipe with no effort!
100% Designed, Machined, and Assembled in the USA!
The world’s only true anti-springback system
Designed for a lifetime of constant use
Forms quality, repeatable bends (less than 10% distortion in most cases)
Creates 180-degree bends in less than 2 minutes (requires appropriate die)
Tooling changes in less than 30 seconds
All parts are CNC-machined for accuracy
Industrial-strength 1”-thick arms
Full selection of over 300 dies
Pro-Tools BRUTE Hydraulic Tube & Pipe Bender Includes:
Brute Tube and Pipe Bender
Built-in Degree Ring
15-Ton American-Made Hydraulic Cylinder
10,000 PSI American-Made Air/Hydraulic Pump with Hose
Stand
Full Pin Set
Tensioning Bolt
Round Tube
Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
Maximum Outside Diamter (OD): 2-1/2″ (63.5 mm)
Minimum Wall Thickness: Depends on Die (See Die Chart)
Maximum Wall Thickness: 0.134″ (3.4 mm)
Pipe
Minimum Size: NPS 1/4 (DN 8)
Maximum Size: NPS 2 (DN 50)
*Benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
Square Tube
Minimum Size: 3/4″ (19.1 mm)
Maximum Size: 1-1/2″ (38.1 mm)
Minimum Wall Thickness: 0.065″ (1.7 mm)
Maximum Wall Thickness: 0.125″ (3.2 mm)
Other Specifications
Minimum Centerline Radius (CLR): Approx. 3 x OD (See Die Chart for details)
Maximum Centerline Radius (CLR): 7″ (177.8 mm)
Maximum Degree of Bend: 180 degrees, depending on the die
