NEW GMC 1010
Overview

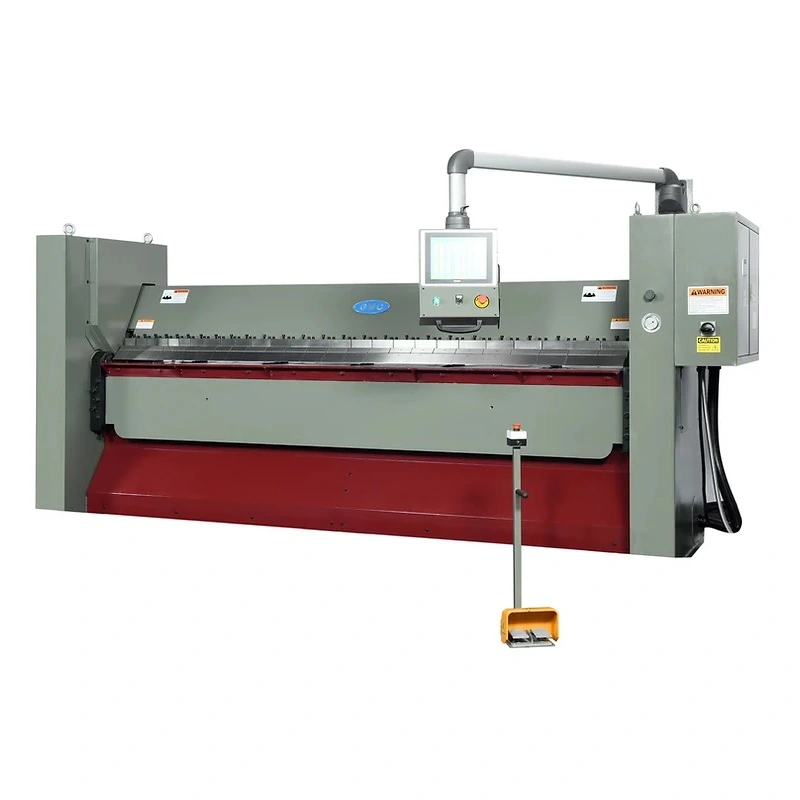

GMC 1010 CNC Hydraulic Box and Pan Brake
GMC’s 1010 CNC Hydraulic Box and Pan Brake has been designed in the US and comes equipped with a German Rexroth hydraulic system , a rigid 48” NC table back gauge with fingers to bend large pieces of sheet metal into box shape with ease. The controls allow you to bend up to 16 times in a single program, and store up to 100 programs in the memory. If you’re looking for easy and intuitive controls that you can pickup quickly then the GMC 1010 CNC Hydraulic Box and Pan Brake is the perfect machine for you.
GMC 1010 CNC Hydraulic Box and Pan Brake Features:
ISO 9001 certified
Meets OSHA and CE safety standards
48” NC table back gauge with fingers

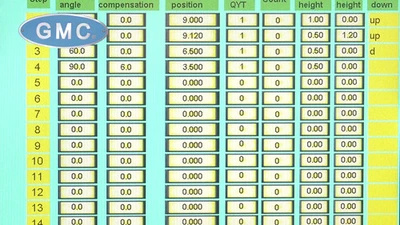

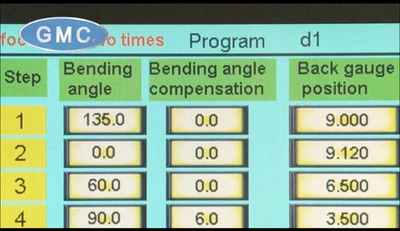

Max. 16 bends per program
Up to 100 programs storage

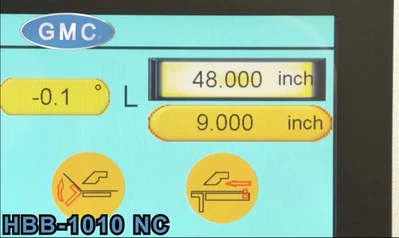

Programmable angle/ angle correct
NC ram height control for open hemming

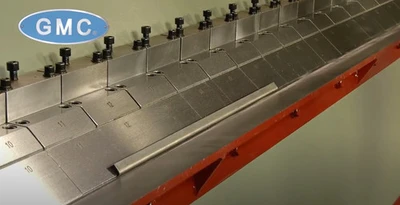

Hardened fingers and table
Germany Rexroth hydraulic system
Yaskawa Servo motors and drives

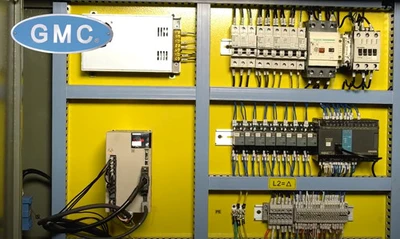

Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
GMC 1010 CNC Hydraulic Box and Pan Brake Options:
Single piece 10’ straight finger – $2,995
One day on-site training – $4,995
Specs
Weight: 12000 lbs
Dimensions: 163 × 85 × 78 in
Max. Bending Capacities: Mild Steel – 10 ga. Stainless Steel – 14 ga.
Max. Bending Length: 10'
Max. Bend Angle: 0° – 135°
Max Box Depth: 6"
Max. Beam Opening: 3"
Beam Front/Back Adjustment: 1"
Min. Reverse Bend: 1"
Max. Back Gauge Distance: 48-3/8"
Min. Back Gauge Distance: 1/4"
Back Gauge Repeatability: 0.0039"
Table Height: 35-3/4"
Finger Assortment: 3" 4" 5" 6"
Main Motor: 10 HP 3 Phase Prewired: 220VAC 35A
Back gauge Servo Motor: 1 HP
Hydraulic Oil Tank Capacity: 32 Gal.
Recommended Hydraulic Oil: Shell #68 or equivalent
Weight: 11,550 lbs.
Dimensions: 175" x 93" x 76"
