NEW PRO-TOOLS 105

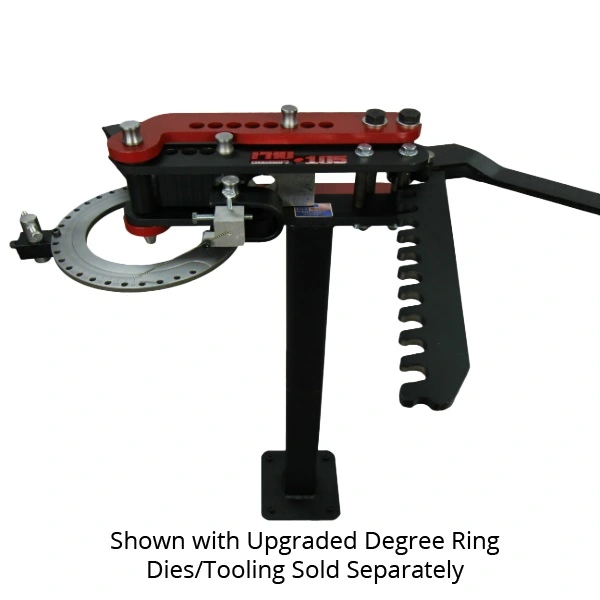

Pro-Tools 105 Series “Heavy Duty” Manual Tube & Pipe Bender Package
The Pro-Tools 105 Series “Heavy Duty” Manual Tube & Pipe Bender is a heavy duty machine for race car chassis, roll bars, handrails and more. With its 2 inch OD x .188 wall (1-1/2 inch pipe schedule 40) bending capacity and economical pricing, it can pay for itself in the first use. The Model 105 Heavy-Duty uses mechanical leverage to easily bend by hand but can be upgraded to hydraulics at any time. The large selection of round, square, pipe and metric die sets make this machine extremely versatile and custom sizes and radii can be quoted upon request.
Pro-Tools 105 Series “Heavy Duty” Manual Tube & Pipe Bender Features:
Great for custom fabrication applications
Bend up to 2″, 0.134″ tubing or NPS 1-1/2 pipe with no effort!
100% Designed, Machined, and Assembled in the USA!
Designed for a lifetime of constant use
Forms quality, repeatable bends (less than 10% distortion in most cases)
Creates 180-degree bends in less than 2 minutes (requires appropriate die)
Tooling changes in less than 30 seconds
All parts are CNC-machined for accuracy
Heavy-duty 5/8”-thick frame arms
Full selection of over 300 dies
Converts to hydraulic in minutes
Pro-Tools 105 Series “Heavy Duty” Manual Tube & Pipe Bender Includes:
105 Heavy Duty Tube and Pipe Bender
Extension Handle
Degree Plate with Pointer
Stand
U-Strap Pin, Center-Axis Pin, Backing Block Pin, Large Swing Arm Pin, Ratchet Handle Pin, & Small Swing Arm Pin
Tensioning Bolt
Round Tube
Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
Maximum Outside Diamter (OD): 2″ (50.8 mm)
Minimum Wall Thickness: Depends on Die (See Die Charts)
Maximum Wall Thickness: 0.134″
Pipe
Minimum Size: NPS 1/4 (DN 8)
Maximum Size: NPS 1-1/2 (DN 35)
Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
Square Tube
Minimum Size: 1/2″ (12.7 mm)
Maximum Size: 1-1/2″ (38.1 mm)
Minimum Wall Thickness: 0.065″ (1.7 mm)
Maximum Wall Thickness: 0.125″ (3.2 mm)
Other Specifications
Minimum Centerline Radius (CLR): Approx. 3 x OD (See Die Charts for details.)
Maximum Centerline Radius (CLR): 7″ (177.8 mm)
Maximum Degree of Bend: 180 degrees, depending on the die
