NEW JET JIW-45T
Overview

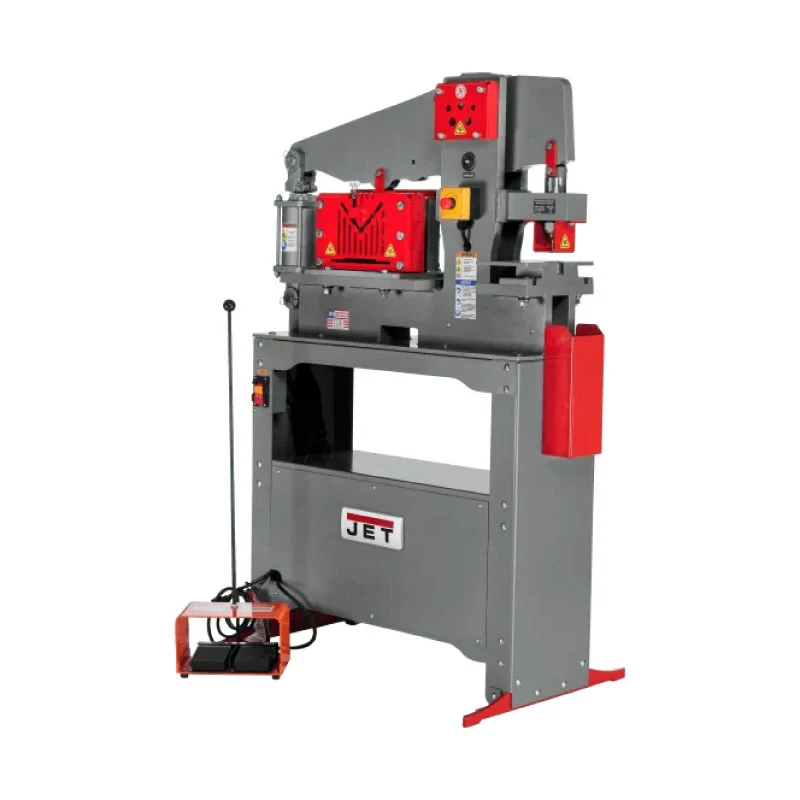

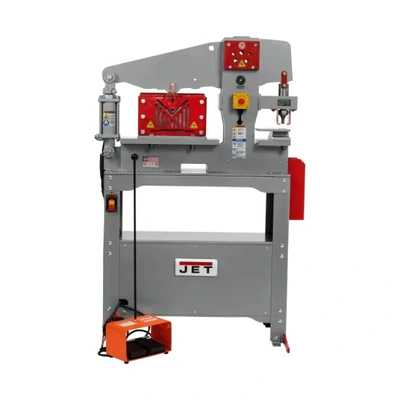

JET JIW-45T Ironworker
The JET 45 Ton Ironworker delivers 4 workstations to provide solutions to users needs, with a Punch workstation, a combination Flat Bar Shear and Angle Shear, and an integrated 7-size Rod Shear. Small and with a compact footprint, this Ironworker also includes a Punch & Die Holder and Slug Receptacle to keep the users work area clean and organized. This sturdy and tough Ironworker is Made in the USA and back by the JET RED Assurance 2-Year warranty.
Features:

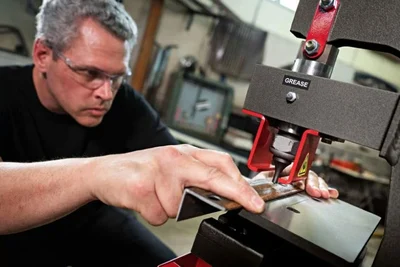

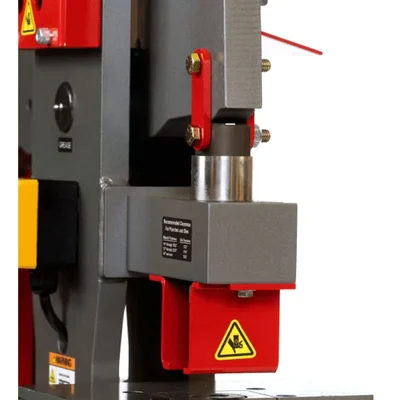

Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear
Operates on 115V power allowing use almost anywhere
ANSI Compliant Guarding on the Angle & Rod Shears

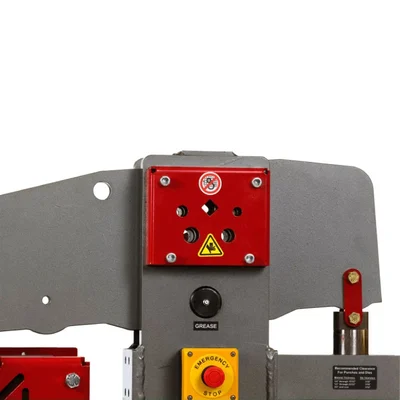

E-stop with UL Listed compliant controls providing additional operator safety
Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets
Convenient foot control with handle is easy to move between workstations
Optimized workstation heights reduce user fatigue
Slug receptacle collects all punch slugs keeping work area clear

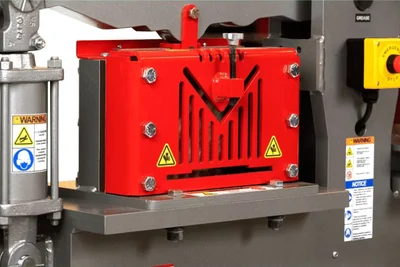

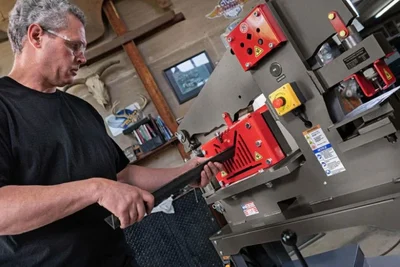

Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric
Specs
Weight: 840 lbs
Dimensions: 51 × 45 × 64 in
Cylinder (In): 3-1/2" Ram
Angle Shear Max Capacity 1/4": 3 x 3
Flat Bar Shear Max Capacity 1/4": 8
Flat Bar Shear Max Capacity 3/8": 4
Flat Bar Shear Rating (Tons): 45
Flat Bar Shear Work Height (In.): 40
Gross Weight (Lbs): 802
Motor Amps: 14
Motor (HP): 1-1/2 HP, 115V, 1Ph
Motor Speed (RPM): 3500
Overall Dimensions (L x W x H) (In.): 40 x 24 x 58

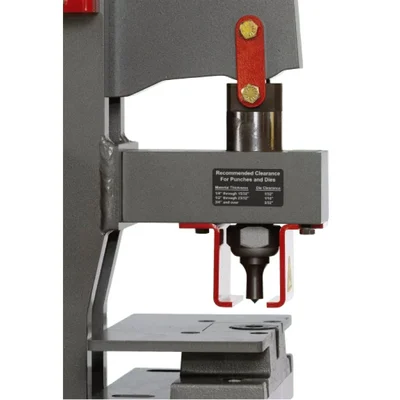

Punch Max Capacity (In.): 1 diam. In. 1/2 mild steel
Punch Rating (Tons): 45
Punch Stroke (In.): 1-1/2
Punch Work Height (In.): 41

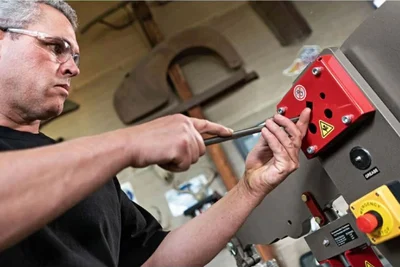

Rod Shear Max Round (In): 3/4
Rod Shear Max Square (In): 5/8
Rod Shear Work Height (In): 54
Valve Pressure (PSI): 2800
Throat Depth (In.): 5-3/4
