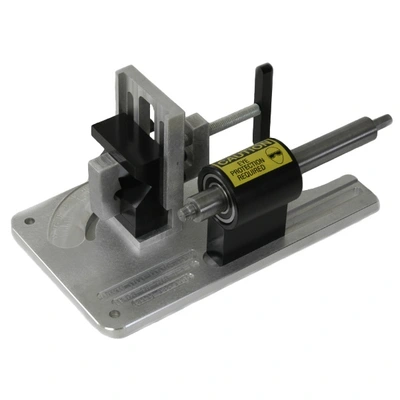

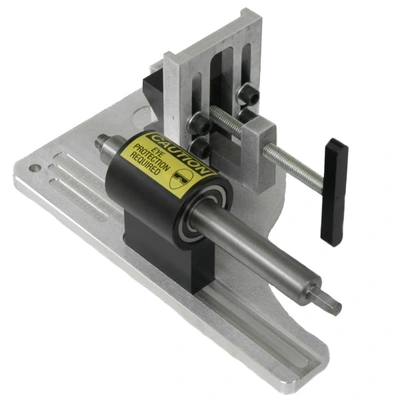

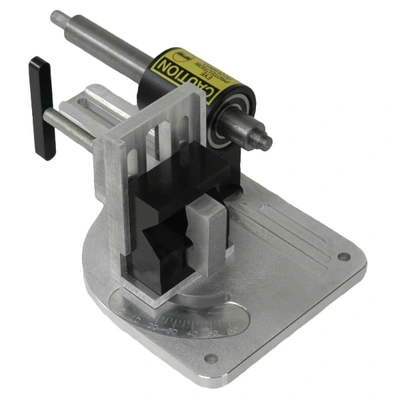

Pro-Tools Pro+ Pipe and Tube Notcher

Pro-Tools Pro+ Pipe and Tube Notcher
The Pro-Tools Pro+ Pipe and Tube Notcher operation is simple, just clamp your tube in the calibrated swivel vise that allows for accurate and repeatable positioning at any angle.
Pro-Tools Pro+ Pipe and Tube Notcher Features:
Quickly forms perfect, ready-to weld straight, angled, and offset notches in up to 2″ OD tubing (NPS 1-1/2 pipe)
Use a hand drill or drill press (the only notcher with the ability to do offset notches in a drill press)
CNC-engraved degree finder helps you dial in your notches
1″ 4140 Shaft rides in 2 double-sealed ball bearings (no needle bearings or bushings!)
100% Designed, Machined, and Assembled in the USA!
Designed for a lifetime of constant use
Tooling changes in seconds
All parts are CNC-machined for accuracy
Round Tube
Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
Maximum Outside Diamter (OD): 2″ (50.8 mm)
Pipe
Minimum Size: NPS 1/4 (DN 8)
Maximum Size: NPS 1-1/2 (DN 35)
Other Specifications
Notch Angle: 0degrees-60degrees
Offset Notching: Up to 1/2 the OD of your tube or pipe
Minimum Chuck Size: 1/2″ (12.7 mm)
Minimum Required Chuck-to-Table Height (for drill press use): 16″ (407 mm)
Arbor Thread Sizes: 1/2-20 and 5/8-18 (accepts both)
