NEW PRO-TOOLS 302

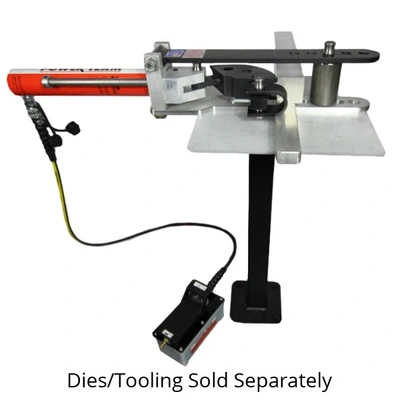

Pro-Tools 302 “One-Shot” Hydraulic Tube & Pipe Bender
The Pro Tools BRUTE Hydraulic Tube & Pipe Bender is a heavy duty machine for race car chassis, roll bars, handrails and more. With its 2 1/2″ tube or 2″ schedule 80 pipe capacity, the BRUTE can handle almost any job. Features include a 15 ton hydraulic cylinder with a 16″ stroke and a 1″ thick main bending frame with an integrated CNC machined degree ring. The large selection of round, square, pipe and metric die sets make this machine extremely versatile and custom sizes and radii can be quoted upon request.
Pro-Tools 302 “One-Shot” Hydraulic Tube & Pipe Bender Features:
Perfect for production applications
Adjustable stop included-set it once and create as many parts as you need
Bend up to 2″, 0.134″ tubing or NPS 1-1/2 pipe without any effort!
100% Designed, Machined, and Assembled in the USA!
Bend up to 90 degrees, after springback, in one stroke of the cylinder
Designed for a lifetime of constant use
Forms quality, repeatable bends (less than 10% distortion in most cases)
Creates 90-degree bends in less than 30 seconds
Tooling changes in less than 60 seconds
All parts are CNC-machined for accuracy
Full selection of over 300 dies
Pro-Tools 302 “One-Shot” Hydraulic Tube & Pipe Bender Includes:
One-Shot Tube and Pipe Bender
16″ x 17″ Aluminum Table
Follow Bar Support Bar
Adjustable Stop
Stand
15-Ton American-Made Hydraulic Cylinder
10,000 PSI American-Made Air/Hydraulic Pump
Full Pin Set
Tensioning Bolt
Round Tube
Minimum Outside Diameter (OD): 1/2″ (12.7 mm)
Maximum Outside Diamter (OD): 2″ (50.8 mm)
Minimum Wall Thickness: Depends on Die (See Die Charts)
Maximum Wall Thickness: 0.134″
Pipe
Minimum Size: NPS 1/4 (DN 8)
Maximum Size: NPS 1-1/2 (DN 35)
Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
Square Tube
Minimum Size: 1/2″ (12.7 mm)
Maximum Size: 1-1/2″ (38.1 mm)
Minimum Wall Thickness: 0.065″ (1.7 mm)
Maximum Wall Thickness: 0.125″ (3.2 mm)
Other Specifications
Minimum Centerline Radius (CLR): Approx. 3 x OD (See Die Charts for details.)
Maximum Centerline Radius (CLR): 7″ (177.8 mm)
Maximum Degree of Bend: 90 degrees, after springback
