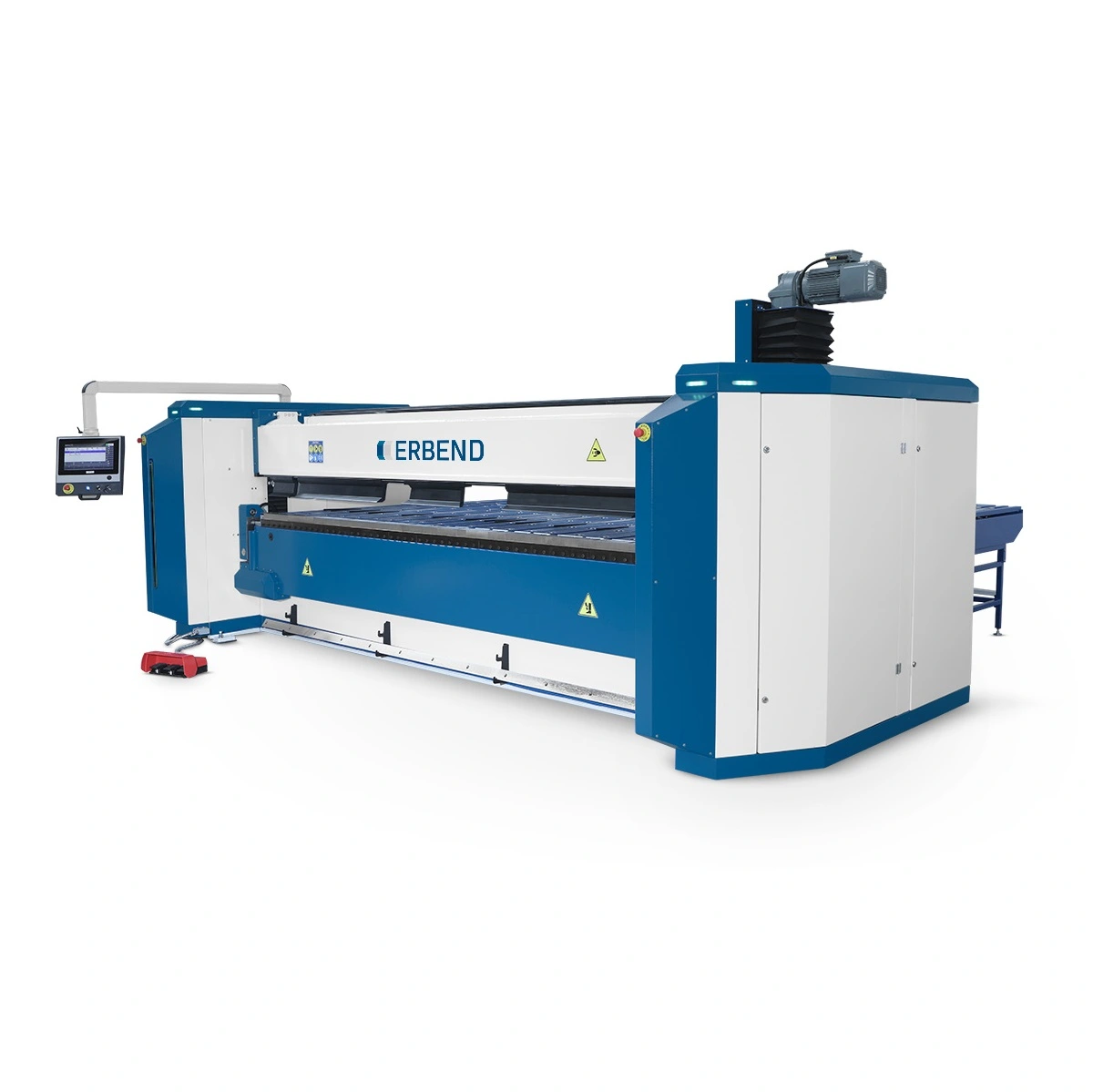

Erbend MFA Series CNC Servo Combi Sheet Metal Folding Machine

Erbend MFA Series CNC Servo Combi Sheet Metal Folding Machine
Standard Features:
9.8″ (250mm) stroke capacity on 180° rotating combi clamping beam with 2 tool stations
4.9″ (125mm) high segmented goat foot tools on station 1 and 30° single piece sharp nose tool on station 2
Manual crowning system
3.15″ (35mm) (A axis) Servo motorized folding beam adjustment

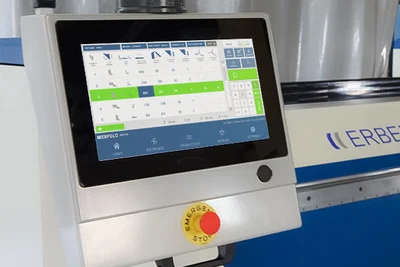

CNC line by line control software on 15.4” touchscreen controller with swivel arm

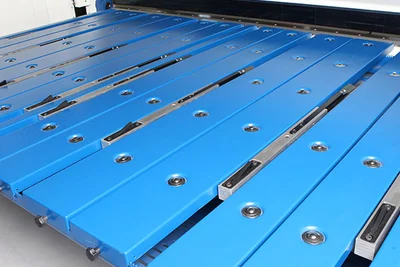

59″ (1500mm) motorized back gauge system and sheet support table with ball casters

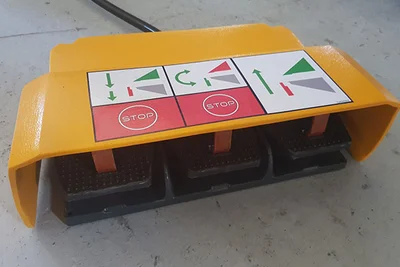

3 switch control foot pedal
Front light barriers
Led function lights
Optional Features:
98.42″/118.11″/157.48″ (2500/3000/4000 mm)  motorized back gauge system and sheet support table with ball casters
Front side gauging arms + middle and back side triangle fingers up to 6 sectors
Movable sliders for down flanges + steady side gauge
Advanced 3D CNC graphic control software on touchscreen controller with swivel arm
U shape back gauge system (metal or with brushes)
L shape back gauge system (metal or with brushes)
Solid lower beam tool with feather grooves
Tool & Beam Geometry
