NEW GMC 45-TON

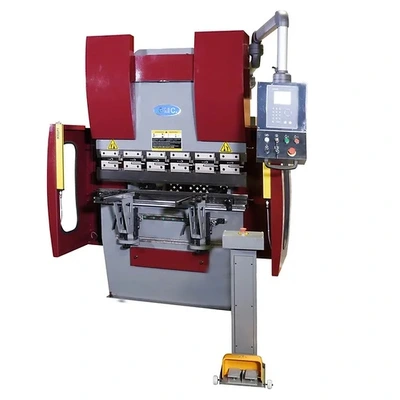

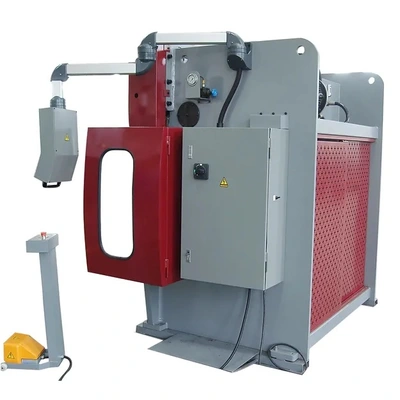

GMC 45-Ton 4’ Hydraulic CNC Press Brake
Features:
ISO 9001 certified
Meet OSHA and CE safety standard

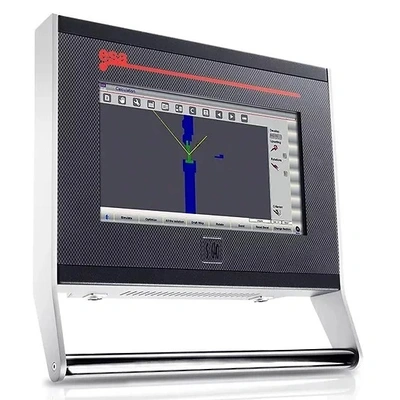

ESA (Italy) Model 625, 2 Axis CNC Controller
Die library, offline programming, stores thousands of programs
Programmable Angle/ Angle Correct
Germany Rexroth hydraulic system
Yaskawa Servo motor and Drives
Schneider electrical components
Hydraulic crowning
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
Standard Equipment:
ESA (Italy) Model 625, 2 Axis CNC Controller
(2) 24” front support arms, Quick Release for easy positioning

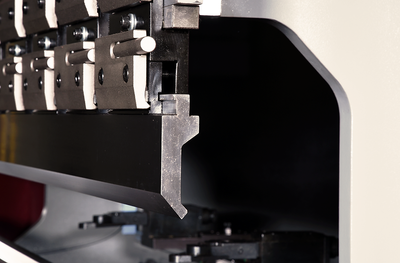

Quick release segmented (American Style Tooling) punch holder
Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts – Ask your dealer for custom tooling quotes)
Full Length Vee Die with 6 assorted sizes HRC 50
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with Estop meet OSHA safety standard
Specifications:
Cylinder Travel Adjustment (max)
2″
Max Stacked Tooling Height
8-1/2″
Working speed, inch / second
Return speed, inch / second
0.78”
2.75”
Servo motor for back gauge:
Servo motor for bending angle setting:
Prewired: 220VAC (+/- 10%)
1 HP, 3 Phase
220VAC (+/- 10%)
1/2 HP, 3 Phase
220VAC (+/- 10%)
Recommended Oil:
Hydraulic Oil Shell #68HD
Machine size, L x W x H:
Shipping dimensions:
71″ x 56″ x 81”
79″x63″x89″
