NEW JET ELITE 16

Illinois, United States

At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.

View seller profile

Overview

Vertical Band Saws

JET ELITE 16

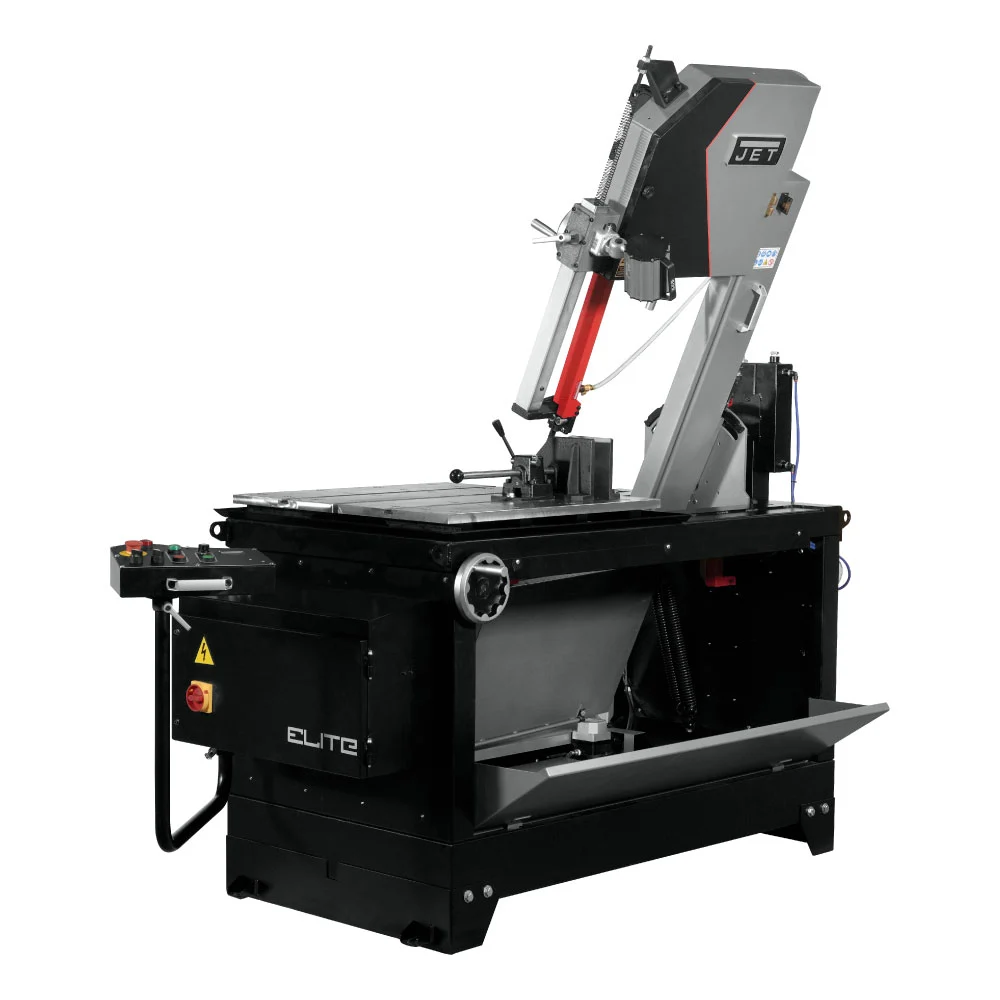

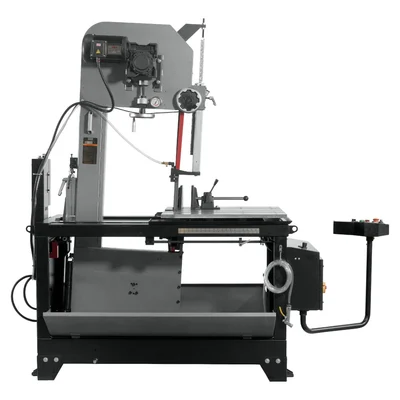

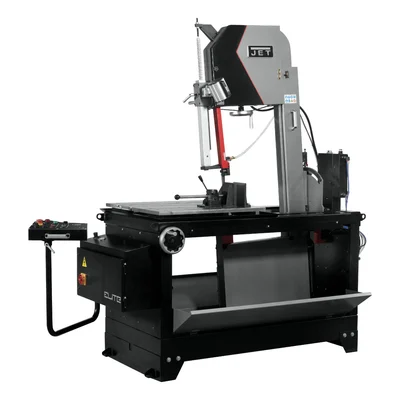

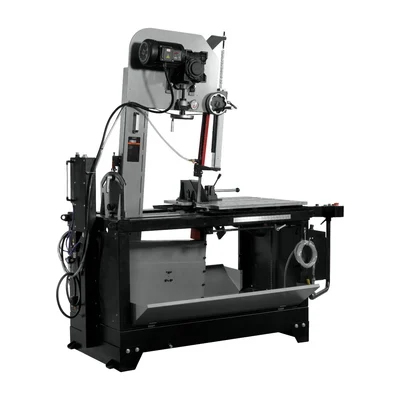

JET Elite 16″ EVS Vertical Tilt Frame Bandsaw
At the heart of every metalworking operation, there is a saw. Saws that are being challenged to cut a wider variety of materials in different ways than ever before. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer and operate more safely at the same time. The Elite EVTBS-16″ EVS Vertical Tilt Frame Bandsaw is the answer to your shops needs.
The 3 degree forward approach angle allows for increased efficiency in cutting structural materials. Inverter drive with speed range of 76-30 SFPM and a Digital Readout to always let you know what speed you are at. The quick action vise saves set up time and can be moved in either the right or left of the blade and fast locking.
Durability is built into the steel frame construction that reduces vibrations and deflection. Safety is a must with CSA/US Certification, the blade is fully guarded, and a strong internal spring allows the operator to safely move the bow and fix at any angle.
Elite saws are the most precise, more durable and safest bandsaws you could ever have in your shop.
Features
Electronic Variable Speed 76-430 SFPM with Digital Readout for FPM

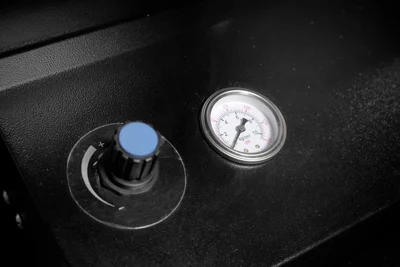

Blade tension gauge helps to ensure the blade is in the correct cutting position
3° forward approach angle for increased efficiency in cutting of structural materials.

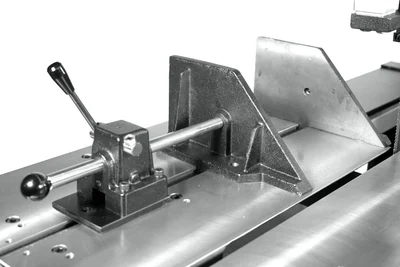

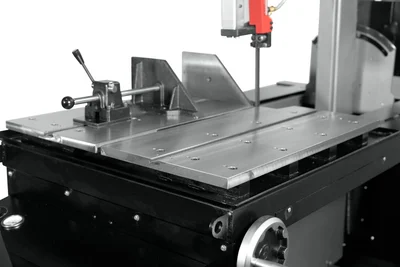

Quick action vise saves set up time and can be moved to either the right or left of the blade and fast locking
Fully adjustable air hydraulic control for bow travel
Heavy-duty steel construction reduces vibration and deflection
Automatic stops can be pre-set to stop advancement and return of the blade
CSA Certified Electrics following strict guidelines and electrical requirements and are certified by the CSA Group
Integrated pressurized wash off hose for easy machine clean up
Auto-shut off switch stops the sawing process

Specs

Weight: 1500 lbs
Dimensions: 95 × 50 × 91 in
Blade Size (In.): 1-1/16 x 0.035 x 168-1/2 4/6T
Blade Guide: Carbide & Roller
Blade Length (In.): 168-1/2
Blade Speed (RPM): 76-430 Variable
Blade Thickness (In.): 0.035
Coolant Pump Motor: 32W
Drive: EVS
Drive Type: Inverter Driven
Maximum Vise Opening (In.): 17-1/2
Miter Angle Range (Deg.): 45 – 90 – 45
Motor (HP): 2HP, 230V,3ph
Overall Dimensions (L x W x H) (In.): 94-1/2 x49-1/8 x 90-1/2
Rectangle at 45 Degrees (In.): 13-1/4 x 16
Round Stock Capacity (Max.) (In.): 16
Table Size (In.): 29-1/2 x 14-3/16
Table T-Slot (In.): 3/4
Throat Depth (In.): 16
Weight (Lbs.): 1408
Work Height (In.): 39-3/8
Reservoir (Gal.): 60 Litter
Round Capacity at 45° Right (in.): 13-1/4
Rectangle Capacity at 45° Left (in.) (HxW): 11-1/2 x 16
Rectangle Capacity at 45° Right (in.)(HxW): 13-1/4 x 13-1/4
Rectangle Capacity at 90° (in.) (HxW): 20 x 16
Round Capacity at 45° Left (in.): 11-1/2
Round Capacity at 90°(in.): 16
Square Capacity at 45° Left (in.) (H x W): 11-1/2 x 11-1/2
Square Capacity at 45° Right (in.) (HxW): 13-1/4 x 13-1/4
Square Capacity at 90° (in.) (HxW): 16 x 16
