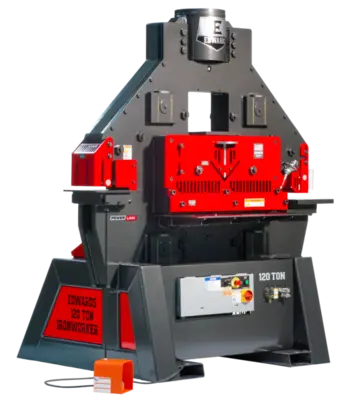

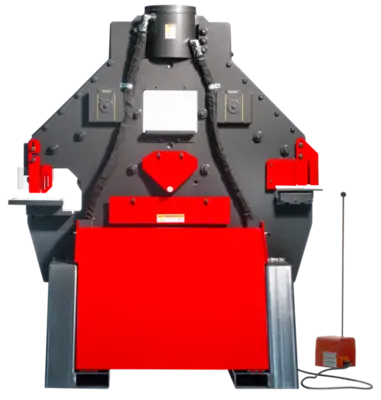

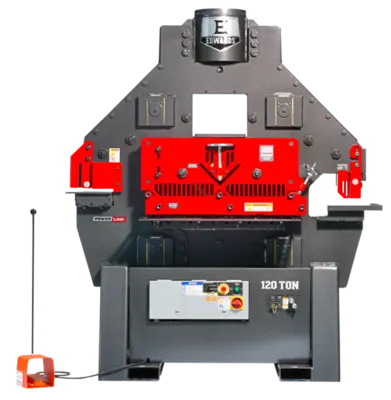

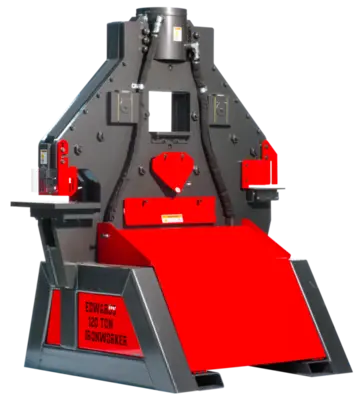

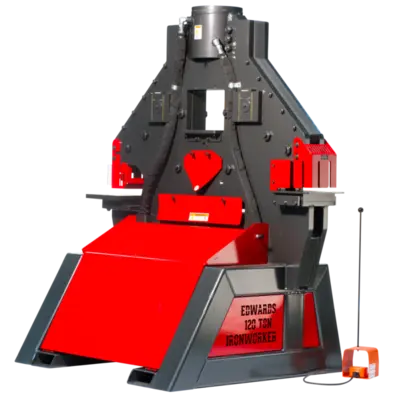

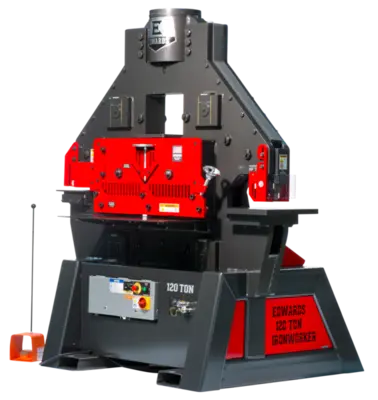

NEW EDWARDS 120
Overview
Features:
Adjustable electric stoke control
Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
ANSI B11.5-1988(02) Compliant Guarding
ETL Certified Controls
Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
Optimized workstation heights for improved efficiency
Punches are easily changeable, long-lasting and available from 1/8″ to 4″ diameters along with square, oblong, hex, metric, and custom shapes
Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specs
Weight: 5500 lbs
Dimensions: 60 × 67 × 87 in
Amps: 12
Angle Shear Max Capacity 1/2: 6 x 6
Angle Shear Max Capacity: 6 x 6 x 1/2
Angle Shear Work Height: 52-1/2
Coper Notcher Max Capacity: 3 x 6 x 1/2
Coper Notcher Work Height: 40
Flat Bar Shear Max Capacity 1: 12
Max Capacity 1/2: 24
Max Capacity: 24
Max Round Capacity: 1-1/4
Flat Bar Shear Max Round: 1-1/4
Flat Bar Shear Max Square: 1-1/4
Flat Bar Shear Rating: 120
Flat Bar Shear Work Height: 33-1/4
Gross Weight: 5856
Hydraulics (GPM): 24
Hydraulics (PSI): Pound per square inch
Hydraulic Pump (GPM): 24
Hydraulic Reservoir (Gal.): Gallon
Motor Amps: 12
Motor (HP): 10 HP 3 ~ 460V
Motor Speed: 1770
Overall Height: 87
Punch Max Capacity: 120 Tons
Punch Open Height: 9-1/8
Punch Rating: 120
Punch Shut Height: 7-1/8
Punch Stroke: 2
Punch Work Height: 9.125
Rating: Ton
Reservoir (Gal.): 17
Shipping Dimensions: 60 x 67 x 87
Valve Pressure (PSI): Pound per square inch
Weight: 5500
