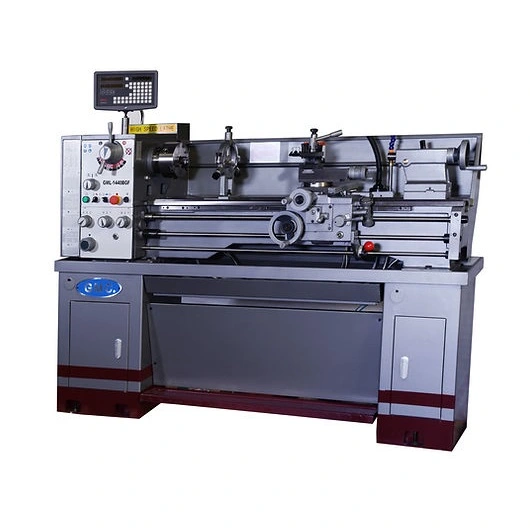

NEW GMC 14

Weight: 1730 lbs
Dimensions: 70 × 35 × 59 in
Brand: GMC
Lathe Capacities: Max. Swing Over Bed – 14”
Max. length of workpiece – 40”
Max. length of cutting – 34”
Max. Swing Over Cross Slide – 8.25”
Center Height – 7”
Distance between centers – 40”
Bed Width – 7.5”
Spindle: Spindle Nose – D1-4 Camlock
Spindle Bore – 1.5”
Spindle Taper Nose – MT5 (Morse Taper #5)
Spindle Taper Sleeve – MT3 (Morse Taper #3)
Range of Spindle Speeds – 70-2,000 RPM
Low Spindle Speeds – 70/115/190/300 RPM
High Spindle Speeds – 460/755/1255/2000 RPM
Steps of Spindle Speed – 8 steps
Feed: Range of Longitudinal Feeds – 0.00168” – 0.11750”/rev.
Range of Cross feeds – 0.00046” – 0.03231” /rev.
Threading: Imperial Threads QTY. / Speed – 56 / 4-112 TPI
Metric Threads QTY. / Speed – 44 / 0.1-7.0 mm
Diametral Pitch threads QTY. / Speed – 32 / 16-112 DP
Module threads – 34 / 0.1 – 1.75 mm
Tailstock: Tailstock Quill Diameter – 1.5”
Tailstock Quill Taper – MT3 (Morse Taper #3)
Tailstock Quill Travel – 4”
Apron: Compound Slide Travel – 4.25”
Cross Slide Travel – 7.25”
Cross Feed QTY. / Speed – 0.014 – 0.380mm / rev
Leadscrew Diameter – 7/8”
Feed Rod Diameter – 3/4"
Max. Cutting Tool – 4 Way Tool Post – 5/8”
Power: Main motor – HP Three Phase
Power (prewired voltage) – 220VAC
Full-Load Current Rating – 12 Amps.
Minimum Circuit Size – 15 Amps.
Coolant pump – 1/16HP, 220V, Single Phase
Dimensions: Net Weight (approx.) – 1,730 LBS
Overall Dimensions – 70”L x 35”W x 59”H
