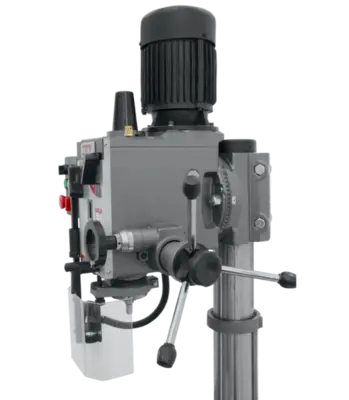

NEW JET GHD-20T
Overview
Features:
Easily accessible table raiser
Head tilts left or right
Heavy-duty design allows a variety of precision drilling and tapping applications
Integrated tapping and reversing controls
Large production table and T-slotted base
Specs
Weight: 700 lbs
Base Dimensions: 26 x 18
Base Work Table: 15-1/4 x 13
Column Diameter: 4-1/2
Distance Column to Spindle: 10
Drilling Capacity Cast Iron: 1-1/2
Drilling Capacity Mild Steel: 1-1/4"
Drills to Center of Circle: Inch
Motor (HP): 2 HP (2 Speed) , 230V, 3Ph
Quill Diameter: 3"
Quill Feed: Manual
Range of Spindle Speeds: 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Distance to Base: 44-5/16
Spindle Distance to Table (Max.): 30-1/2
Spindle Taper: MT-3
Spindle Travel: 5
Style (Type): Geared Head
Table Size (L x W): 21-3/4 x 19-1/2
Table Travel: 25-1/2
Tapping Capacity Cast Iron: 15/16
Tapping Capacity Mild Steel: 15/16
T-Slot Centers: 9
Weight: 700
Work Table Weight Capacity: 275
