NEW JET JDP-20MF
Overview
Features:
1/2″ Dia. external depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Drill chuck and key included
Hinged metal belt and pulley cover
On/off switch located on front of drill press head
Quick adjustment motor mount for rapid changing of spindle speeds

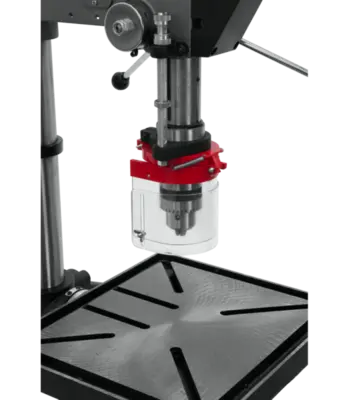

Telescoping safety spindle guard
Specs
Weight: 282 lbs
Dimensions: 58 × 26 × 19 in
Base Dimensions: 13-3/4 x 22-3/4
Base Work Table: 13 x 8-1/2
Column Diameter: 3-3/8
Distance Column to Spindle: 10
Drilling Capacity Cast Iron: 1
Drilling Capacity Mild Steel: 3/4
Drills to Center of Circle: Inch
Motor (HP): 1-1/2 HP, 115/230V, 1Ph
Number of Spindle Speeds: 12
Range of Spindle Speeds: 150 – 4,200
Spindle Distance to Base: 46-3/4
Spindle Distance to Table (Max.): 29-1/8
Spindle Taper: MT-3
Spindle Travel: 4-5/8
Style (Type): Variable
Table Size (L x W): 18-1/2 x 16
Table Travel: 21-1/2
T-Slots Number and Size: 6 and 1/2
T-Slot Centers: 3-1/2
Weight: 282
Work Table Weight Capacity: 80
