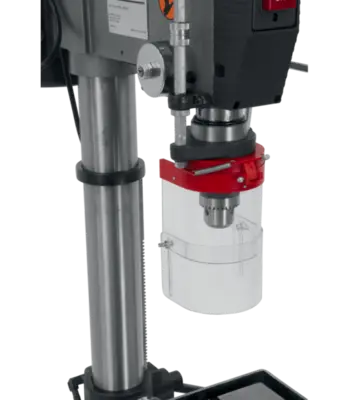

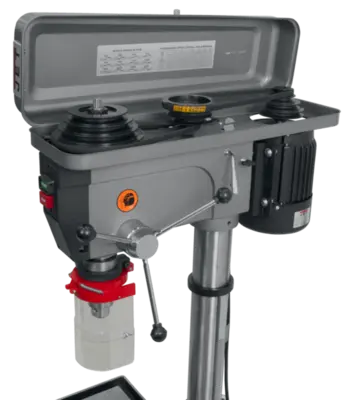

NEW JET J-2550
Overview
Features:
4-3/4″ stroke for deep hole applications
Cast iron head
Constructed to provide a solid base for drilling
Large ground steel column for maximum head and table support
Large production table tilts 45°
Large quill allows greater accuracy
Telescoping safety spindle guard
The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
Specs
Weight: 304 lbs
Dimensions: 56.5 × 26 × 13 in
Base Dimensions: 22-3/4 x 17-3/4
Column Diameter: 3-5/8
Distance Column to Spindle: 10
Drilling Capacity Cast Iron: 3/4
Drilling Capacity Mild Steel: 5/8"
Drills to Center of Circle: Inch
Motor (HP): 1 HP, 115/230V, 1Ph
Number of Spindle Speeds: 12
Range of Spindle Speeds: 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200
Spindle Distance to Base: 43-1/2
Spindle Distance to Table (Max.): 24
Spindle Taper: MT-3
Spindle Travel: 4-3/4
Style (Type): Belt Drive
Table Size (L x W): 18-11/16 x 16-3/4
Table Travel: 21-1/2
T-Slots Number and Size: 3 and 1/2
T-Slot Centers: 4
Weight: 304
Work Table Weight Capacity: 66
