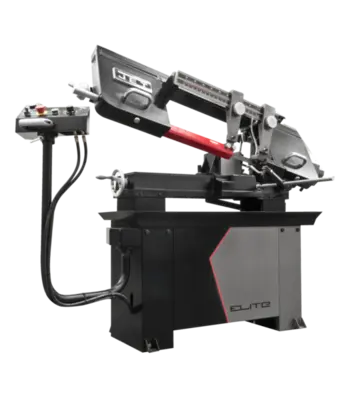

NEW JET EHB-8VS
Overview
Features:
Adjustable Material Stop
Automatic blade shut off switch stops the sawing process
Built-in, self-propelled chip brush prevents chip build up in blade guides
Integrated pressurized wash hose for easy machine cleaning
Large handwheel with blade tensioning gauge accurately measures blade pressure
Quick positioning vise for clamping of materials
The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions
To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 32 in.
Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
Variable speed drive train allows operator to fine tune the blade speed fast and easily
Specs
Weight: 770 lbs
Dimensions: 67 × 28.5 × 52 in
Blade Size: 1 x 0.35 x 114-1/2
Amperage Draw @ 115V 1Ph: 23
Bed Height: 32
Blade Length: 114-1/2
Blade Speeds (SFPM): 82 – 310
Blade Speed (SFPM): 82-310
Blade Wheel Diameter: 11-5/8
Drive: Variable Speed
Electrics: 1-1/2HP, 115/230V, 1-Phase
Gross Weight: 770
Head Movement (Deg.): 0
Motor (HP): 1-1/2 HP, 115/230V, 1Ph
Net Weight: Pound
Prewired Voltage (V.): 115
Rectangle at 45 Degrees: 8 x 8 or 2 x 9-1/2
Rectangle at 90 Degrees: 13 x 5-1/4 / 13-1/4 x 2
Round at 45 Degrees: 8
Round at 90 Degrees: 8
Shipping Weight: Pound
Square at 45 Degrees: 8 x 8
Vise Swivels (Deg.): 45
Weight: 770
