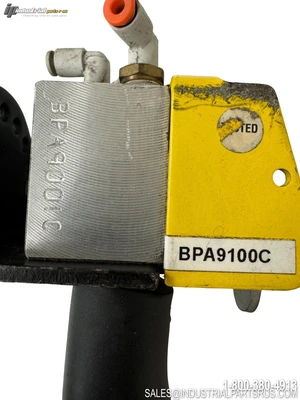

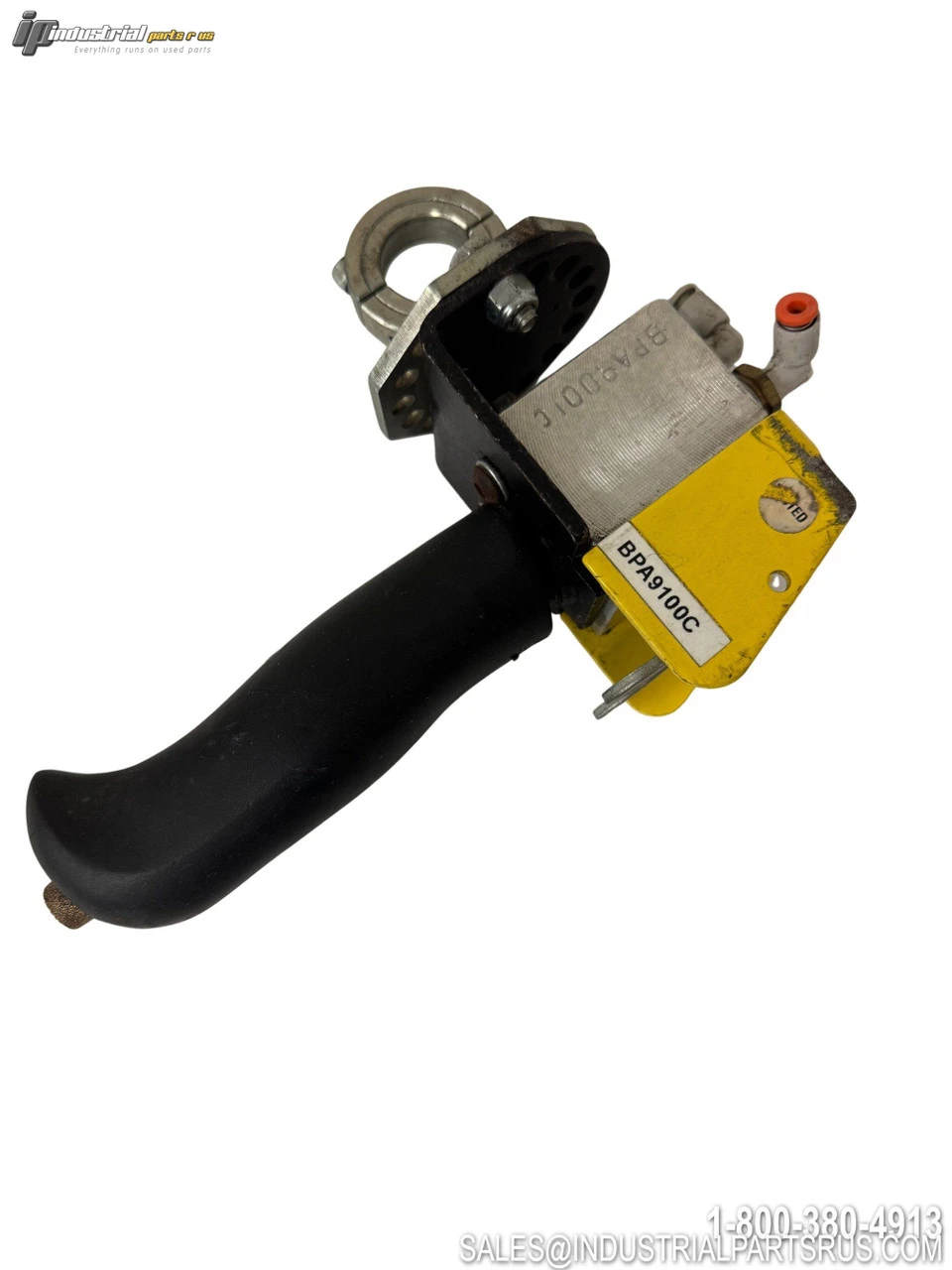

USED KNIGHT BPA9100C

The Knight BPA9100C is a pneumatically operated control handle from Knight Global's BPA Series, designed for ergonomic operator comfort in industrial material handling applications. It features two (2) thumb levers and one (1) BPA9001 2-button valve block with 3-way, 2-position spring return valves, used for sending common pilot signals to air balancers, lifts, and similar pneumatic systems. The handle includes horizontal and vertical adjustment capability, a BPD1125 ergonomic soft grip, standard lever guards, and comes with pneumatic fittings included. This model has been discontinued by the manufacturer.
Specification
Value
Brand
Knight (Knight Global)
Model / Part Number
BPA9100C
Product Series
BPA9100 Series
Description
Pneumatic Control Handle, 2-Button w/ 3-Way Valve
Number of Thumb Levers
2
Valve Block Model
BPA9001 (2-Button)
Valve Type
3-Way Pilot Signal Valve
Valve Block NPT Port Size
1/4 in. [6.3 mm]
Ergonomic Grip Model
BPD1125
Pneumatic Fittings
Included
Adjustment
Horizontal and Vertical
Mounting
Fixed Surface or Pendant; 360° Rotational Positions
Construction
Steel
Lever Guards
Standard (prevents inadvertent lever depression)
Rebuildable
Yes
Weight
2.56 lbs
Product Status
Discontinued by Manufacturer
Packaging
Sold Individually
Application
Air Balancers, Lift Assists, Material Handling Systems
We warranty all items for 30 days from date of purchase.
