USED KNIGHT 88882M

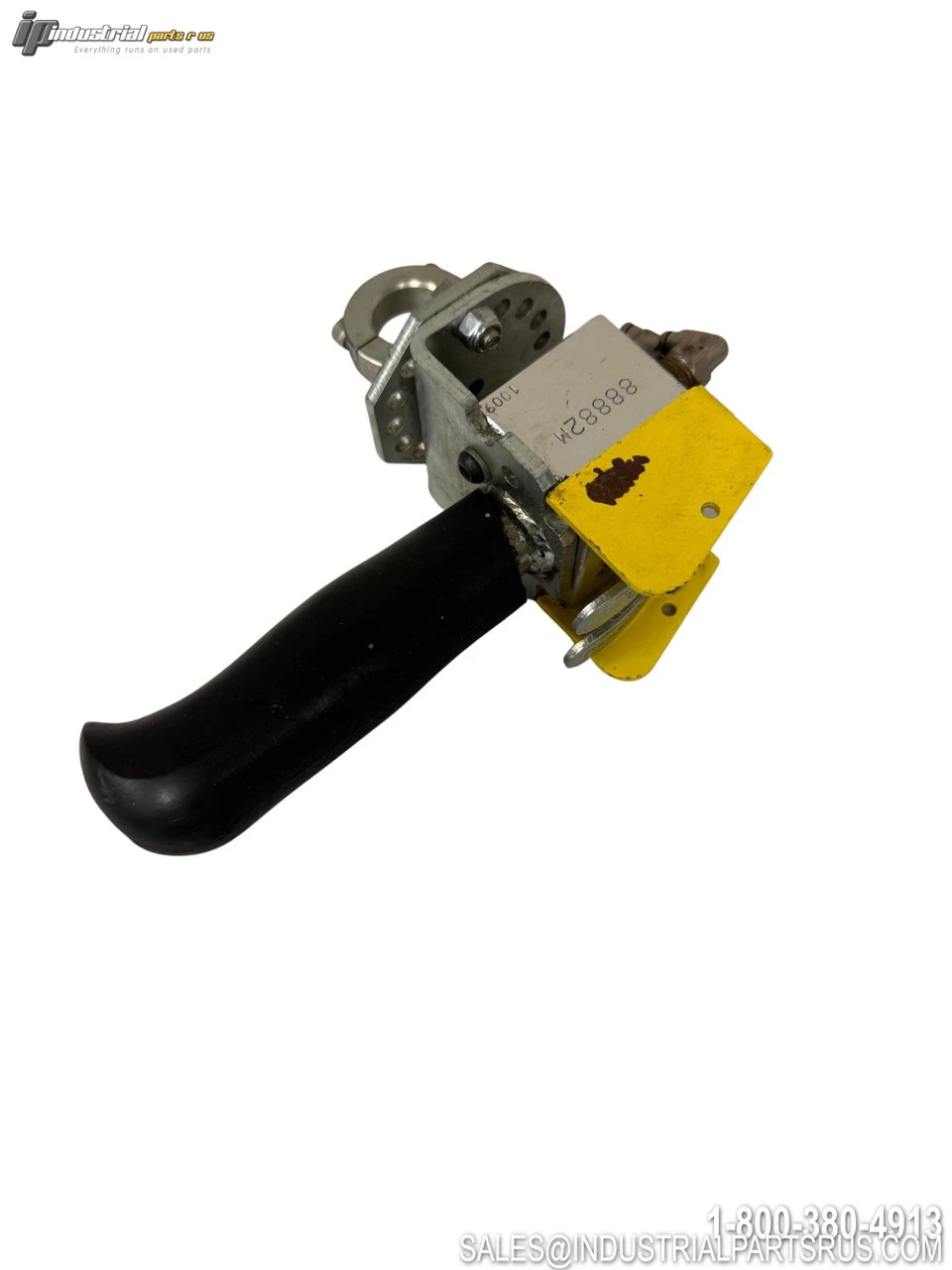

The Knight Global 88882M is a pneumatically operated control handle (pendant) designed for use with pneumatic air balancers and lift assist systems. It features thumb levers and a trigger lever configuration for precise up/down load control, and is constructed with a steel body and ergonomic soft-grip handle. The handle can be mounted to a fixed surface or hung as a separate pendant, making it versatile for a wide range of material handling applications.
Specification
Value
Brand
Knight Global
Model / Part Number
88882M
Reference Number
D535446
Product Type
Pneumatic Control Handle / Pendant
Control Configuration
2 Thumb Buttons + Trigger Lever (3 total controls)
Control Type
Pneumatic
Valve Type
3-Way Valves (pilot signal)
Valve Block NPT Port Size
1/4 in. (6.3 mm)
Mounting Type
Fixed surface mount or hanging pendant; 360° rotational positions
Handle Material
Steel Construction with Ergonomic Soft-Grip
Lever Guards
Standard lever guards included (prevent inadvertent actuation)
Lever Colors
Color-coded (UP = Green, DOWN = Red standard)
Pneumatic Fittings
Included
Air Supply Requirement
Non-lubricated, clean/dry air
Application
Pneumatic air balancers, lift assists, material handling
Rebuildable
Yes
CE Compliant
Yes (Knight Global product line)
We warranty all items for 30 days from date of purchase.
