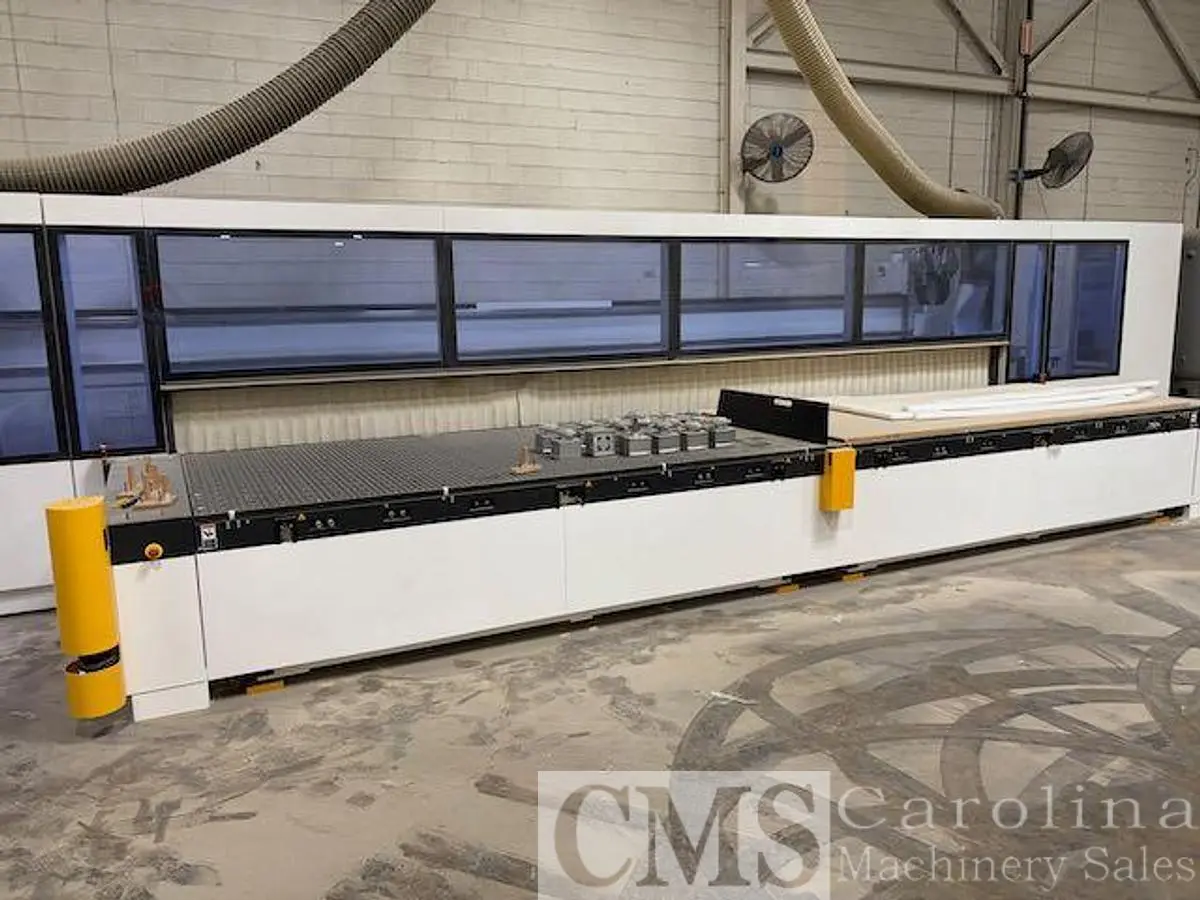

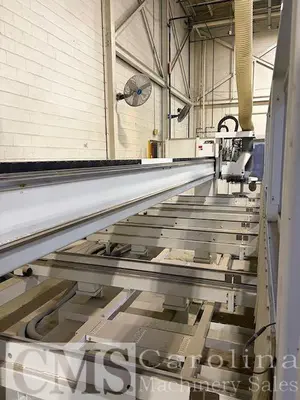

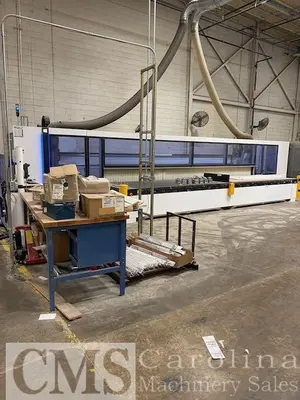

USED 2022 HOMAG CENTATEQ T 300 TWIN 5X10 TABLE CNC ROUTER

The CENTATEQ T-300 series of high-performance processing centers was created from an innovative concept that offers new technology with optimized interaction between components, while ensuring maximum production.
This BM M 410 processing center features rigid gantry-frame construction over two (2) moving matrix grid type vacuum tables, and includes an innovative computer numeric control (CNC). This design offers efficient, cost effective, high-speed batch size production with the ability to process a variety of workpieces on the same machine with minimum down time. And with Intelligent Process Optimization (IPO), the two independent spindles are capable of processing two (2) different workpieces simultaneously, as well as two (2) of the same part in synchronous mode.
The customers product changed and they no longer need this machine. It has very low hours and has been will taken care of.
CENTATEQ T-300

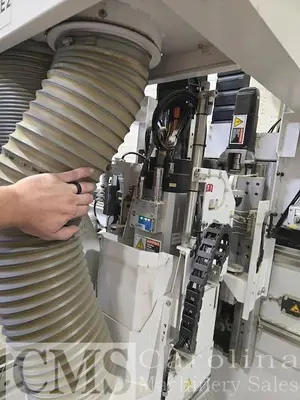

Vertical Router Spindles -11 /13.2 kW
VK #7 439 (2 of 2)
independent router spindles mounted on separate tooling plates
tool holder: HSK63
tool changing: automatic
direction of rotation: right hand / left hand
speed: stepless 1,500 - 24,000 rpm programmable
drive: current-controlled 3-phase motor
maximum capacity at the tool: up to 11/13.2 kW (14.75/17.7 HP) in continuous and intermittent operation (S1/S6)
full rated output: n = 12,000 to 18,000 rpm
ool weight, including chuck: 6 kg maximum
tool length from motor spindle lower edge: 200 mm maximum
tool diameter: 180 mm maximum
spindle lubrication: permanent grease lubrication
cooling: air cooled

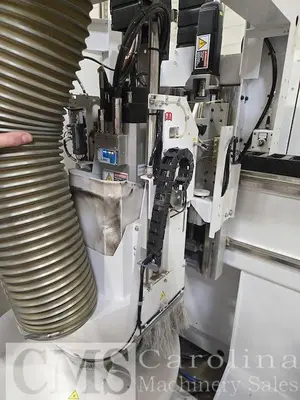

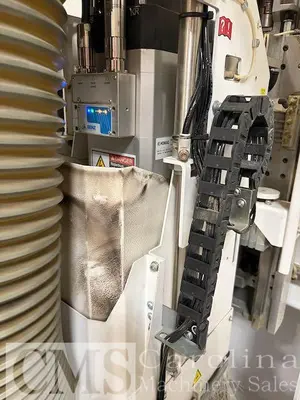

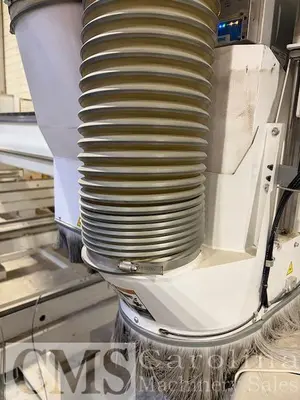

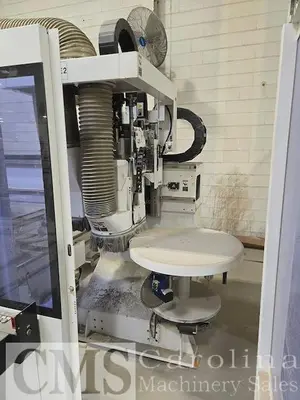

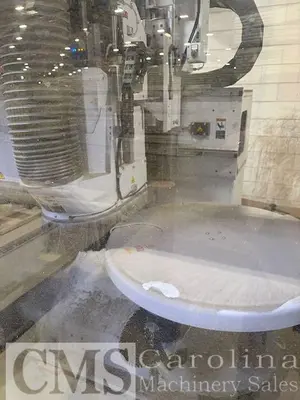

Blowing-Off Nozzles for Suction Hood VK #7 496 (2 of 2)
dust suction hood can be adjusted in height by three (3) stages
to improve effectiveness of dust collection system, such as for NBM
four (4) manually adjustable compressed-air nozzles, mounted under the dust collection hood, circularly arranged around the router spindle, individually selectable
maximum volume per nozzle would be 300 NUmin. (10.6 CFM) in case of permanent operation; maximum of two (2) nozzle used at a time
note: the compressed air consumption of the machine (and the entire plant) is increased when using the blowing-off nozzles

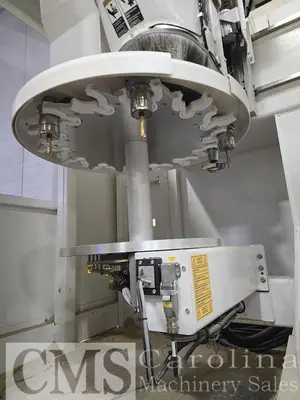

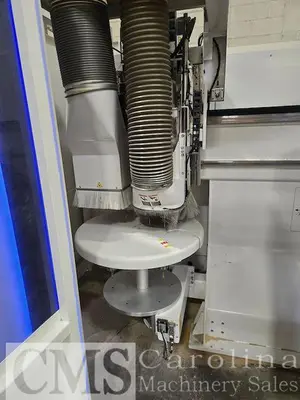

14 Position HSK-63F Plate-Type Tool Changers D=130 Below VK #7 455 (2 of)

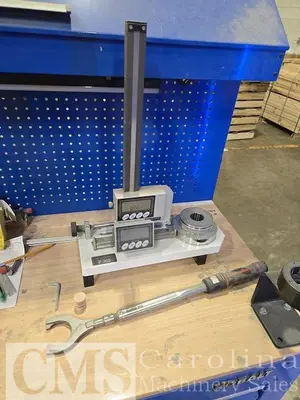

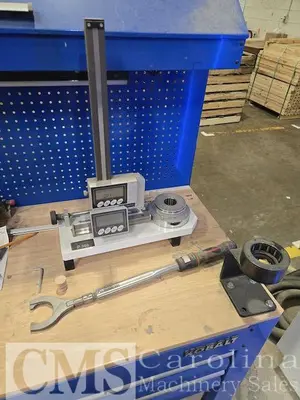

Tool Length Control VK #7 427 (2 of 2)
measuring system for length control of router shaft tools in the machine (i.e., no com bi- /step- I profile tools or units)
for maximum tool diameter of 80 mm
for tool length minimum of 100 mm including tool chuck
after interchanging of the tool from the tool changer, a length measuring routine will be effected and compared with the tool database
by a woodWOP program, single tools can be selected for measuring
the lead distances depend on the collision measuring
alternate (pendulum) operation is limited

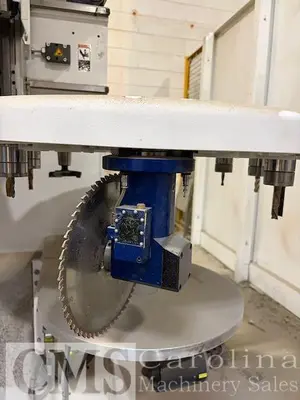

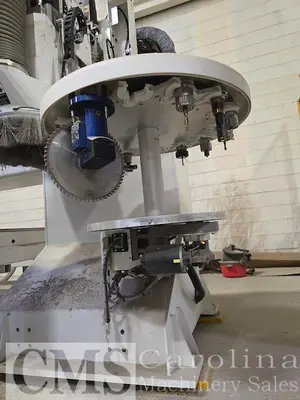

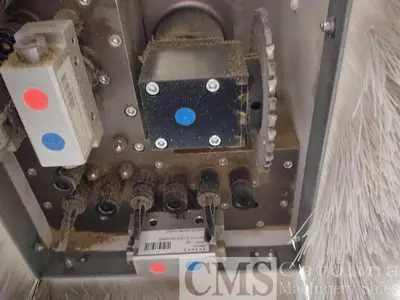

1 a-Spindle Boring Head: 12 Vert., 6 Horiz., 0°/90° Saw VK#7477 (2of 2)
one (1) frequency-controlled 2.3 kW motor
programmable from 1,500 to 7,500 rpm max. for quick processing or for boring small diameter holes
with 12 High-Speed Vertical Boring Spindles
twelve (12) spindles with up to a maximum of 35 mm (1-3/8") hole diameter (for some positions)
individual spindle selection
vertical spindles with "quick change" system for reduction of set-up time
boring spindles are locked in the retraction stroke in order to reach the programmed drill depth reliably
for vertical drilling with a stroke of 60 mm (2-11/32")
arrangement of the spindles in L-Shaped Arrangement:
seven (7) spindles in the X-direction
six (6) spindles in the Y-direction
distance between spindles: 32 mm (1-1/4") pitch
drill length: 70 mm (2-3/4")
shank diameter: 10 mm
drill depth: 38 mm maximum
drill depth with special drill and restrictions of saw processing and horizontal drilling: 55 mm maximum
with clamping surface and adjusting screw
rotation direction: right/left-hand rotation, alternately
with 6 Horizontal Boring Spindles
4 (2 x 2) spindles: pitch 64 mm; 2 in each X-direction (+X/-X)
2 (1 x 2) spindles: 1 in each Y-direction (+Y/-Y)
drill diameter: maximum 20 mm
shaft diameter: 10 mm
total length of drill: 70 mm
drilling depth: maximum 38 mm
drilling height Z-direction: 38 mm from upper workpiece edge
with clamping surface and adjusting screw for Weldon chuck
direction of rotation: right hand / left hand (alternating)
with Grooving Saw - 0°/90° Indexing
saw blade diameter: 125 mm diameter
saw blade width: 5 mm maximum
cutting depth: 30 mm maximum
cross section of groove: maximum 70 mm2
the saw mounting arbor is 30 mm diameter with four (4) M5 countersunk head screws on a 48 mm (LL) bolt circle
direction of rotation: right-hand rotation
includes separate Z-axis module and separate dust hood
supplied without tools

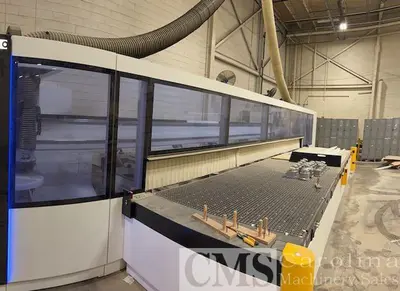

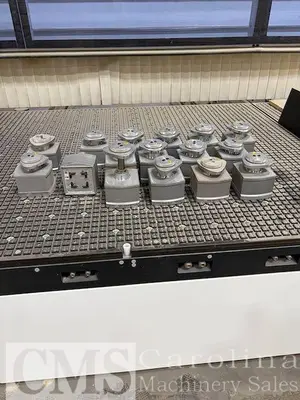

Twin Cross-Grooved Matrix Grid Vacuum Tables "R"
cross-grooved, high-pressure laminate (HPL) vacuum tables prepared for inserting a rubber sealing gasket or a flexible vacuum riser pod for putting on fixtures and panels
the grid is machined on a 30 mm pitch, with the width and depth of the cross grooves of 7 mm
distance between vacuum ports in the table surface is 120 mm
integrated single-circuit vacuum system, divided into left table and right table, supplied via one (1) 4" vacuum port
double occupation and pendulum operation to increase productivity
2-stage vacuum monitor for processing mode and spoil-board calibration
four (4) plug-type connections per table with single circuit (1-way) compressed air system, for connecting pneumatic clamping devices
two (2) plug-type connections per table for vacuum, for connecting to fixtures
includes 50 Meters of 8 mm (5/16") diameter gasket
workpieces with extreme dimensions must be clamped using fixtures or mechanical clamping devices
when using processing units, a certain maximum clamping height is to be considered
the machine's zero point is placed at the front, left side
workpieces are fed into the machine manually from the front side
supplied without fixtures and clamping devices
Vacuum Guiding System - 2000 M3/H for R-Table VK #0976 (1 of)
extension of the standard vacuum system to:
1 x 2000 m3/h for single occupation (total table surface)
enables the use of high-volume vacuum pumps, e.g., for NBM
increases vacuum connection cross-section size to 2 x 4" diameter
arger vacuum pump(s) must be sized according to the desired processes

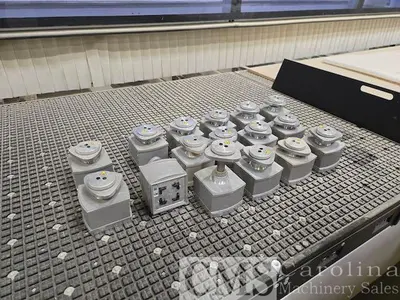

Reference Stops for Matrix Table VK #7302 (16 of)
four (4) front stop pins per table
four (4) edge-mounted (R & L) stop pins per table
stop pins selectable in groups
electro-pneumatic control; and control of final position
stroke of 60 mm (2-11/32")
position of stop( s) per the Technical Data sheet

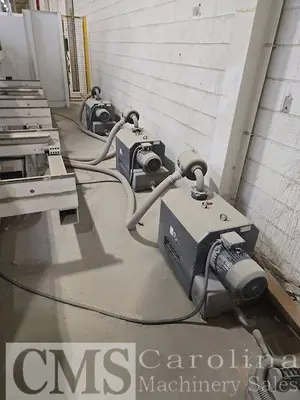

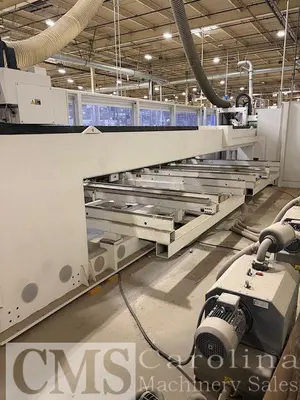

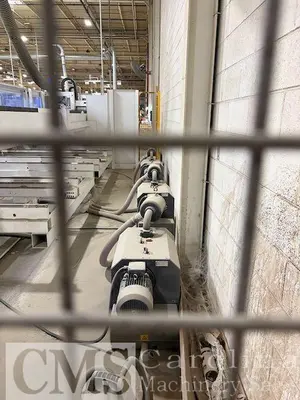

Vacuum System: with a Total Capacity of 1035 M3 /hr@ 60 Hz VK #7094 (1 of)
includes three (3) low-wear and energy-efficient Busch rotary claw type vacuum pumps with a nominal capacity of 345 M3/hr@60 Hz each
if more than one (1) vacuum pump is connected, each pump can be individually activated by a softkey, which enables an energy efficient vacuum output

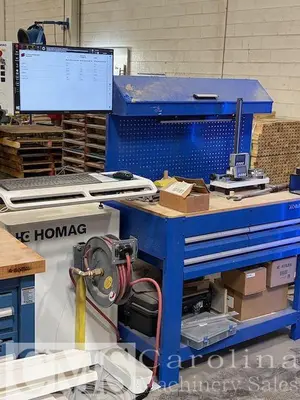

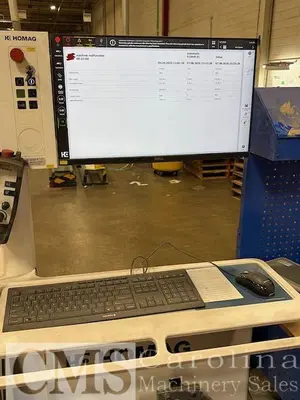

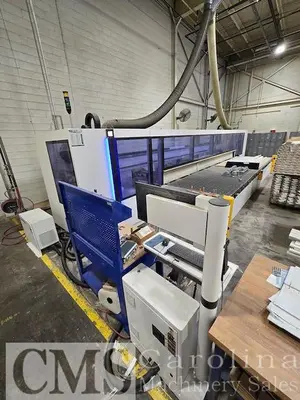

Moveable User Terminal with 10 Meter-Long Cable VK #6499 (1 of)
This feature moves the operator panel from the fixed switch cabinet to a moveable operator terminal

Power Control PC87 powerTouch – Hardware

operating panel with 24" full HD multi-touch display in widescreen format
PLC control according to International Standard IEC 611 31
modern industrial PC with Windows® 10 operating system
English PC keyboard
back-up manager and storage medium for comfortable data back-up
USB connection
manual operation tethered for run-in mode:
specified according to IP65, and includes and integrated magnet for flexible mounting
the following functions can be selected:
run-in mode
feed start I stop
emergency switch with protection
digital drive technology
decentralized, digital field bus system
network connection Ethernet via additional network card & software. Within the machine or machine line, HOMAG uses the data networks with the identification 192.2.x.x or 192.1 68.1 .x. If the customer's network also uses this identification, then the customer has to provide a router to avoid network conflicts
intelliServiceNet - the new innovative TeleService connection:
remote diagnosis via internet for a quick, low-cost and reliable remote service
invoicing according to separate teleservice contract
access to the internet is to be provided by the customer (Port 443 HTT PS)
registration of the machine, as well as activation of the function
"intelliServiceNet", is required under www.tapio.one
in order to obtain the full function range, the machine has to be "tapio connected"
uninterruptible power supply (UPS) protects the computer from damage in case of mains interruption, overloads, and short circuit

tapioReady

machine is prepared to communicate with tapio, which is a functionality which gives the customer an opportunity to use tapio's innovative digital products (optional) and to be ready for the future
the offers and services of the tapio platform can only be used after the customer registers for this and activates the corresponding functionalities (available at www.tapio.one)

Operating Manuals and Documentation: English VK #8322 (1 of)
operating manuals and maintenance manuals on DIN A4 paper and data media
spare parts designations on data media
wiring diagram on data media in German and English
help texts are integrated into the machine control
operating system dialogues in English
available for delivery at the same time as machine's delivery

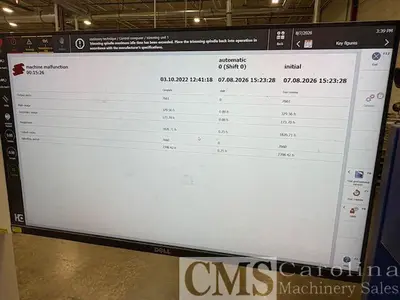

Capture and Evaluate Machine Data - MMR Basic VK #0780 ( 1 of)
integrated counters and predefined maintenance intervals always inform the machine operator about necessary maintenance works in due time
through the need-based maintenance, the availability of the machine increases, and the downtimes of the machine is significantly reduced
besides the maintenance data, the amount of produced workpieces and the total run time of the machine is gathered
Therefore, information about the productivity is constantly available

Convenience Package Operation - SaveScan VK#0706 (1 of)
allows the comfortable and efficient operation directly at the machine
two (2) push buttons at the machine bed allow the program start
two (2) laser scanners realize the person( s) in the safety area of the machine; the tables move slower if an operator stays in the safety area
two (2) light barriers at the table level avoid the climbing over
operation of the tool changer from the front over door

woodWOP Office Basic Software (Single-Seat License) VK #0968 ( 1 of)
user-friendly, completely menu-guided operating interface
3D view of the panel, processes, consoles, and clamping devices
contour creation by integrated contour programming
predefined processing macros for routing, sawing, and drilling at any angle (feasibility depends on the machine's equipment)
dimensions are input as absolute values or as variables
interactive setting of drillings and contour lines with the mouse
inclusive CAD Plug-In to create the CAD contours
includes automatic suction pod suggestion with 3D view
includes engraving of single line fonts and double line fonts
includes residual surface cutting for automatic recognition of residual surfaces between a workpiece and the raw panel and generation of the routing paths
Post Processor and Tool Data Base Editor:
includes one (1) post processor for generation of programs in DIN 66025 for one (1) machine at one (1) production location
administration of tools and tool data
simple generation of own profile tools, including a 3D tool generator
DXF Import Basic:
includes woodWOP DXF Import Basic Interface to take over drawing data from CAD systems in DXF format
By the use of several fixed layer denominations, processes can be automatically generated from the DXF drawing


Software System Requirements and Notes
VK #6799 (1 of)
􀀅System Requirement’s for the Customer-Provided PC:
operating system: Windows® 7, 8, or 10, 64-Bit system required (for PC87)
processor: at least Dual Core (Quad Core recommended)
main storage: at least 2 GB RAM
graphic card: with at least 1 GB memory and OpenGL 3.3 support
when using Intel Onboard graphic cards, at least GMA X4500; better is Intel HD graphic card

Electric Equipment
480 Volt transformer provided
witch cabinet executed according to U.L. specifications
switch cabinet integrated in machine frame
installed according to European Standard EN 60204-1
permissible environmental temperature is 41° F to 104° F; if temperature will exceed 95° F on a regular basis, an optional air conditioner for the switch cabinet will be required
if air humidity will exceed 65%, an optional air conditioner for the switch cabinet will be required
includes a potential-free contact for controlling a dust collection gate provided by the customer
the machine is not suitable for connection to a Residual-Current Device (RCD) due to operational leakage currents
instead, the recommendation is to route the supply in such a way as to prevent ground faults or short circuits ( e.g., in accordance with DIN VDE 0100-520/521.11)
