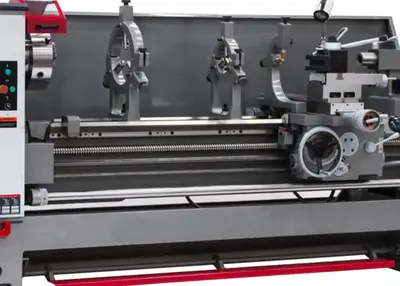

NEW JET GH-2680ZH

Weight: 8514 lbs
Dimensions: 144 × 46 × 77 in
Bed Construction: Cast Iron
Bed Gap: 8
Carriage Travel: 72-1/2
Compound Slide Travel: 5-1/2
Coolant Pump Motor: 1/8
Diametral Pitch: 24
Distance Between Centers: 80
Drive: Geared Head
Follow Rest Capacity: 25/32 – 3-15/16
Gross Weight: 9251
Input Power: 230/460V, 3Ph
Length of Gap: 8
Max Tool Size: 1-1/4 x 1-1/4
Motor Amps: 25.4/12.7
Motor (HP): 10 HP, 230/460, 3 Ph
Motor Phase: 3
Motor Power (HP): 10
Motor Voltage (V.): 230/460
Net Weight: Pound
Number of Inch Threads: 48
Longitudinal and CrossRates: 65
Number of Metric Threads: 22
Number of Spindle Speeds: 12
Prewired Voltage (V.): 230
Range of Cross Feeds (IPR): .010 – .0404
Range of Inch Threads (TPI): 2-30
Range of Longitudinal: .0023 – .0937
Range of Metric Threads: 1 – 14
Range of Spindle Speeds: 36 – 1,600
Shipping Dimensions: 138 x 43 x 57
Size: 26 x 80
Spindle Bore: 4-1/8
Spindle Mount: D1-8
Spindle Taper with Sleeve: MT-5
Steady Rest Capacity: Small 25/32 – 4-29/32, Large 3-15/16 – 9-7/16
Style (Type): Engine – Large Spindle Bore
Swing Over Bed: 26
Swing Over Cross Slide: 16-1/2
Swing Through Gap: 34
Tailstock Spindle Travel: 6"
Taper in Tailstock Spindle: MT-5
Type: Large Spindle Bore Engine Lathe
Weight: 8514
Width of Bed: 16
Wiring Remarks: Additional Fee required to rewire to 460V
