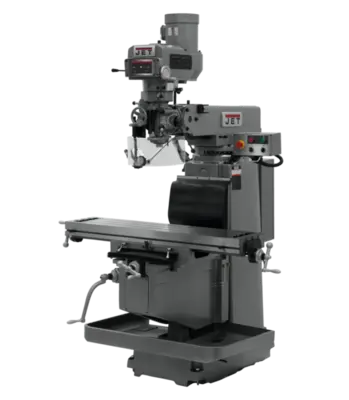

NEW JET JTM-1254RVS
Overview
Features:
12.1″ High resolution display (1024 x 768) with 3D graphics
3-D Contouring, ability to import and run G-code files from CAD/CAM programs
Adjustable gibs throughout
Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
Available offline software
Estimated run time feature
Jog Control allows table movement, quickly from one location to another – using one axis at a time or any two axes simultaneously
Three Precision ground t-slots
Two 115V outlets on electrical box for Powerfeeds only
USB + Ethernet compatible
Specs
Weight: 3696 lbs
Dimensions: 92.125 × 79.875 × 104.25 in
Column Width: 14-1/4
Max Distance Spindle to Table: 23
Motor (HP): 5HP, 230/460V, 3Ph
Power Draw Bar: Pneumatic
Quill Diameter: 4-1/8
Quill Down Feed Rates (IPR): .0015 – .003 – .006
Range of Spindle Speeds: 80 – 3,800
Saddle Width: 25-5/8
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): CNC
Table Cross Travel: 15-1/3
Table Size (L x W): 12 x 54
Travel of Knee: 19-1/4
Travel of Ram: 25
T-Slot Centers: 2-1/2
Weight: 3696
Work Table Weight Capacity: 925
