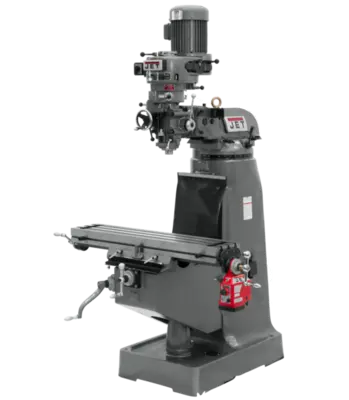

NEW JET JTM-1

Illinois, United States
At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.
Overview
Vertical Mills

The JTM-1 Mill With X-Axis Powerfeed has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you’ve come to expect, all backed by the industry-leading JET Two Year Warranty.
Features:
Heavy duty splined motor drive
Internal coolant tank built into base for use with coolant system (Coolant pump not included)
Large Diameter quill is chromed
One shot lubrication system
Precision bored and honed milling head
Precision hardened and ground ways
Satin chrome finished dials
Tolerance test sheet included

Specs

Weight: 2200 lbs
Dimensions: 66 × 56 × 72 in
Collet Capacity: 1/8 – 7/8
Max Distance Spindle to Table: 17-1/2
Motor (HP): 2 HP, 230V 3ph
Number of Spindle Speeds: 16
Powerfeed: X-Axis
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 – .003 – .006
Range of Spindle Speeds: 80 – 5,440
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Step Pulley R8
Table Cross Travel: 12-1/2
Table Longitudinal Travel: 20-2/7
Table Size (L x W): 9 x 42
Travel of Knee: 14-1/2
Travel of Ram: 13-3/8
T-Slot Centers: 2-1/2
Weight: 2200
Work Table Weight Capacity: 550
