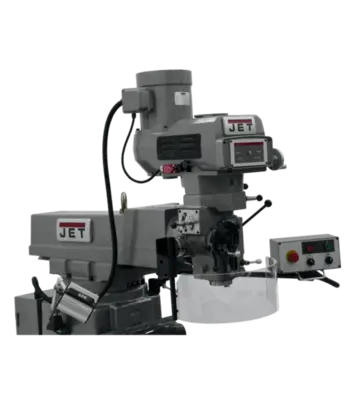

NEW JET JTM-1254VS
Overview
Features:
Adjustable gibs throughout
Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
Certified Meehanite® castings
Dual locks on all moveable surfaces
Precision bored and honed milling head
Precision hardened and ground ways and table
Quick nut for spindle feed
Spindle Brake for rapid stopping of the spindle
Three Precision ground t-slots
Three-stage power downfeed with automatic stop
Specs
Weight: 3969 lbs
Dimensions: 92.125 × 79.875 × 104.25 in
Max Distance Spindle to Table: 23
Motor (HP): 5HP, 230/460V, 3Ph
Quill Diameter: 4-1/8
Quill Down Feed Rates (IPR): .0015–.003–.008
Range of Spindle Speeds: 80 – 3,800
Saddle Width: 25-5/8
Spindle Taper: NST #40
Spindle Travel: 5
Style (Type): Variable Speed NT40
Table Cross Travel: 15-1/3
Table Longitudinal Travel: 33-7/8
Table Size (L x W): 12 x 54
Travel of Knee: 19-1/4
Travel of Ram: 25
T-Slot Centers: 2-1/2
Weight: 3969
Work Table Weight Capacity: 925
