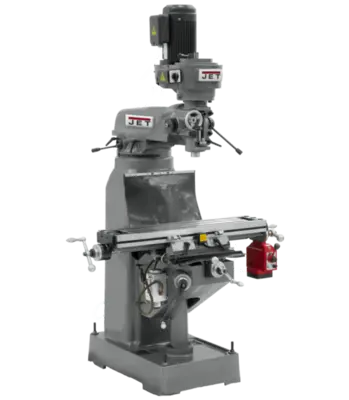

NEW JET JTM-1
Overview
Features:
Heavy duty splined motor drive
Internal coolant tank built into base for use with coolant system (Coolant pump not included)
Large Diameter quill is chromed
One shot lubrication system
Precision bored and honed milling head
Precision hardened and ground ways
Satin chrome finished dials
Tolerance test sheet included
Specs
Weight: 2200 lbs
Dimensions: 69 × 59 × 72 in
Collet Capacity: 1/8 – 7/8
Max Distance Spindle to Table: 17-1/2
Motor (HP): 2 HP, 230V 3ph
Number of Spindle Speeds: 16
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 – .003 – .006
Range of Spindle Speeds: 80 – 5,440
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Step Pulley R8
Table Cross Travel: 12-1/2
Table Longitudinal Travel: 20-2/7
Table Size (L x W): 9 x 42
Travel of Knee: 14-1/2
Travel of Ram: 13-3/8
T-Slot Centers: 2-1/2
Weight: 2200
Work Table Weight Capacity: 550
