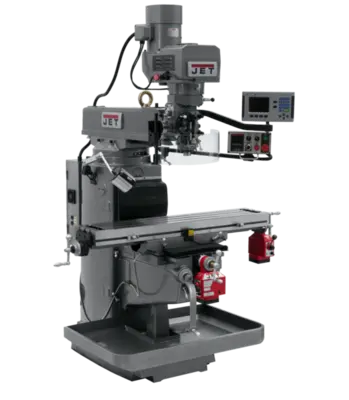

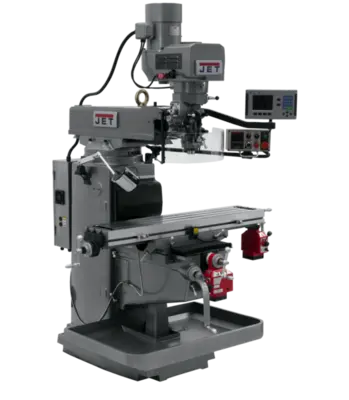

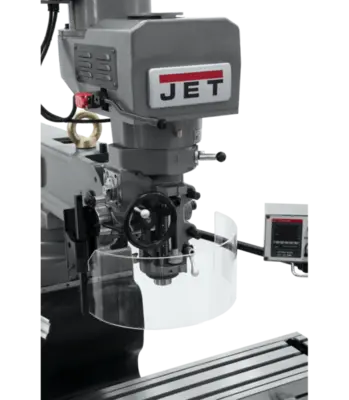

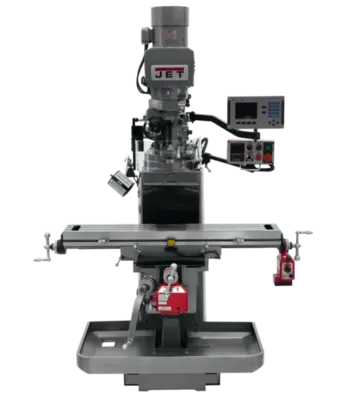

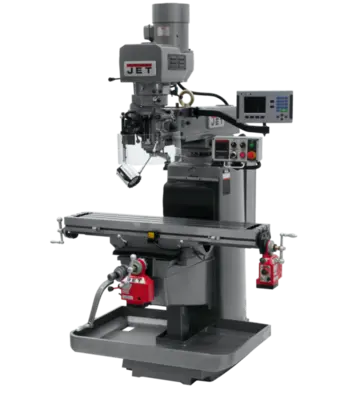

NEW JET 1050EVS2/230
Overview
Features:
Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
Dual locks on all moveable surfaces
Spindle head is internally cooled extending bearing, belt and motor life
Swing away control box houses an e-stop and puts all controls at the operators fingertips
Swing away safety shield
Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
Specs
Weight: 2860 lbs
Dimensions: 66 × 63 × 87 in
Collet Capacity: 1/8 – 7/8
Column Width: 20
Inverter Type: Delta, B
Max Distance Spindle to Table: 20-3/4
Motor (HP): 3 HP, 230V, 3Ph
Number of Axis: 2
Powerfeed: X and Y-Axis
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 – .003 – .006
Range of Spindle Speeds: 60 – 4,500
Saddle Width: 11-1/2
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): EVS
Table Cross Travel: 14-3/4
Table Longitudinal Travel: 29-7/8
Table Size (L x W): 10 x 50
Travel of Knee: 16-1/8
Travel of Ram: 15-7/8
T-Slot Centers: 2-1/2
Weight: 2860
Work Table Weight Capacity: 840
