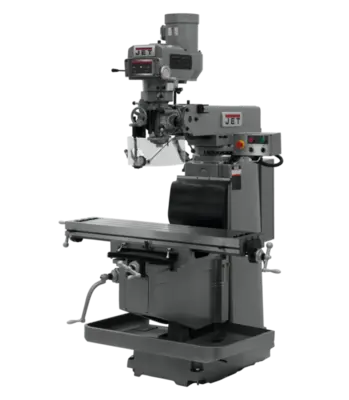

NEW JET JTM-1254RVS
Overview
Features:
Adjustable gibs throughout
Dual locks on all moveable surfaces
Heavy-duty spindle brake
Precision bored and honed milling head
Precision hardened and ground ways and table
Spindle Brake for rapid stopping of the spindle
Three Precision ground t-slots
Three-stage power downfeed with automatic stop
Two 115V outlets on electrical box for Powerfeeds only
Specs
Weight: 3969 lbs
Dimensions: 92.125 × 79.875 × 104.25 in
Collet Capacity: 1/8 – 1
Column Width: 14-1/4
Max Distance Spindle to Table: 23
Motor (HP): 5HP, 230/460V, 3Ph
Powerfeed: X-Axis
Power Draw Bar: Pheumatic
Quill Diameter: 4-1/8
Quill Down Feed Rates (IPR): .0015–.003–.008
Range of Spindle Speeds: 80 – 3,800
Saddle Width: 25-5/8
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Variable Speed R8
Table Cross Travel: 15-1/3
Table Longitudinal Travel: 28-1/4
Table Size (L x W): 12 x 54
Travel of Knee: 19-1/4
Travel of Ram: 25
T-Slot Centers: 2-1/2
Weight: 3969
Work Table Weight Capacity: 925
