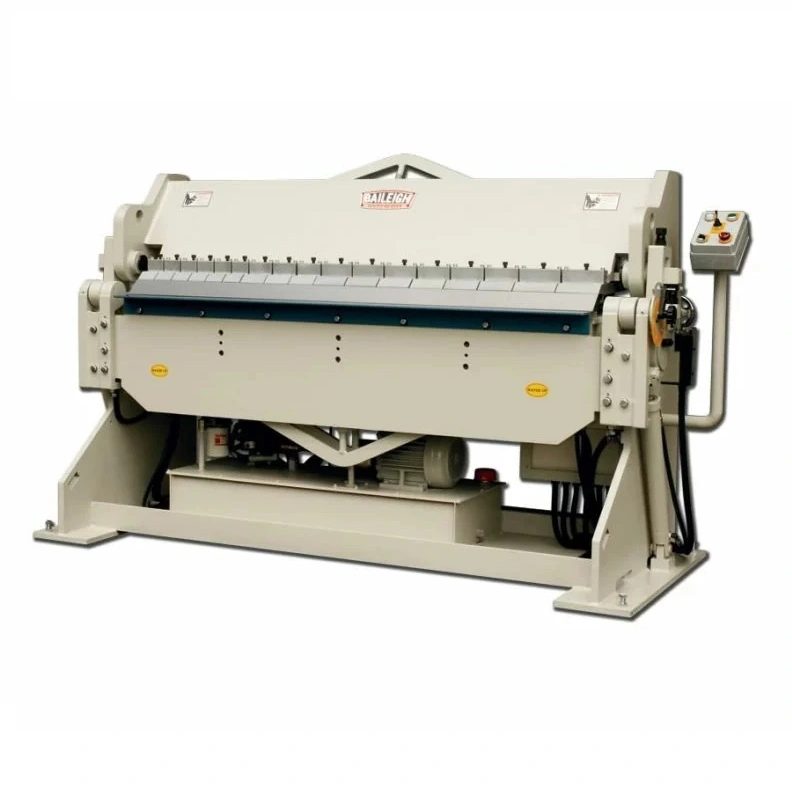

NEW BAILEIGH BB-7210H

*220V 3-phase hydraulic box brake
*10-gauge mild steel capacity
*6-foot length
*Includes 17 fingers, from 3″ to 6″
Features:
Maximum bend angle of 135° with a 1” beam adjustment
Box and pan brake made with top-quality industrial-grade hydraulics for reliability over many years of use
You can operate the hydraulic system in manual or semi-automatic mode to lift the leaf
Adjustable bend auto-stop makes production runs more efficient and ensures repeatability
5 hp motor controls all hydraulic functions and runs on 220-volt 3-phase power
Hydraulic motor attached to a cam lifts and clamps the beam to deliver the extreme pressure required to bend 10-gauge mild steel
Includes 17 hardened 3-piece fingers (6 of 3″, 3 of 4″, 6 of 5″, and 2 of 6″) to adjust for just about any size box or pan
6” maximum box depth
Removable bending apron lets you get closer between bends
Fully welded top beam and bending leaf, stabilized with solid steel support rods, keep deflection and twisting to a minimum when you’re bending at full capacity
