USED CUMBERLAND 1456I

Manufacturer
Cumberland
Cumberland is a well-known manufacturer of industrial granulators and size-reduction equipment for plastics processing, recycling, extrusion, injection molding, thermoforming, and other manufacturing operations. Cumberland granulators are widely used for reducing production scrap, plastic parts, sheet, film, profiles, and other recyclable materials into manageable regrind.
Description

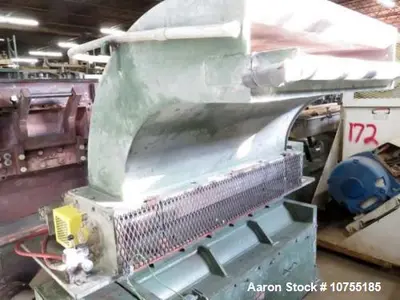

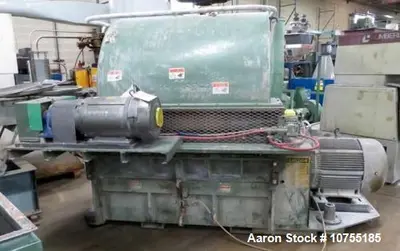

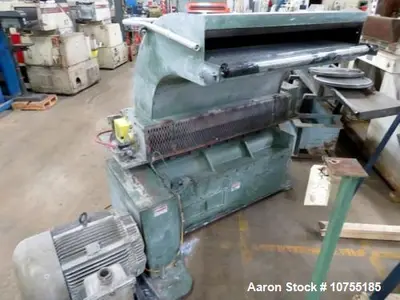

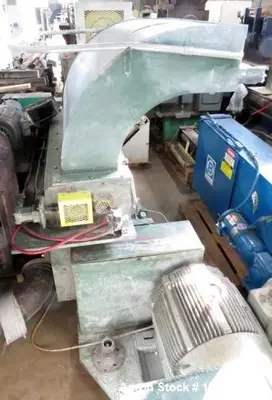

Available for sale is a used Cumberland Model 1456i granulator equipped with a 75 HP drive motor and a large 14" x 56" feed throat for industrial plastics recycling and size-reduction applications.

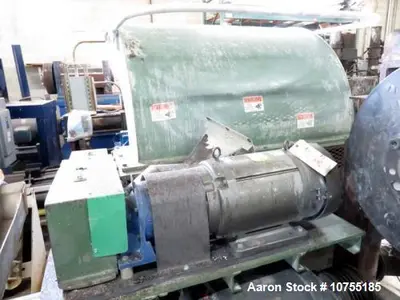

The cutting chamber features a three-knife twin shear rotor with two bed knives, providing an efficient cutting action for reducing suitable production scrap and recyclable materials. The rotor is belt driven by a 75 HP, 3-phase, 60 Hz, 460-volt motor.
Material feeding is handled by 68" wide powered infeed pull rolls driven by a 5 HP DC motor. The upper and lower feed rolls are poly covered and pneumatically actuated, providing controlled feeding into the granulator.
This machine is supplied with the pull-roll hopper only. Controls are not included, allowing the buyer to integrate the granulator into an existing processing line or install a control package appropriate for the intended application.
Specifications

Specification
Details

Manufacturer
Cumberland

Model
1456i

Equipment Type
Industrial Granulator

Feed Throat
14" x 56"

Rotor Configuration
(3) Knife Twin Shear Rotor

Bed Knives
(2)

Rotor Drive
Belt Driven

Main Motor
75 HP

Electrical
3 Phase / 60 Hz / 460 Volt

Infeed Pull Rolls
68" Wide

Pull Roll Motor
5 HP DC

Feed Roll Actuation
Pneumatic

Upper Feed Roll
Poly Covered

Lower Feed Roll
Poly Covered

Hopper
Pull Roll Hopper Only

Controls
Not Included

Condition
Used

Typical Applications

Plastics recycling
In-line extrusion scrap recovery
Thermoforming scrap reduction
Plastic sheet recycling
Manufacturing scrap granulation
Edge-trim processing
Plastic profile recycling
Production waste reduction
Regrind production
Post-industrial recycling
Plastic component size reduction
Secondary material recovery

Products & Materials This Granulator Could Be Used For

Plastic sheet
Thermoformed skeletons
Plastic profiles
Extrusion scrap
Plastic trim
Production offcuts
Molded plastic parts
Suitable plastic film and web materials
Polymer manufacturing scrap
Plastic packaging scrap
Post-industrial plastic waste
Other compatible plastics and recyclable materials

Material suitability, throughput, and final particle size depend on resin type, material dimensions, knife condition, screen configuration, feed rate, and operating conditions.
Frequently Asked Questions

What size motor does the Cumberland 1456i have? The granulator is powered by a 75 HP, 3-phase, 60 Hz, 460-volt electric motor.

What cutting system is installed? It features a three-knife twin shear rotor operating with two stationary bed knives.

Does it include powered feed rolls? Yes. The machine has 68" wide upper and lower poly-covered pull rolls powered by a 5 HP DC motor and pneumatically actuated.

Are electrical controls included? No. Controls are not included with this used granulator.

What type of hopper is included? This machine is equipped with the pull-roll hopper only, making it particularly useful for applications where material is continuously fed into the cutting chamber.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with freight coordination, loading and rigging arrangements, domestic and international transportation, and logistics for granulators and other industrial size-reduction equipment.
