USED RETECH VH34/75

Manufacturer
Retech / Vecoplan
Vecoplan is a recognized manufacturer of industrial shredding, size-reduction, conveying, and material-handling equipment used throughout the wood, plastics, recycling, biomass, waste-processing, and manufacturing industries. Retech equipment has also been widely utilized for demanding industrial shredding and recycling applications.
Description

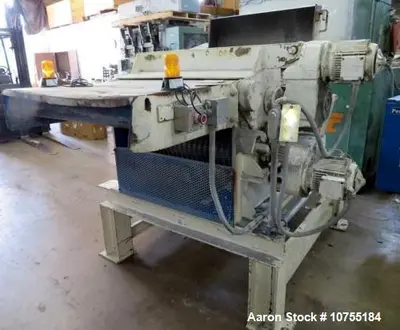

Available for sale is a used Retech / Vecoplan Model VH34/75 horizontal shredder powered by a 75 HP motor and supplied with a 30-foot-long vibratory infeed conveyor.

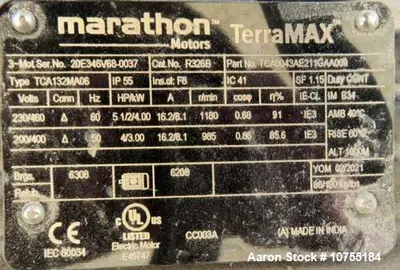

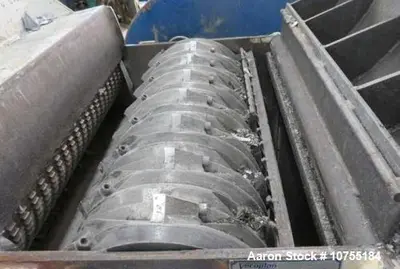

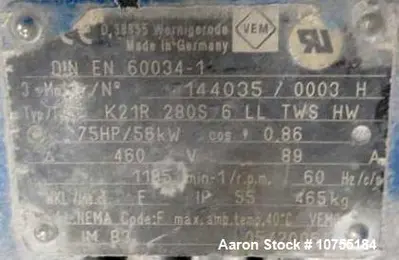

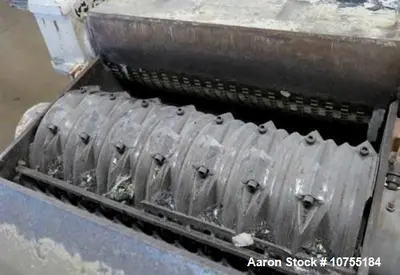

The shredder features a 5" x 34" feed opening and a 16" diameter rotor equipped with 44 cutters. The cutting rotor operates at approximately 390 RPM and is belt-driven by a 75 HP, 460-volt, 1,185 RPM electric motor. Two powered infeed rollers help positively feed material into the cutting chamber and are driven by approximately 1 kW SEW-Eurodrive motors and gearboxes.

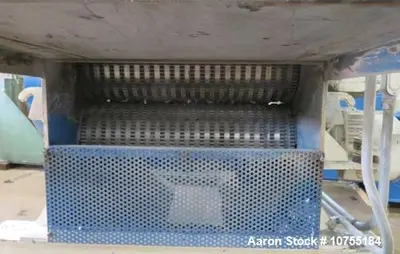

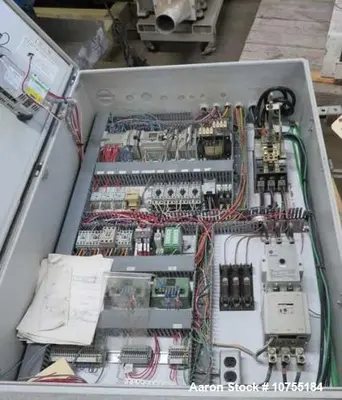

A 2" hole screen is currently installed to control discharged particle size, with processed material exiting through a gravity discharge. The shredder has an approximately 41.5" infeed height and includes a stand-alone starter/control panel.

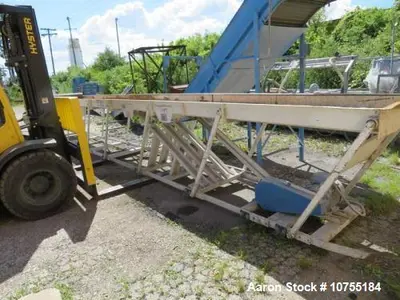

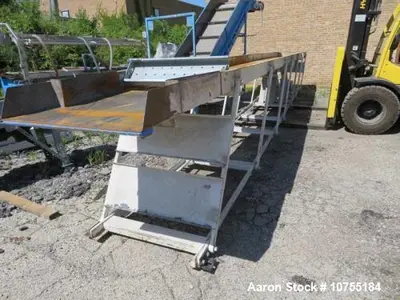

Also included is a 30' vibratory infeed conveyor, Model VR85/12, Serial No. 8809020. Conveyor controls are not included.

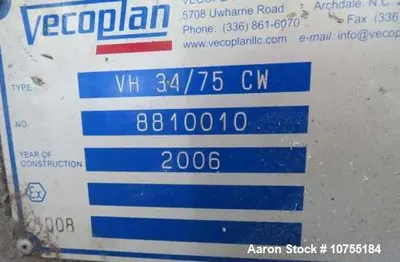

Built in 2006, this heavy-duty horizontal shredder package is well suited for industrial recycling, wood waste reduction, manufacturing scrap processing, and other size-reduction applications.
Specifications

Specification
Details

Manufacturer
Retech / Vecoplan

Model
VH34/75

Equipment Type
Horizontal Shredder

Infeed Opening
5" x 34"

Rotor Diameter
16"

Rotor Configuration
44 Cutters

Rotor Speed
Approximately 390 RPM

Rotor Drive
Belt Driven

Main Motor
75 HP

Main Motor Voltage
460 Volt

Main Motor Speed
1,185 RPM

Infeed Rollers
(2) Powered Rollers

Infeed Roller Drives
Approx. 1 kW SEW-Eurodrive Motors & Gearboxes

Infeed Height
Approximately 41.5"

Installed Screen
2" Holes

Discharge
Gravity

Shredder Controls
Stand-Alone Starter / Control Panel Included

Conveyor
30' Vibratory Infeed Conveyor

Conveyor Model
VR85/12

Conveyor Serial Number
8809020

Conveyor Controls
Not Included

Year Built
2006

Condition
Used

Typical Applications

Industrial size reduction
Wood waste processing
Recycling operations
Manufacturing scrap reduction
Biomass preparation
Pallet and wood-product recycling
Packaging waste processing
Plastic scrap reduction
Production waste processing
Material preparation before secondary grinding
Volume reduction
Recycled material processing

Products & Materials This Shredder Could Be Used For

Wood scraps and offcuts
Woodworking waste
Pallet components
Biomass materials
Plastic scrap
Plastic profiles and components
Manufacturing trim
Packaging materials
Recyclable production waste
Composite materials suitable for shredding
Industrial scrap
Other compatible bulky materials requiring size reduction

Actual throughput and suitability depend on material characteristics, feed dimensions, density, moisture content, desired particle size, screen configuration, and operating conditions.
Frequently Asked Questions

What size motor powers this shredder? The VH34/75 is equipped with a 75 HP, 460-volt motor operating at approximately 1,185 RPM.

What rotor configuration does it have? The machine has a 16" diameter, 44-cutter rotor operating at approximately 390 RPM.

What screen is currently installed? A screen with 2" holes is installed. Final particle size can vary depending on the material and operating conditions.

Does the shredder include an infeed conveyor? Yes. A 30-foot vibratory infeed conveyor, Model VR85/12, is included with the package.

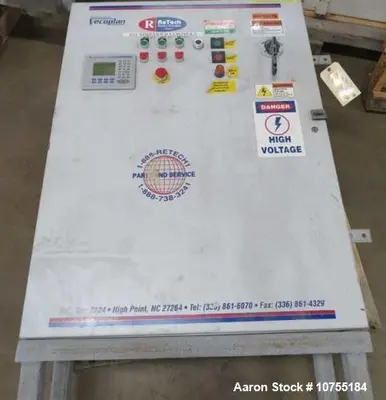

Are controls included? A stand-alone starter/control panel is included for the shredder. Controls for the vibratory conveyor are not included.
