USED NISSEI FNX180IIIA-36A

Manufacturer Information
Nissei Plastic Industrial Co., Ltd.
Nissei is a globally recognized manufacturer of injection molding machinery used throughout the plastics, medical, packaging, electronics, automotive, consumer products, and precision manufacturing industries. Nissei injection molding machines are known for precision process control, repeatability, and advanced molding technology.
Description

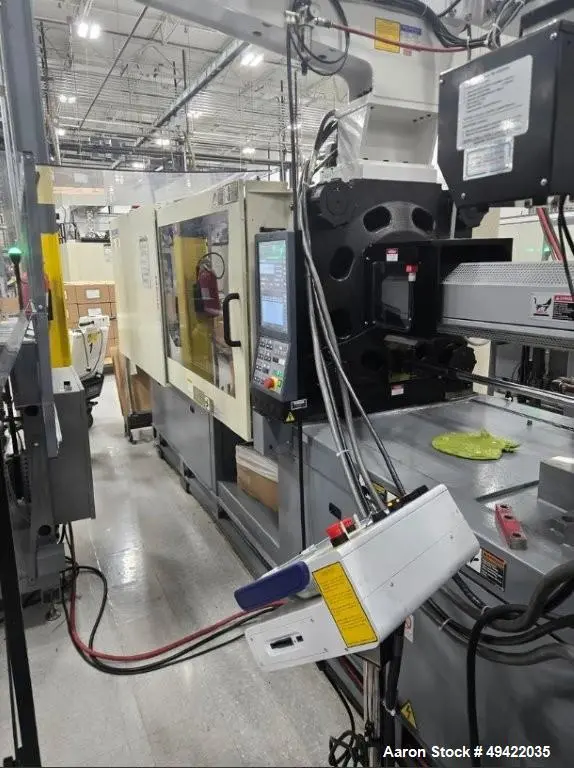

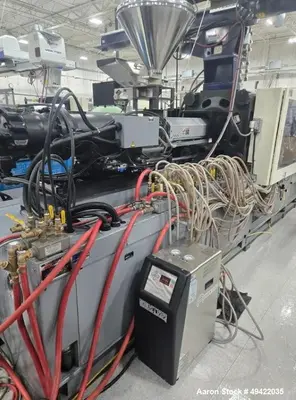

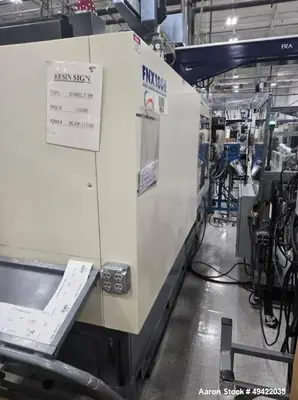

Available for sale is a used Nissei Model FNX180IIIA-36A injection molding machine, built in 2016 and configured for precision plastic injection molding applications.
This machine provides approximately 198 tons of clamp force with a 14.9 oz shot size. The clamping section features 22" x 22" tie-bar spacing and approximately 31.5" x 31.5" platens, providing substantial mold-mounting capacity for a press in this tonnage range.
The machine has a maximum daylight of approximately 37.4", a 27.6" clamp stroke, and a 4.3" ejector stroke. Process operation and machine functions are managed through the Nissei TACT IV control system.
Additional equipment includes Super Clean, dual air blow, an SPI robot interface for integration with compatible automation, and a hardened screw and barrel for enhanced wear resistance.
This Nissei press is well suited for manufacturers seeking a modern, precision injection molding machine for high-quality molded plastic components and automated production cells.
Specifications

Specification
Details

Manufacturer
Nissei

Model
FNX180IIIA-36A

Equipment Type
Injection Molding Machine

Clamp Force
Approximately 198 Tons

Shot Size
14.9 oz

Tie-Bar Spacing
22" x 22"

Platen Size
31.5" x 31.5"

Maximum Daylight
37.4"

Clamp Stroke
27.6"

Ejector Stroke
4.3"

Control
Nissei TACT IV

Super Clean
Equipped

Air Blow
Dual Air Blow

Robot Interface
SPI

Screw & Barrel
Hardened

Year Built
2016

Condition
Used

Typical Applications

Precision injection molding
Medical component manufacturing
Consumer product molding
Automotive component production
Electronics molding
Packaging component manufacturing
Appliance component production
Industrial plastic parts
Automated molding cells
Technical plastic components
High-volume plastic production
General-purpose injection molding

Products This Machine Could Be Used For

Medical plastic components
Electronic housings
Automotive plastic parts
Closures and caps
Consumer product components
Appliance parts
Plastic housings and enclosures
Precision molded components
Packaging components
Industrial plastic fittings
Technical molded parts
Small-to-medium plastic components

Actual mold and product suitability depends on resin, part geometry, projected area, mold dimensions, required injection pressure, shot requirements, cycle time, and other processing parameters.
Frequently Asked Questions

What is the clamp force of this Nissei injection molding machine? The FNX180IIIA-36A is rated at approximately 198 tons of clamp force.

What is the shot size? The machine has a stated 14.9 oz shot size. Buyers should confirm shot capacity for the specific resin being processed.

What mold space is available? The press has 22" x 22" tie-bar spacing, approximately 31.5" x 31.5" platens, and a maximum daylight of approximately 37.4".

What control system does it use? This machine is equipped with a Nissei TACT IV control, providing centralized operation and process control.

Can this machine be integrated with automation? Yes. The press includes an SPI robot interface, as well as dual air blow, providing useful features for integration into an automated molding cell.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, heavy machinery transportation, and logistics planning for injection molding machines and related plastics-processing equipment.
