USED NISSEI NEX110III-9EG

Manufacturer Information
Nissei Plastic Industrial Co., Ltd.
Nissei is a globally recognized manufacturer of injection molding machinery for precision plastics manufacturing. Nissei all-electric injection molding machines are widely used in medical, electronics, automotive, packaging, consumer products, and other applications requiring repeatable molding performance and precise process control.
Description

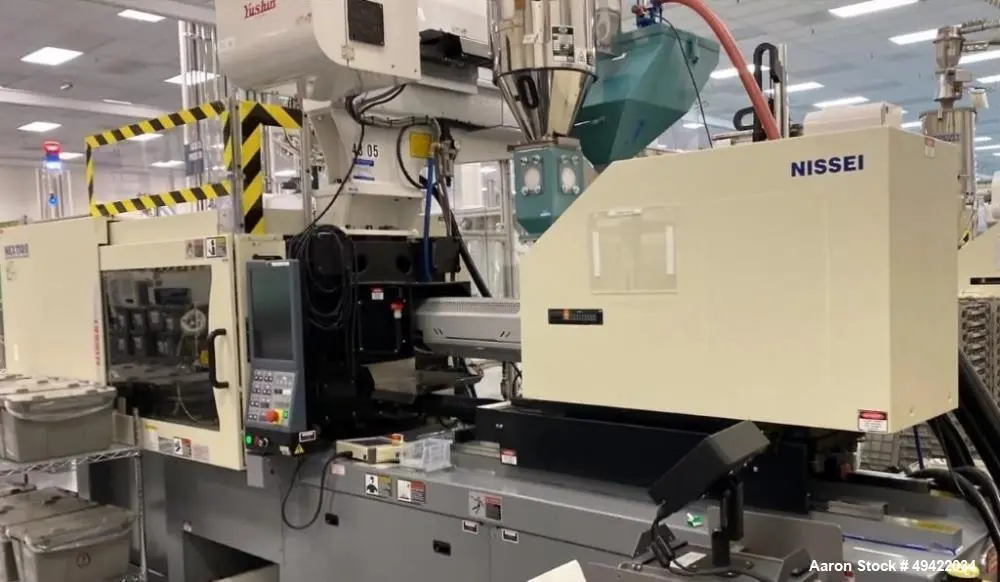

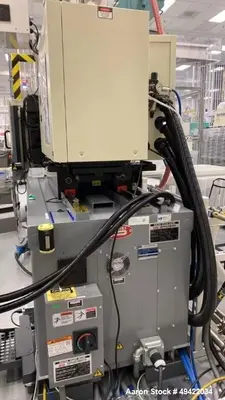

Available for sale is a used Nissei Model NEX110III-9EG all-electric injection molding machine, built in 2014. This precision molding press offers a 120-ton clamping capacity combined with a 1.5 oz shot size, making it particularly well suited for small and medium precision molded components.
The clamping section provides 16.5" x 16.5" tie-bar spacing with approximately 23.9" x 23.9" platens. The machine has a maximum daylight of 29.9" and a 13.8" clamp stroke, providing mold-space flexibility for a variety of precision tooling configurations.

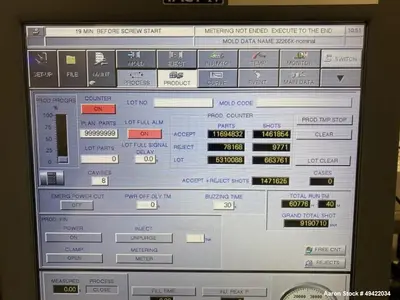

Machine operation is managed through a Nissei TACT IV control system, providing centralized control of molding parameters and machine functions. The press is also equipped with air blow for compatible part-release and automation applications.
This 2014 Nissei all-electric press is an excellent option for manufacturers seeking a compact, precision injection molding machine for small-part production, technical components, medical products, electronics, and automated molding operations.
Specifications

Specification
Details

Manufacturer
Nissei

Model
NEX110III-9EG

Equipment Type
All-Electric Injection Molding Machine

Clamping Capacity
120 Tons

Shot Size
1.5 oz

Tie-Bar Spacing
16.5" x 16.5"

Platen Size
23.9" x 23.9"

Maximum Daylight
29.9"

Clamp Stroke
13.8"

Control
Nissei TACT IV

Air Blow
Equipped

Year Built
2014

Condition
Used

Typical Applications

Precision injection molding
Small-part molding
Medical component manufacturing
Electronics production
Automotive component molding
Packaging component production
Technical plastics manufacturing
Consumer product molding
Electrical component manufacturing
Automated molding cells
High-volume plastic production
General precision plastics processing

Products This Machine Could Be Used For

Medical plastic components
Electrical connectors
Electronic components
Small plastic housings
Precision plastic gears
Clips and fasteners
Automotive plastic components
Packaging components
Caps and closures
Technical molded parts
Consumer product components
Small industrial plastic parts

Actual mold and product suitability depends on resin type, part geometry, projected area, mold dimensions, required injection pressure, shot requirements, cycle time, and other processing parameters.
Frequently Asked Questions

What is the clamping capacity? The Nissei NEX110III-9EG has a stated 120-ton clamping capacity, making it suitable for a broad range of small and medium precision molding applications.

What is the shot size? The machine has a 1.5 oz shot size. Actual usable shot capacity should be confirmed for the specific resin and molding application.

What are the tie-bar and platen dimensions? Tie-bar spacing is approximately 16.5" x 16.5", while the platens measure approximately 23.9" x 23.9".

What control system is installed? The press operates with a Nissei TACT IV control system for machine operation and molding-process management.

Is air blow included? Yes. The machine is equipped with air blow, which can be useful for compatible part-ejection, release, and automation applications.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, machinery transportation, and logistics planning for injection molding machines and other plastics-processing equipment.
