NEW GMC HS-1010E
Overview

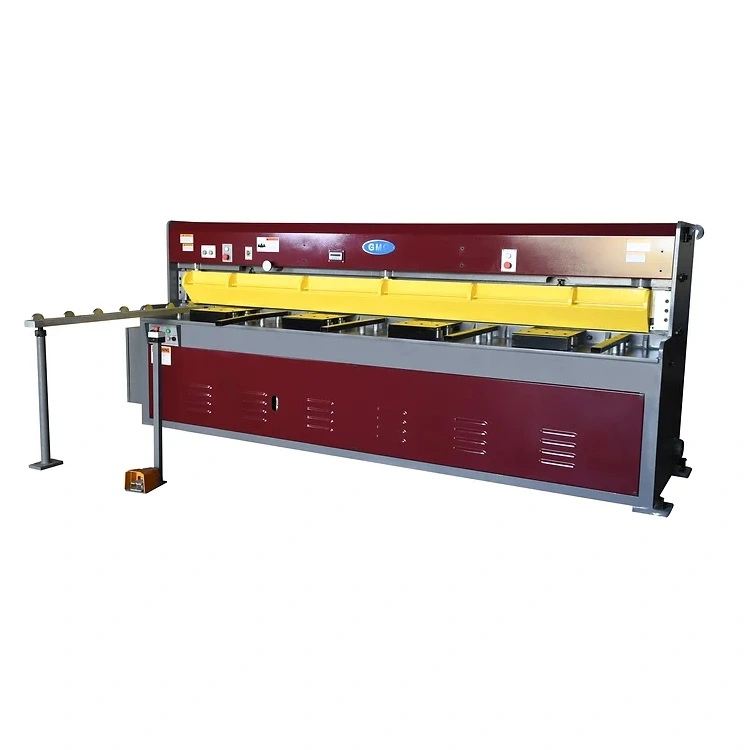

The powerful and precise GMC HS-1010E -10′ x 10 Ga. Hydraulic Metal Shear features a 36″ German SIKO Front Operated Power Back Gauge, quick change blade gap adjustment, and a full-length viewable finger guard for operator safety. With its advanced features and reliable performance, the HS-1010E is the perfect choice for achieving accurate and efficient metal cutting results.
Standard Features
ISO 9001 certified
Taiwan machines

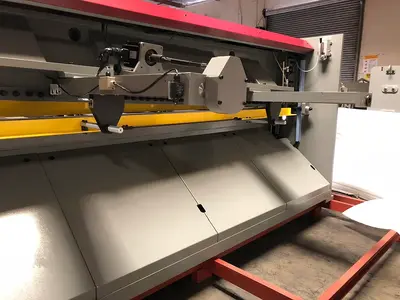

HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
Shadow line for accurate straight cutting

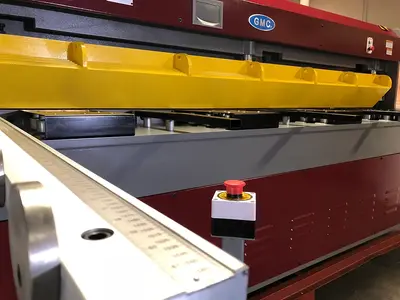

60” squaring arm with inlaid inch/metric dual scale
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Adjustable cutting length and stroke

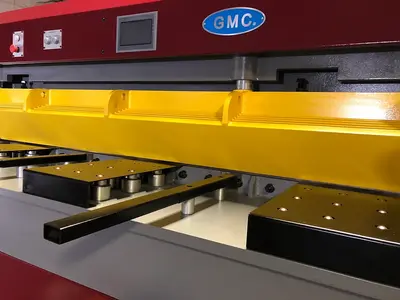

Ball transfer plates on worktable for easy loading work piece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade

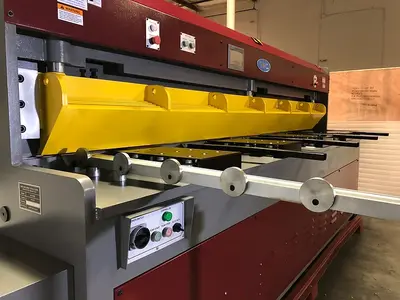

Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
Standard Equipment
HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA)
Shadow line for accurate straight cutting
Material support and drop back chute
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Optional Equipment
Safety fence for enclosure of the back side of the machine
Specs
Weight: 9500 lbs
Dimensions: 178 × 99 × 65 in
Cutting Capacities: Mild Steel – 10’ x 10 Ga.
Stainless Steel – 10’ x 14 Ga.
Aluminum – 10' x 1/4"
Min. Thickness: 24 ga.
Blade Length: 10' 1"
Strokes per Min.: 10 – 15
Work Table Height: 34-1/2"
Front Support Arm: 24"
Back Gauge: 36” German SIKO Powered Back gauge
Blade Rake Angle: 2 degrees
Oil Tank Cap.: 26 gal.
Main Motor: 7 ½ HP, 220V / 440V , 3 phase
Back Gauge Motor: 1 HP, 220V/440V, 3 Phase
Weight: 8,750 LBS
Dimensions: 149" x 99" x 65"
