New | in-Stock

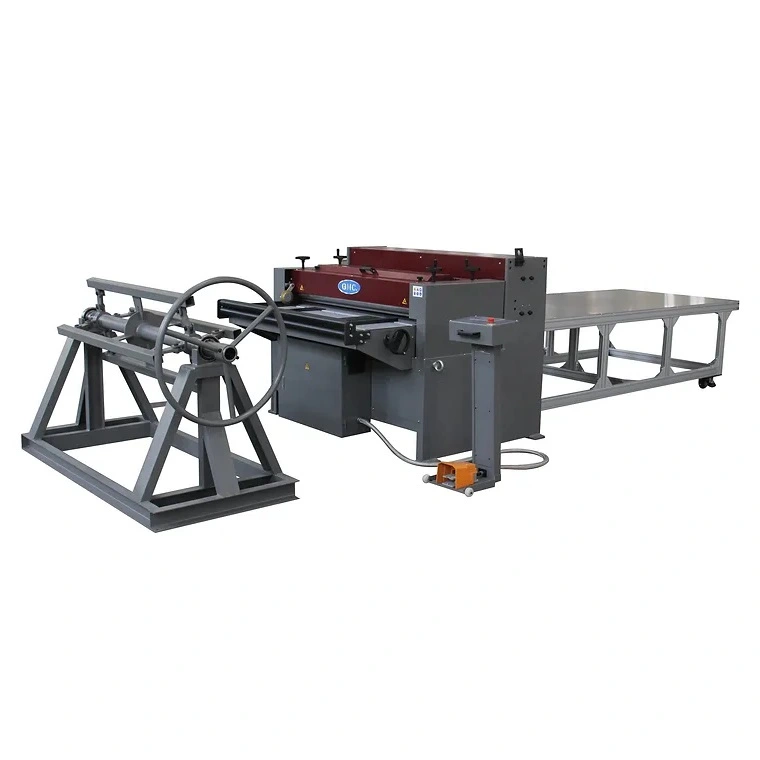

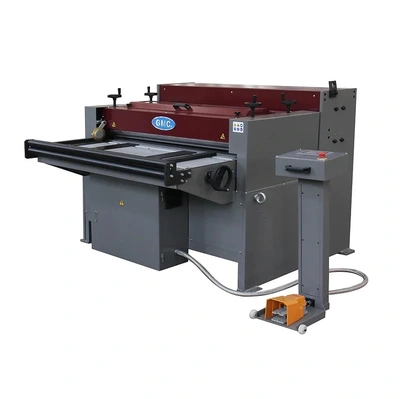

NEW GMC PS-4816GT

Illinois, United States
At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.
Overview
Slitters & Slitting Lines

Features:
ISO 9001 certified
American design and Taiwan quality machine
Slit and cut to length in one unit
6 Sets of blades
NC programmable cutting length, 100 job memory feature
Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.
Auto cycle mode-shearing will auto cycle the programmed cut lengths.
Easy removal of slitting blades for cut to length operations without slitting.
feed the sheet metal from the manual decoiler to cut to length without slitting blades
5” Omron touch screen
3-1/8” diameter shafts mounted in precision ball sealed bearings
Slitting blades are dual edged
Safety type foot pedal control
One year warranty for parts
Options

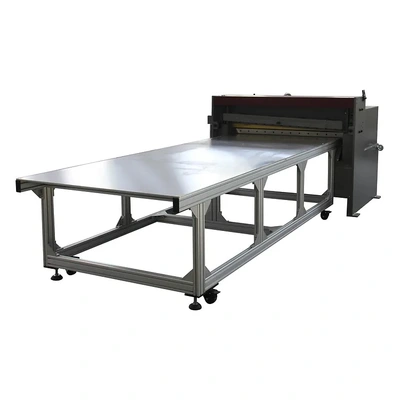

10ft Outfeed table #FT-10, 121”x49”x32” LWH……………………………………. call for pricing
10ft Infeed table #FT-10 ( when purchase Powered Slitter # PS-4816GT itself )…… call for pricing

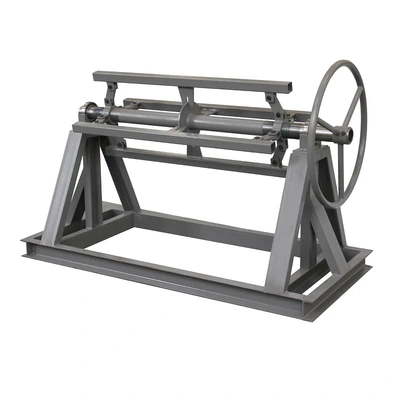

Decoiler #DC-4820-2T, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight……. call for pricing

Specs

Weight: 2950 lbs
Dimensions: 70 × 65 × 51 in
Shearing Capacities: Mild Steel – 16ga.
Stainless Steel – 20ga.
Aluminum – 12ga.
Slitting Capacities (Mild Steel): 16ga. – 1 cut/2 strips
18ga. – 2 cuts/3 strips
20ga. – 3 cuts/4 strips
22 – 24ga. – 4cuts/5 strips
26 – 30ga. – 6 cuts/7 strips
Min. Thickness: 30 ga.
Max. Slitting Length: 20 ft. NC programmable
Shearing Blade Length: 50"
Shear Blade Rake Angle: 2 degrees
Infeed/ Outfeed Table Height: 32"
Slitting Blades: 6 sets
Slitting Feed Speed: 57 FPM
Shearing Stoke: 35 SPM
Slitting Motor: 3HP, 220V,1PH
Shearing Motor: 3HP, 220V, 1PH, 25A
Decoiler: 48” Width
20” Coil ID
Max Coil Weight 2T = 4,500 lbs
Dimensions: 71” x 32” x 39-1/2”
Weight: 2,850 lbs
Dimensions: 68” x 63” x 48”
