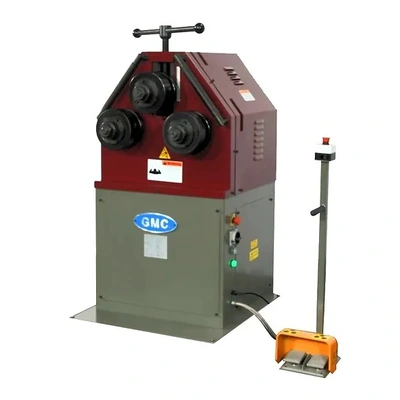

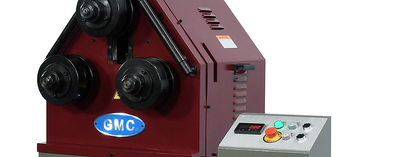

NEW GMC PRB-55-1PH-
Overview
Features
ISO 9001 certified

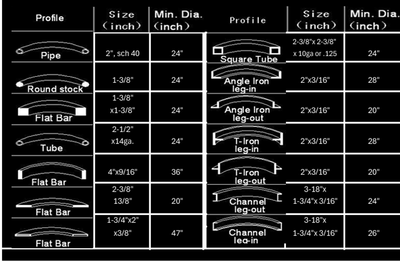

2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
Easy to operate in two positions; vertically and horizontally on its back
DRO -Digitally displays your exact position and ensures repeatability
Heavy Duty 4HP AC main motor
1 – Top forming roll (hydraulic driven)
2 – Driven bottom rolls
Robust, all steel and welded framework
Quiet, compact, hydraulic system that ensures precision and improves productivity
Adjustable pressure control valve
1-year parts only warranty and lifetime tech support
Standard Equipment
Equipped with 1-set of universal forming rolls suitable for many applications except pipes & round tubes (need special dies)
Digital Readout (ensures repeatability and digitally displays your exact position)
Left and right guide rollers (easily adjustable)
Foot pedal (controls forward and reverse)
Digital Readout (digital display)
4 – metal support legs for horizontal position
Optional Roll Sets
One Roll Set (3 rolls) – for pipe & round tubing, any size – contact for pricing
Anti-twisting attachment – contact for pricing
Specs
Weight: 1150 lbs
Dimensions: 40 × 35 × 65 in
Roll Adjustment: Manual
Roll Diameter: 7.5"
Roll Shaft Diameter: 2"
Roller Speed: 16 RPM
Main Motor: 4 HP 220VAC – Single Phase 25-30 amp
Dimensions: 40" x 35" x 65"
Weight: 1,120 LBS
Oil Tank Capacity: 7 Gal.
