Used 220 Gallon Stainless Steel Petroleum Mixing Tank & Metered Transfer System – 5 HP Agitator with Blackmer Pump

Manufacturer Information
System Manufacturer: Not Specified
Transfer Pump Manufacturer: Blackmer
Blackmer is a recognized manufacturer of positive displacement pumps and fluid-handling equipment widely used in petroleum, chemical, fuel, lubricant, and industrial transfer applications. This integrated system combines a stainless steel mixing vessel with agitation, nitrogen purging, level controls, metering, filtration, and a dedicated transfer skid.
Description
Available for sale is a used approximately 220-gallon stainless steel petroleum mixing tank and measurement system designed for controlled blending, transfer, and measured dispensing of compatible petroleum and industrial liquid products.

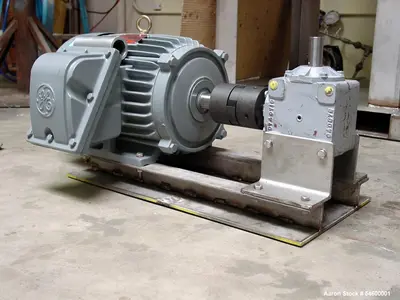

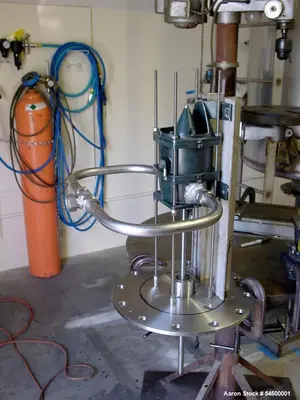

The vertical stainless steel mixing tank is equipped with a 5 HP top-entry agitator for product blending and uniformity. An integrated nitrogen purge system provides an inerting capability for processes involving compatible flammable products, subject to the user's applicable process, electrical, ventilation, and safety requirements.

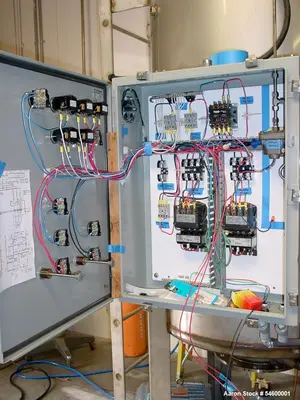

The system incorporates high/low level protection and level controls, along with an enclosed control panel for operation of the mixer and transfer equipment.

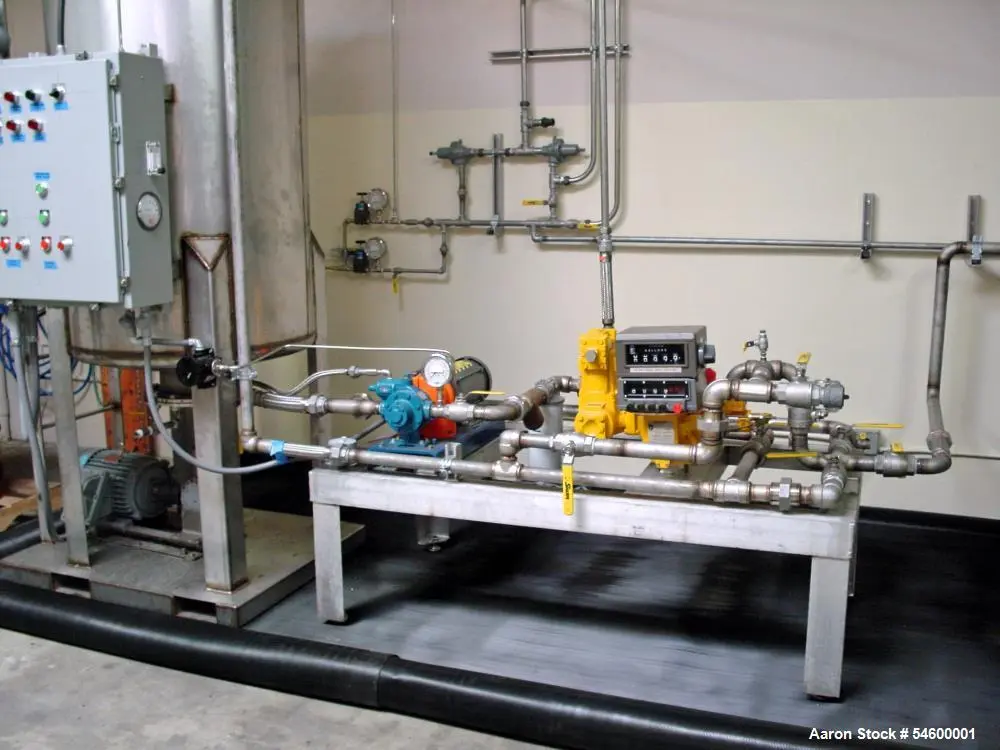

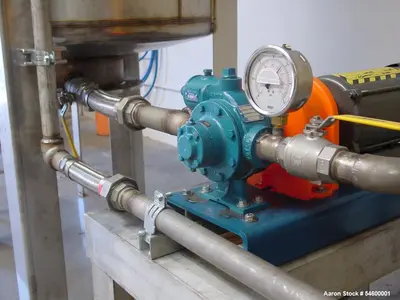

Product transfer is handled by a Blackmer positive displacement pump installed on a dedicated transfer skid. The transfer system also includes a flow meter/totalizer for measured dispensing, pressure gauges for system monitoring, a product filter/strainer, stainless steel process piping, and associated valves.
This compact processing package is well suited for petroleum blending, lubricant production, additive preparation, batch formulation, measured product transfer, and similar industrial liquid-handling operations.
Specifications

Specification
Details

Equipment Type
Petroleum Mixing & Measurement System

Tank Capacity
Approximately 220 Gallons

Tank Construction
Stainless Steel

Tank Configuration
Vertical

Agitation
Top Entry

Agitator Motor
5 HP

Nitrogen Purge
Included

Level Controls
Included

Level Protection
High / Low Level

Transfer Pump
Blackmer Positive Displacement Pump

Flow Measurement
Flow Meter / Totalizer

Pressure Monitoring
Pressure Gauges

Filtration
Product Filter / Strainer

Process Piping
Stainless Steel

Valves
Included

Transfer Skid
Dedicated Pump / Transfer Skid

Control Panel
Enclosed

Mixer Controls
Included

Pump Controls
Included

Condition
Used

Typical Applications

Petroleum product blending
Lubricant blending
Oil additive preparation
Batch liquid mixing
Measured liquid dispensing
Petroleum product transfer
Specialty fluid formulation
Chemical blending of compatible products
Oil and fluid packaging operations
Additive dosing and blending
Batch preparation
Industrial liquid transfer

Products This System Could Be Used For

Lubricating oils
Base oils
Petroleum products
Oil additives
Hydraulic fluids
Compatible solvents
Specialty lubricants
Industrial oils
Process fluids
Compatible liquid chemicals
Petroleum-based formulations
Other compatible flammable or combustible liquid products

Compatibility and suitability should be verified for the specific product and process. Handling flammable materials requires appropriate equipment classification, grounding/bonding, ventilation, inerting procedures, and compliance with applicable safety requirements.
Frequently Asked Questions

What is the approximate tank capacity? The vertical stainless steel mixing tank has an approximate working size of 220 gallons.

Does the system include agitation? Yes. The tank is equipped with a 5 HP top-entry agitator for blending and product homogenization.

How is product transferred from the system? A Blackmer positive displacement pump provides product transfer, with stainless steel piping, valves, pressure gauges, and filtration incorporated into the system.

Can the system measure the amount of product transferred? Yes. A flow meter/totalizer is included for monitoring and measuring product dispensing or transfer.

Does it have provisions for handling flammable products? The system includes a nitrogen purge system intended to support inerting applications. The buyer should verify that the complete installation meets all electrical, fire, process-safety, and regulatory requirements for the intended product.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with freight coordination, loading and rigging arrangements, domestic and international transportation, and logistics planning for tanks, pumps, skidded systems, and other industrial processing equipment.
