USED 1980 W F WELL W-9
Overview
Description

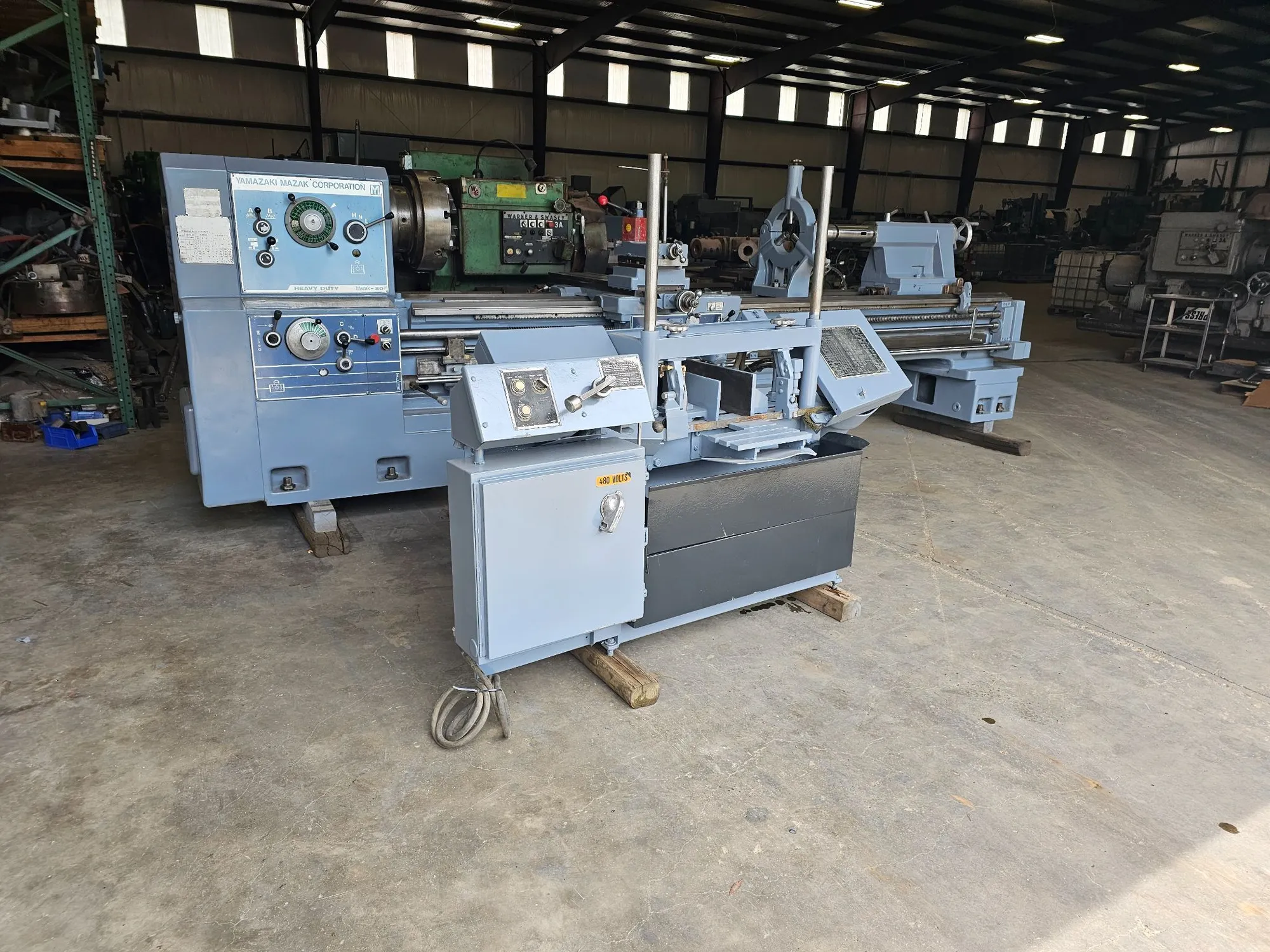

9" X 17" W.F. Wells Horizontal Saw
Specifications
| Rect-Cap (H) | 9" | 228.6 mm |
|---|---|---|
| Rect-Cap (W) | 17" | 431.8 mm |
| Round-Cap | 9" | 228.6 mm |
| Square-Cap | 17" | 431.8 mm |
| Power | 1 | 1 |
| Blade Width | 0.75" | 19.05 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 11.6" | 294.64 mm |
| Dimensions | R-L 81" X F-B 43" X 63" High | R-L 81" X F-B 43" X 63" High |
| Weight | 990 Lbs. | 990 Lbs. |
Maximum Capacity Round.............................9"
Maximum Capacity Flat..............................17"
Rectangular At 90 Degrees..........................9" X 17" Wide
Rectangular At 45 Degrees..........................9" X 8" Wide
Work Height........................................26"
Weight Capacity....................................2,000 Lbs.
Blade Wheel Size...................................14-1/2"
Blade Size.........................................3/4" x .035 X 11'6"
Blade Speed........................................70 To 300 FPM
Sawing Force.......................................30 To 120 Lbs.
Main Motor.........................................1 Hp.
Weight.............................................990 Lbs.
Machine Dimension..................................81" X 43"
Machine Height.....................................63"
Coolant Capacity...................................10 Gallon
Hydraulic Capacity.................................3/4 Gallon
Manual Clamping....................................Yes
Hydraulic Power Down...............................Yes
Coolant............................................Yes
Manual In Feed Of Material.........................Yes
Discharge Table ...................................No
Condition..........................................Good
