NEW 2019 SIEMANS 7MF9011-4FA

New unused surplus Siemens 7MF9011-4FA double shut-off valve manifold for pressure instruments and transmitters.

Manufacturer: Siemens
Model/part number: 7MF9011-4FA
Evoqua material/stock number: W2T277112
Product type: Double shut-off/block-and-bleed instrument valve manifold
Nominal bore: DN5
Process connection: 1/2-14 NPT
Vent and test connection: 1/4-18 NPT
Connection configuration: Sleeve-to-collar
Body material: 316L stainless steel, material number 1.4404
Maximum permissible operating pressure: 420 bar / 6,092 PSI
Power requirements: None
Equipment weight: Approximately 2.2 lb
Equipment dimensions: Approximately 4.65 L × 2.5 W × 3.55 H inches
Condition: New unused surplus, open box
Year supplied: 2019
Serial number: Not visible

The valve manifold provides process isolation and a separate vent/test connection for pressure instruments. It is compatible with Siemens SITRANS P gauge and absolute-pressure transmitters having the applicable 1/2-14 NPT connection.

The photographed unit was originally furnished as the double shut-off and block-and-bleed valve accessory for a Siemens transmembrane-pressure transmitter package at a municipal wastewater treatment facility. The associated project transmitter was Siemens model 7MF8023-1TA14-1MJ1; however, the pressure transmitter itself is not included in this listing.

Included:

One Siemens 7MF9011-4FA double shut-off valve manifold
Attached support or mounting bracket shown in the photographs
Process fittings and protective packaging shown in the photographs

Not included:

Siemens pressure transmitter
Electrical wiring or control equipment
Additional mounting hardware not shown
Calibration or pressure-test certification unless found inside the package

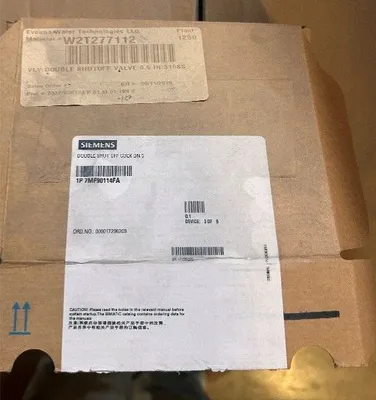

The item remained in warehouse storage and appears unused. The original box has been opened for identification and photographs.

Equipment is offered as-is. Buyer is responsible for confirming connections, material compatibility, pressure rating, package contents and suitability for the intended application. Buyer is responsible for shipping and transportation from the storage location.
