NEW 2019 Evoqua A1000i STILLING WELL KIT

New unused surplus Evoqua/Vanwin stilling-well kit designed for installation with an Evoqua/Siemens A1000i submersible level transmitter in municipal water and wastewater tanks.

Manufacturer/Supplier: Vanwin Corp. / Evoqua Water Technologies
Product: A1000i Stilling Well Kit
Manufacturer part number: 11268-05765
Project inventory/SAP number: W2T409515
Equipment type: Level-transmitter stilling well and mounting assembly
Condition: New unused surplus, open-box warehouse inventory
Year supplied: 2019
Serial number: Not applicable
Power requirements: None
Quantity available: Two complete kits shown on the photographed shipment, subject to physical verification

The stilling well is designed to provide a protected, relatively stable liquid column for an A1000i submersible level transmitter. It helps shield the sensing element from turbulence, aeration, splashing, solids movement and interference from surrounding tank equipment, allowing more consistent liquid-level measurement.

The project installation drawings show the stilling well mounted vertically to the concrete tank wall using support brackets. The pipe length is field-adjusted so the A1000i sensing element is positioned approximately 6 inches above the tank floor.

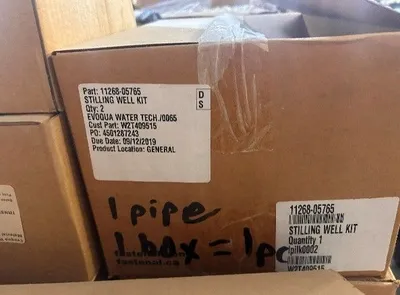

Each complete stilling-well kit appears to consist of one long pipe assembly and one corresponding component or mounting-hardware box. The shipping boxes should be matched using part number 11268-05765 and project inventory number W2T409515.

Associated equipment:

Compatible transmitter: Evoqua/Siemens A1000i
Associated transmitter inventory number: W3T258144
Associated project tags: LIT 208-1, LIT 208-2, LIT-401-1 and LIT-401-2
Application: Biological and membrane operating system wastewater-tank level measurement
Installation: Vertical concrete tank-wall mounting
Sensor position: Approximately 6 inches above tank floor
Approximate installed length: 13 to 14 feet based on the project drawings; buyer should verify actual supplied pipe length

This listing is for the stilling-well pipe and associated mounting components only. The A1000i level transmitter, transmitter cable, housing, control panel and other instrumentation are not included unless specifically shown and identified in the listing photographs.

Actual pipe diameter, packaged dimensions, weight and exact hardware contents should be confirmed from the physical equipment before shipment.

Equipment was originally furnished for a municipal wastewater treatment facility but remained in warehouse storage. Equipment is offered as-is. Buyer is responsible for verifying completeness, dimensions, material, compatibility and suitability for the intended installation. Buyer is responsible for loading, freight and transportation from the storage location.
