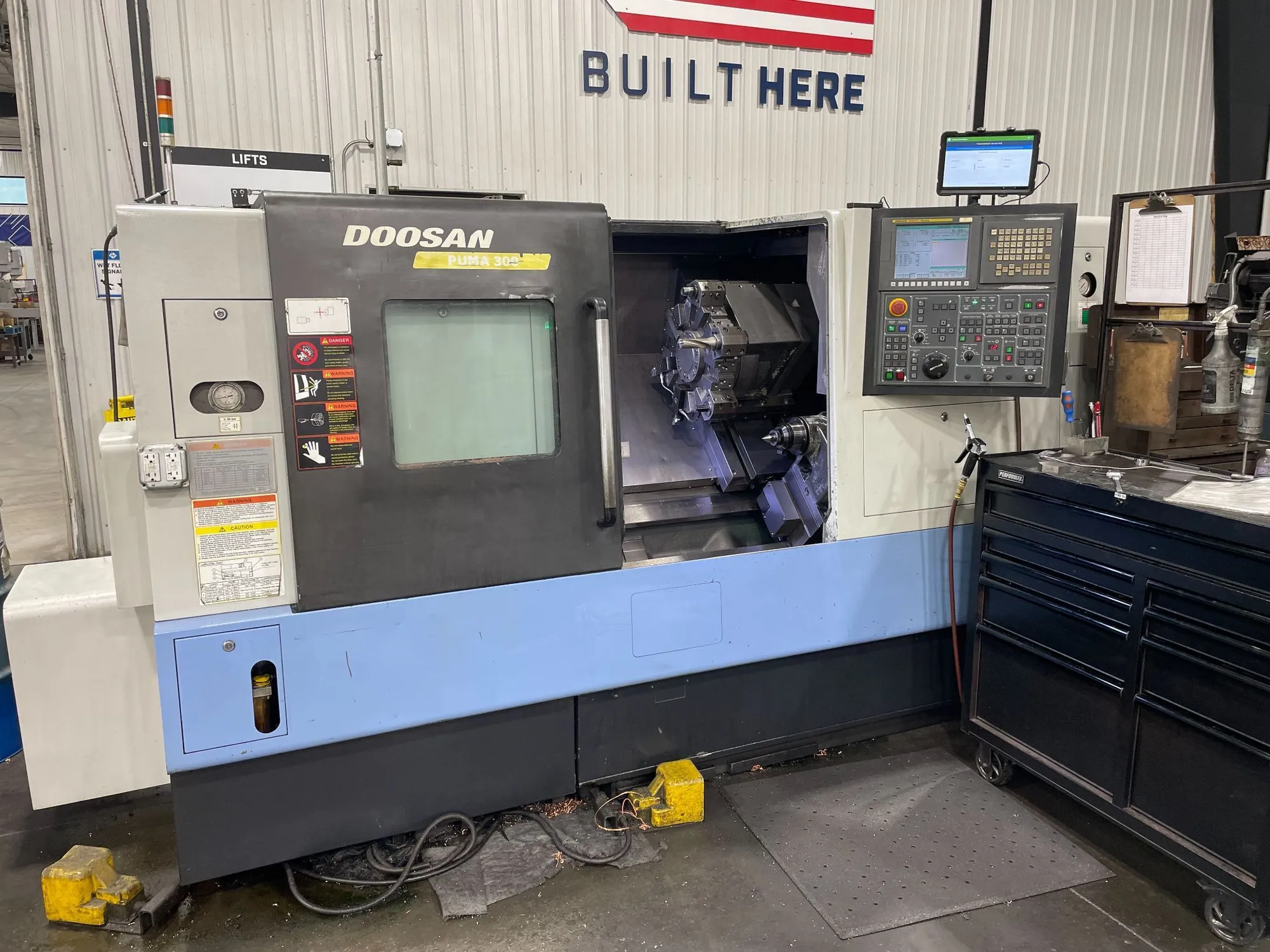

USED 2011 DOOSAN PUMA 300C
Overview
The Doosan Puma 300C is a heavy-duty, 2-axis CNC turning center featuring a 12-inch chuck, a 35 HP spindle motor with a 2,800 RPM max speed, a 4.5-inch spindle bore, and a 12-station turret
Specs
Max Turning Diameter: 15.7 inch
Max Turning Length: 24.8 inch
Max Bar Capacity: 4.05 inch
Swing Over Bed: 22.4 inch
Swing Over Carriage: 17.7 inch
Distance Between Centers: 27.8 inch
X Axis Travel: 11.1 inch
Z Axis Travel: 26.8 inch
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-11
Spindle Bore: 4.5 inch
Spindle Speed: 0 – 2800 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.97 inch
Tailstock Quill Travel: 4.7 inch
Equipped With
Chip Conveyor
Tailstock
Tool Setter
Cutting 9506
Run Time 8114
