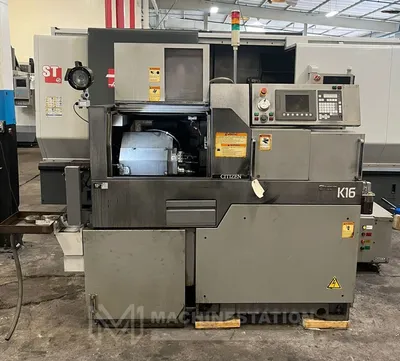

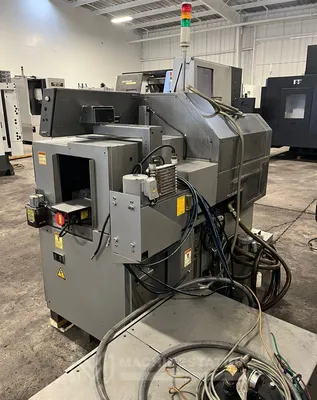

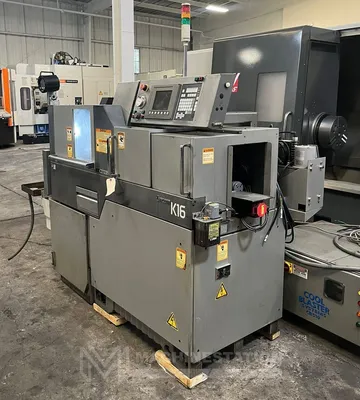

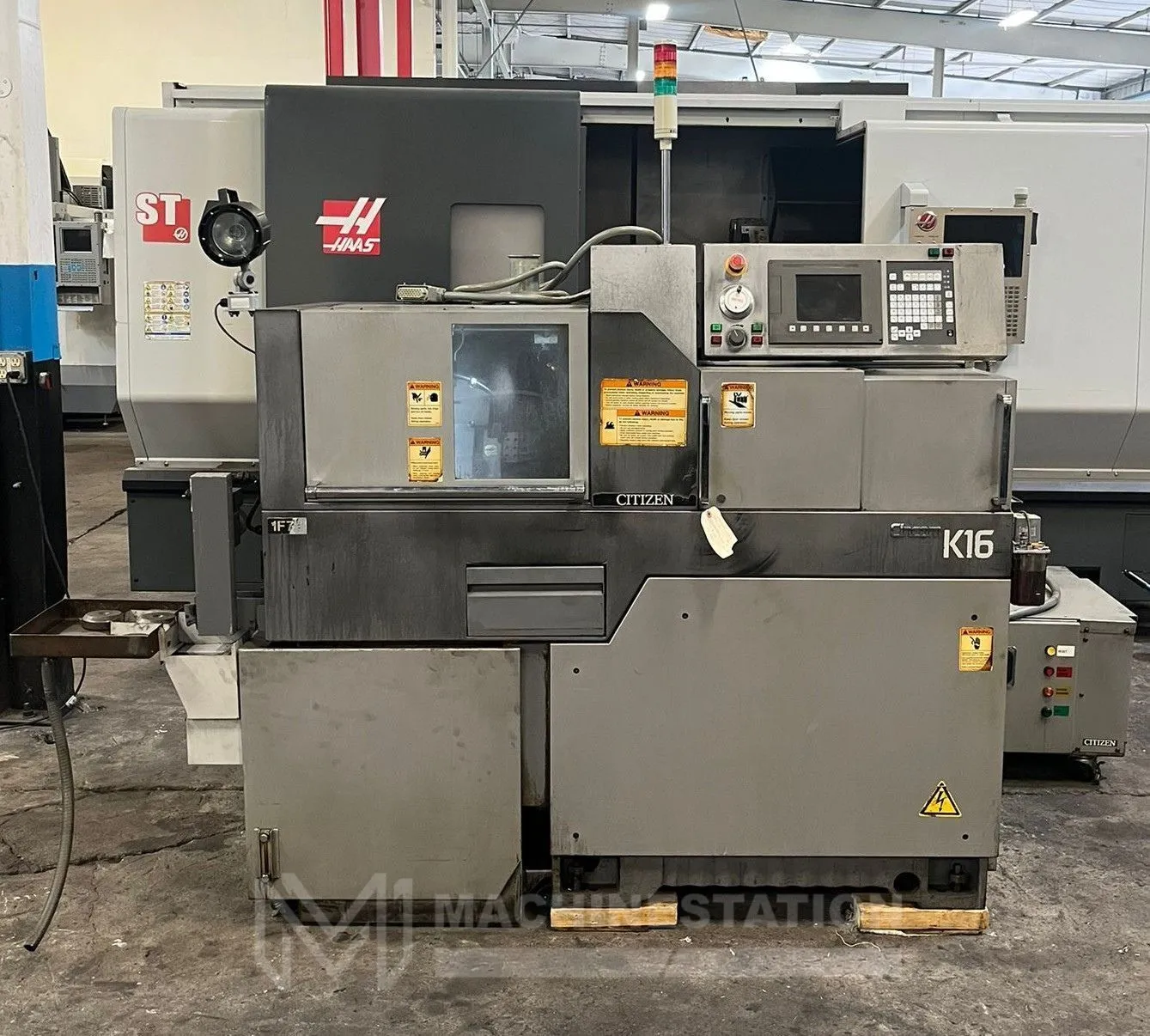

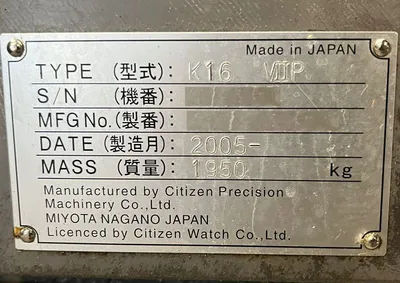

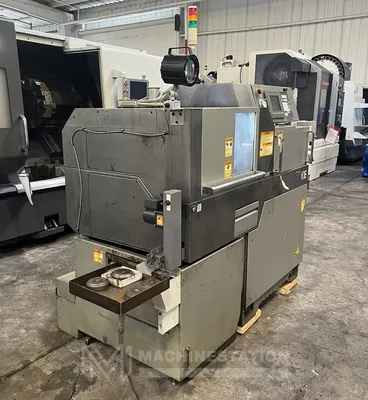

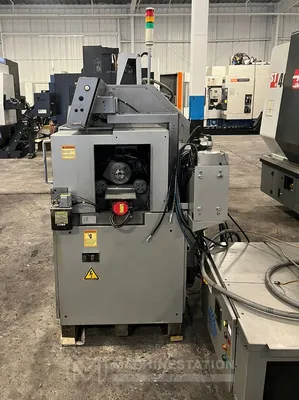

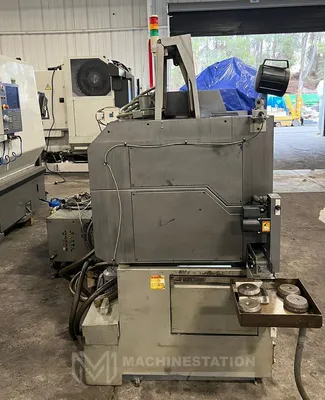

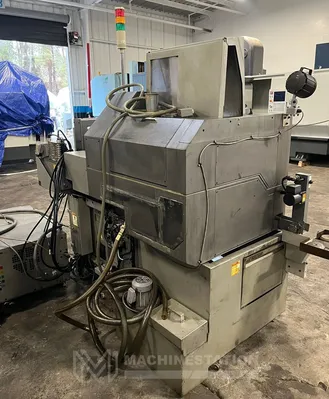

USED 2005 CITIZEN K16 VIIP

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

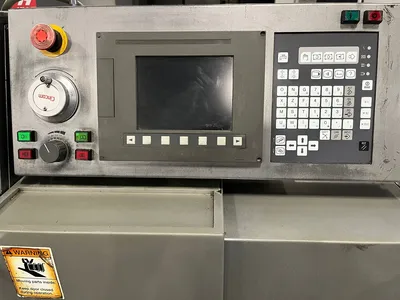

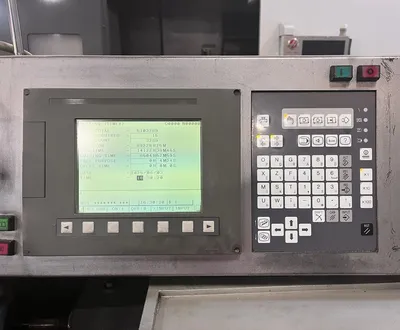

Citizen Cincom (Fanuc) CNC Control

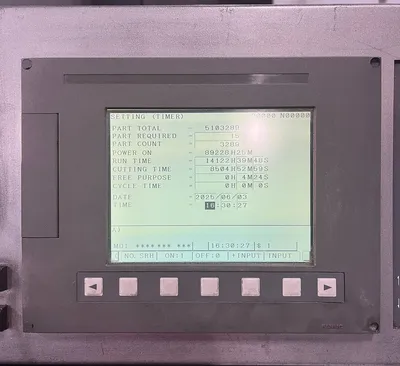

8,504 Hours Cutting Time
7 Axis X1, X2, Y1, Z1, Z2, C1, C2

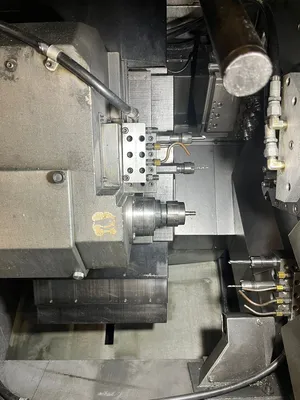

Back Spindle
C & Y Axis Capable
Live Tools Capable
Long Parts Capable
MPG Control
Bar Feeder Interface – Enabled
Main & Back Spindle Synchronization
High Speed Rapid Traverse
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System

Capacity:
Max Machining Diameter: 0.63″ (16 mm)
Max Machining Length: 7.87″ (200 mm)
Max Bar Capacity: 0.63″ (16 mm)
Max Tool Positions: 18
Spindle Through-hole Diameter: 0.79″ (20 mm)
Max. Workpiece Length For Front Ejection: 1.57″ (40 mm)
Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max. Main Spindle Tapping Diameter: M8
Max. Back Spindle Chucking Diameter: 0.79″ (16 mm)
Max. Back Spindle Drilling Diameter: 0.24″ (6 mm)
Max. Back Spindle Tapping Diameter: M5
Max. Cross Drilling Diameter: 0.2″ ( 5 mm)
Max. Cross Tapping Diameter: M4

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Speed: 15000 RPM ?
Back Spindle Motor: 3.7 kw
Back Spindle Indexing: 360°
Back Spindle Speed: 10000 RPM ?
Back Spindle Motor: 1.1 kw

Standard Tools:
Turning Tools: 6
Stationary Tools For Front Spindle: 4
Stationary Tools For Back Spindle: 4

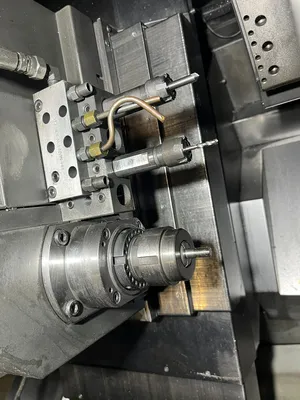

Power Driven Tools Attachment:
Power Driven Tools: 4
Driven Tool Speed: 6000 RPM
Driven Tool Motor: 0.4 kw

General:
Power Source: AC 220v / 3-Phase /60 Hz
Power Requirement: 8 kva
Overall Dimensions: 84″ x 54″ x 68″ High Approx.
Weight: 4300 lbs. Approx.

Part Catcher
Part Conveyor
Coolant System
Cool Blaster System CB510
Leveling Pads
