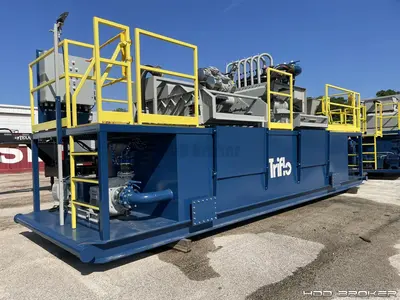

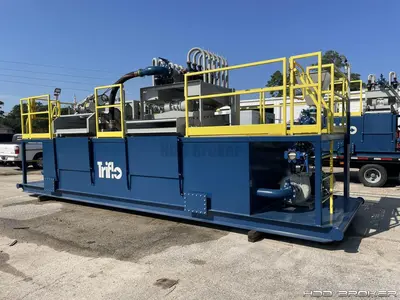

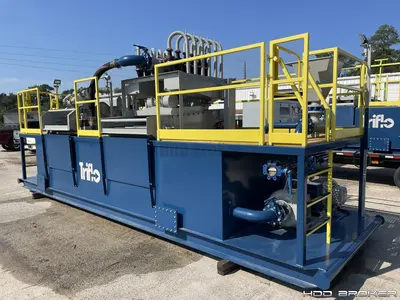

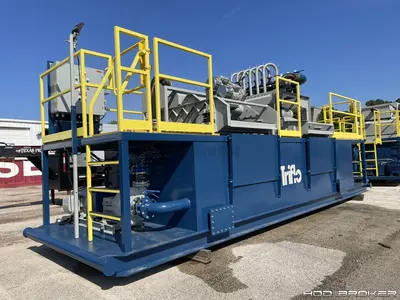

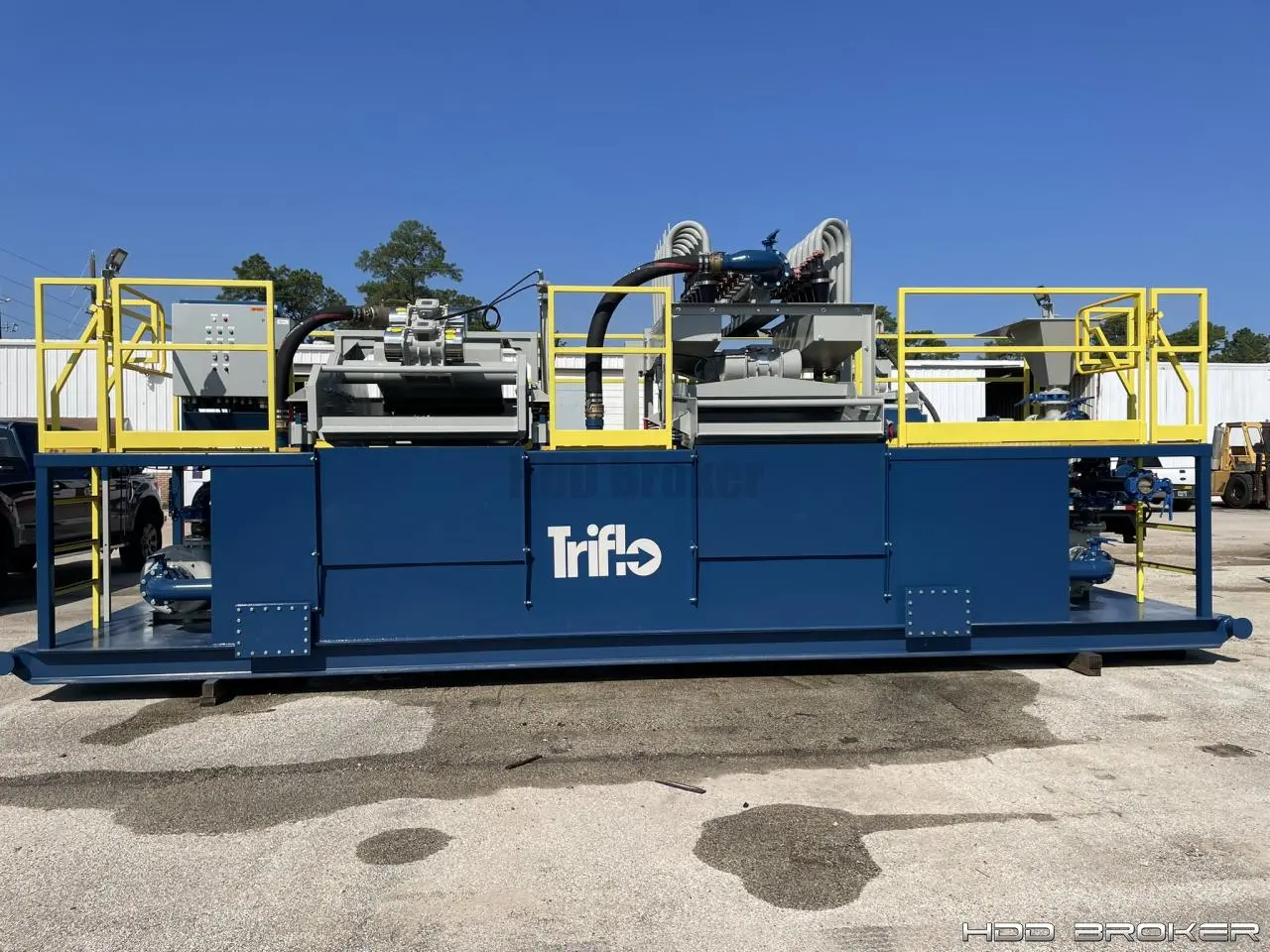

USED 2024 TRI-FLO 2024 TRI-FLO MFS 4000S

General Description:
2024 Tri-Flo MFS 4000S Mud Recycling System.
Accessories:
-(1) 146L Linear Motion Shaker.
-(1) 146E Elliptical Motion Shaker.
-(12) 4 inch Hydrocyclones.
-(1) 4x5 250 Series Centrifugal Pumps with 40HP Electric Motors.
-(1) 4x5 250 Series Centrifugal Pumps with 50HP Electric Motors.
-(4) Stationary Mud Guns.
-(1) 4 inch Mud Hopper with Venturi Jet.
Additional Information:
MANUFACTURES EQUIPMENT SPECIFICATIONS
-Weight: 21,000 lbs.
-Length: 27 ft.
-Width: 7 ft. 10 in.
-Height: 10 ft. 5 in.
-Maximum Capacity: 3961 gallon.
-Number of Tanks: 2.
-Scalper Tank: 1823 gallon.
-Desilter Tank: 2138 gallon.
-Process Rate: 600 GPM.
-Cut Point: 24µ.
-Inlet Size: 4 inch (10.2 cm).
-Outlet Size: 4 inch (10.2 cm).
-Control Panel: Centralized Weatherproof NEMA 4x Control Panel.
-Power Requirements: 135 AMPS.
-Corrosion Control: Chemical/Abrasion Resistant Mastic Tank Lining.
-Frame Type: Skidded.
-Lighting: 2 Telescoping LED Work Lights.
-Mud Recycling / Mud Reclaimer.
Horizontal Directional Drilling (HDD), Civil Construction, and Utility Install.
Seller States:
-Brand New / Never Used!
-It does NOT include the generator or pit pump, just the skidded mud system.
NOT INCLUDED - A 4 Inch Triflo Pit Pump is available at an additional cost.
