USED 2025 TRI-FLO 2025 TRI-FLO ES1000R

General Description:

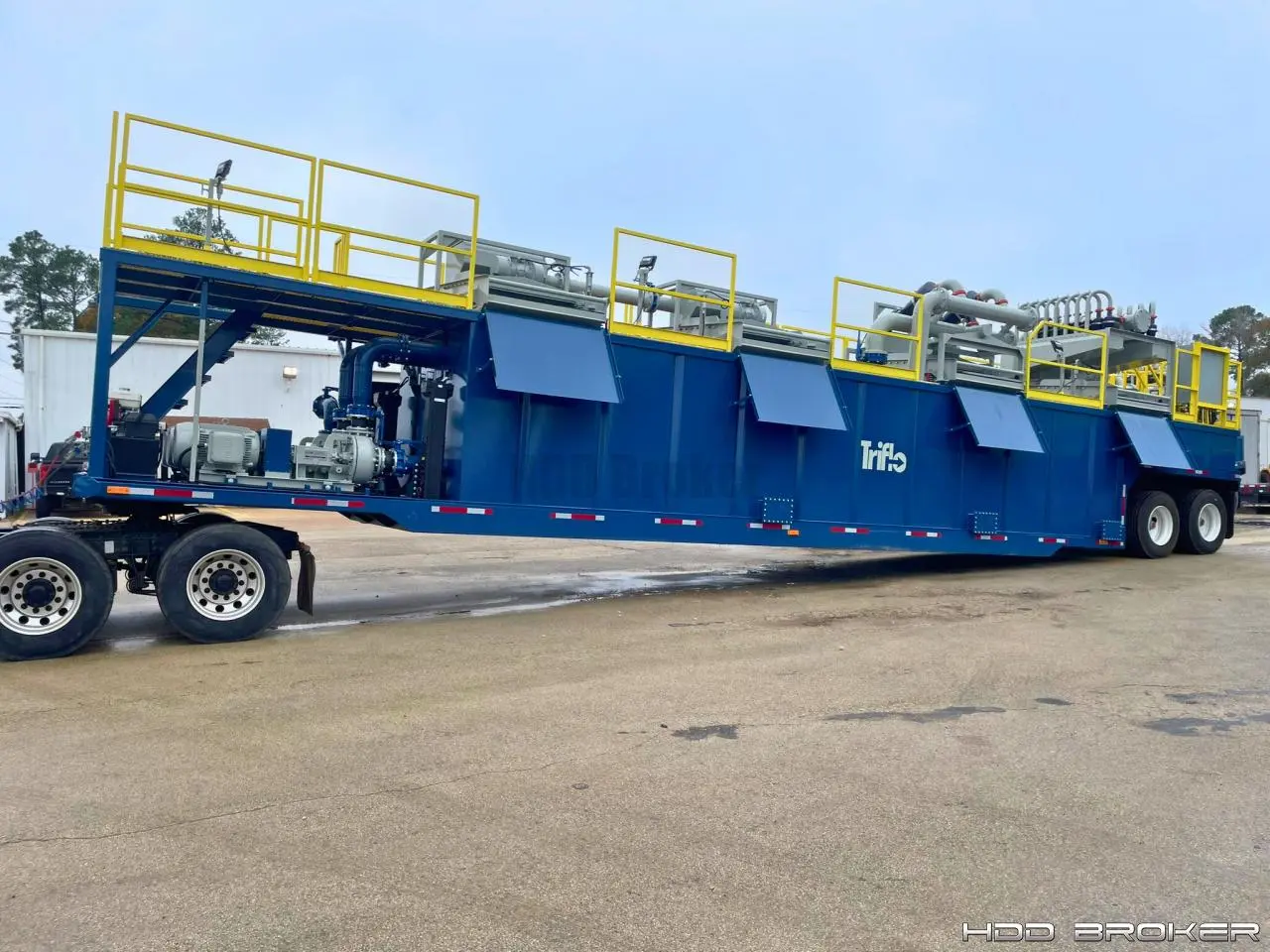

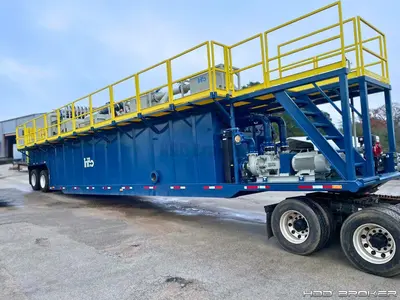

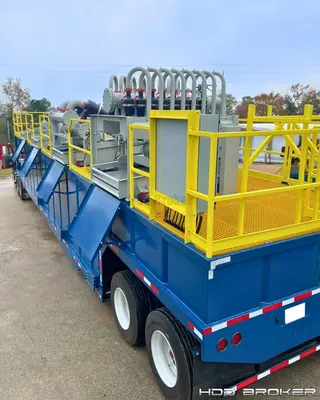

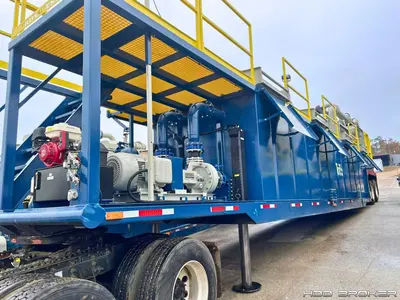

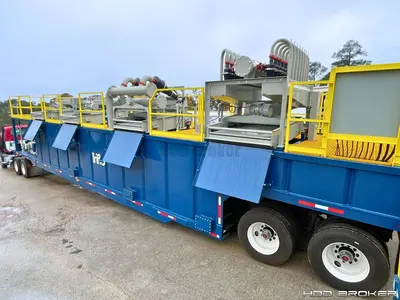

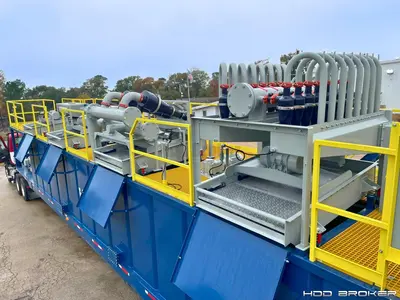

2025 Tri-Flo ES1000R Mud Recycling System.
Accessories:
(4) 146E Elliptical Motion Shaker
(2) 10 in. Hydrocyclones
(16) 4 in. Hydrocyclones
(3) 5x6 250 Series Centrifugal Pumps with 50HP Electric Motor
(3) 7.5HP Agitators with 32" Paddle Blades
Additional Information:
MANUFACTURES EQUIPMENT SPECIFICATIONS
-Weight: 34,418 lbs.
-Length: 53 ft. 5 in.
-Width: 8 ft 6 in.
-Height: 12 ft. 10 in.
-Maximum Capacity: 9,453 gallons.
-Number of Tanks: 3.
-Scalper Tank: 3,800 gallon.
-Desander Tank: 3,120 gallon.
-Desilter Tank: 2,533 gallon.
-Process Rate: 1000 GPM.
-Cut Point: 24µ.
-Inlet Size: 8 inch (20.3 cm).
-Outlet Size: 6 inch (15.2 cm).
-Control Panel: Centralized Weatherproof NEMA 4x Control Panel.
-Power Requirements: 235 AMPS.
-Corrosion Control: Chemical/Abrasion Resistant Mastic Tank Lining.
-Frame Type: Rockover.
-Lighting: 3 Telescoping LED Work Lights.
-Transport: Onboard Hydraulic Jacking System for Quick Coupling/Uncoupling from Tractor-Trailer.
-Mud Recycling / Mud Reclaimer.
Environmental Remediation, Dredging, Pit Cleanup, Tank Bottom Sludge, and Oil Recovery.
