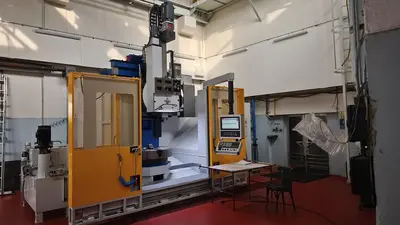

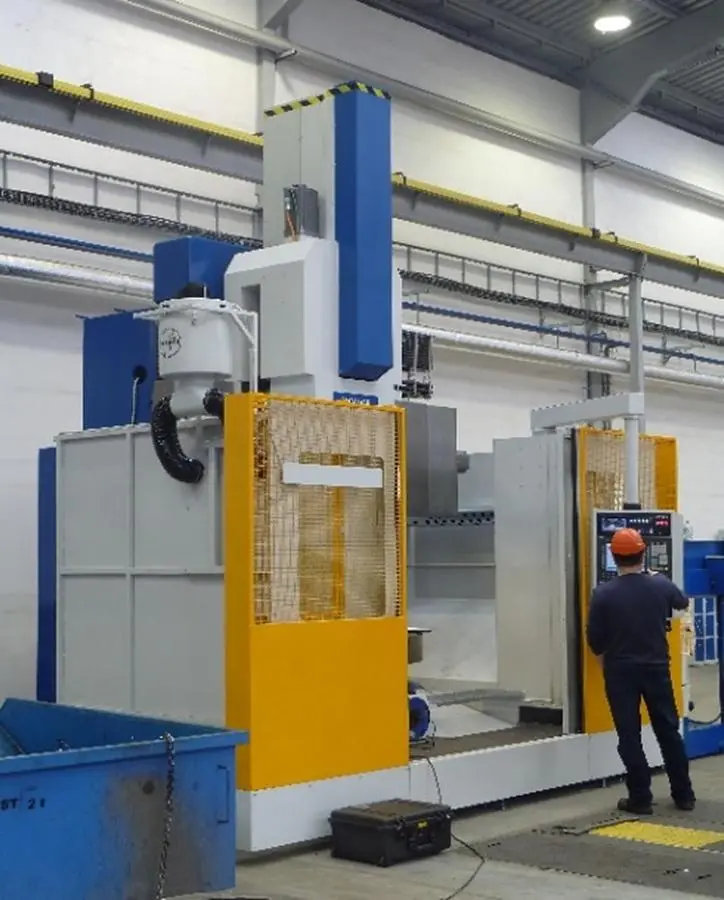

USED 2025 TOSHULIN SKQ 12

Siemens Sinumerik ONE CNC Control15 tool automatic tool exchanger with set of tool holdersClamping plate with 3 jaws automatic hydraulic chuckCombineted ram with rotary spindle and inside cooling systemMovable adjustable crossbar with steel telescopic coversMaster Slave controlled table – 58 kW, 4 special gearboxesDrive of rotary tools by 22kW motor and 2 steps gear box -1:1, 1:4Special cooling system of gearboxes and main crossbearing of plateHydraulic tank included lubrication unit,compressed air unitFront chip conveyor with cooling container 300 litersSafety covers an automatic stepping platform for the operatorUnit for blowing the workpiece with water or airHardened surfaces on crossrab saddle and ram with linear guide biasRittal switchboard with 2 cooling units and Siemens componentsExternal and internal cooling system of the workpiece and toolsStorage of all cables and hoses above floor levelThe machine does not require any special foundation, is stored on the floor of the hall.. Chip removal to the left or right side.Heidenhain linear scale on X axe, Set of tool holds for turning and milling operationInput power 3x400V, 50 Hz,

Manufacturer: TOS HULIN
Model: SKQ 12
Year: 2025
Condition: Used
Stock Number: 11229
Table diameter: 1,250 mm
Swing: 1,500 mm
Max workpiece height: 900 mm
Max workpiece weight: 6 Ton
Output power turning / milling: 58 / 29 kW
Table speed: 380 rpm
Output power on spindle motor: 22 kW
Spindle speeds: 3,000 rpm
Max cutting force: 50,000 N
