USED 2023 CATERPILLAR 2023 CATERPILLAR

General Description:

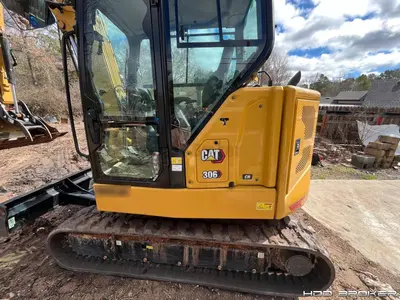

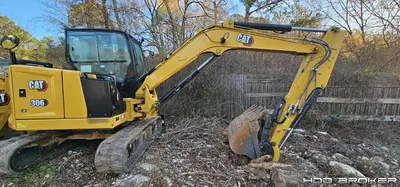

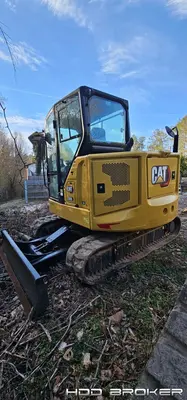

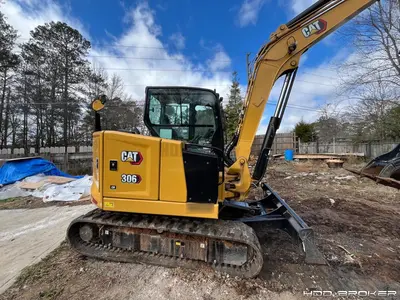

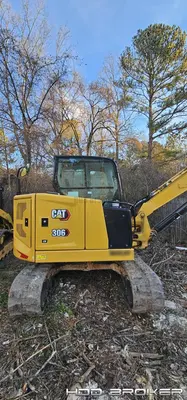

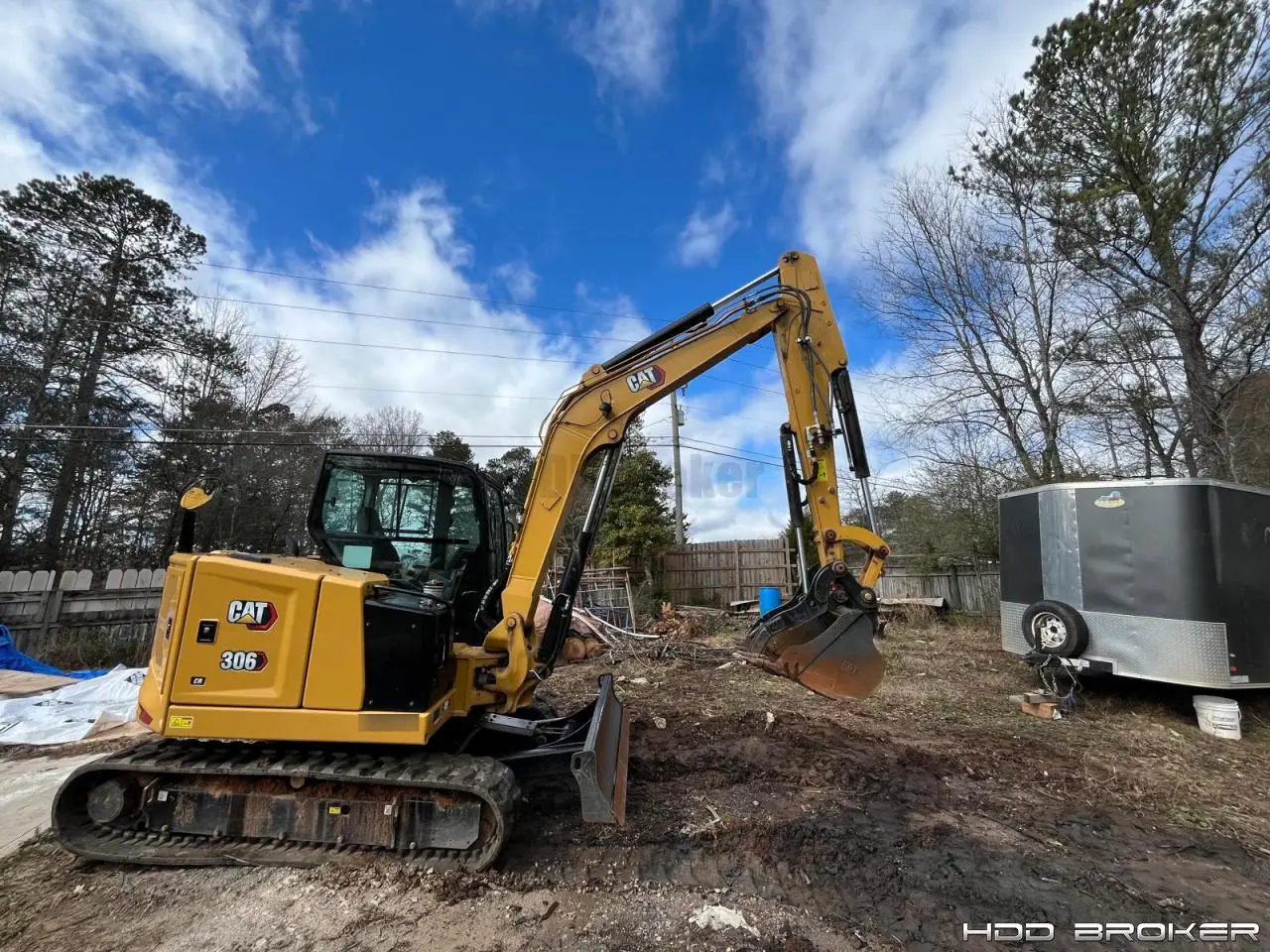

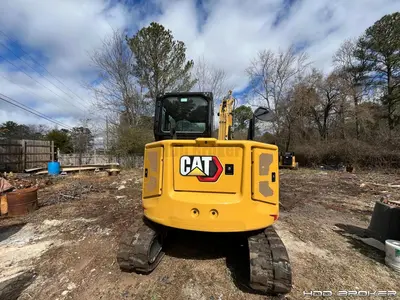

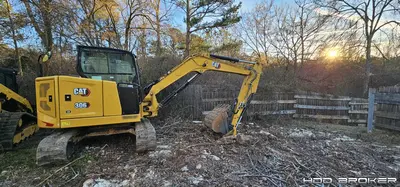

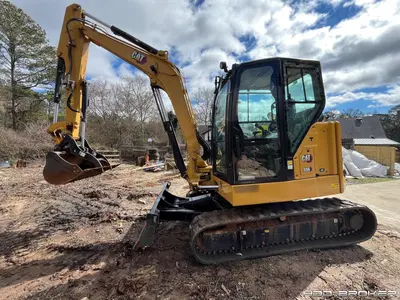

2023 Caterpillar 306-07CR Mini Excavator.
Seller States: 255 Hours only!
Additional Information:

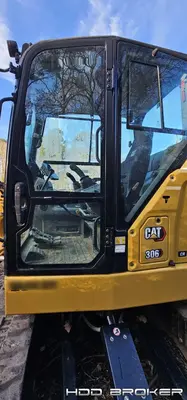

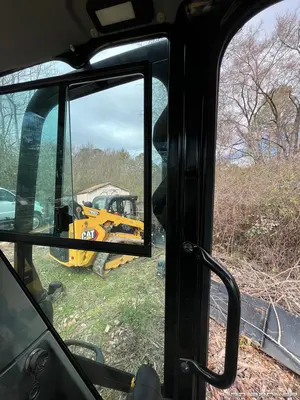

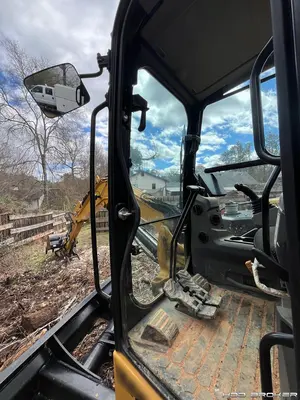

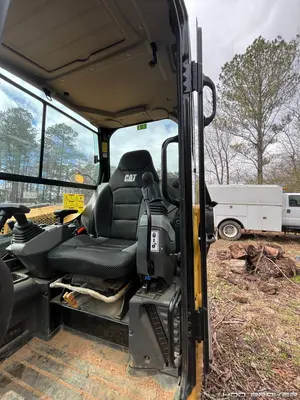

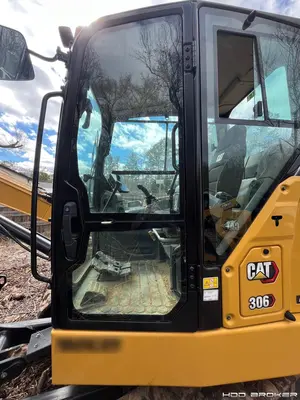

Enclosed Cab Unit.
MANUFACTURES EQUIPMENT SPECIFICATIONS
ENGINE
-Net Power: 55.9 hp
-Engine Model: Cat C2.4 Turbo
WEIGHTS
-Maximum Operating Weight with Cab: 15766 lb
-Minimum Operating Weight with Cab: 14266 lb
(Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, fixed blade and no bucket).
TRAVEL SYSTEM
-Ground Pressure - Minimum Weight: 5.1 psi
-Ground Pressure - Maximum Weight: 5.7 psi
-Gradeability - Maximum: 30 degrees
-Maximum Traction Force - High Speed 6969 lbf
-Maximum Traction Force - Low Speed 12589 lbf
-Travel Speed - High: 3.1 mile/h
-Travel Speed - Low: 1.7 mile/h
HYDRAULIC SYSTEM
-Operating Pressure - Travel: 3553 psi
-Auxiliary Circuit - Primary - Flow: 24 gal/min
-Digging Force - Bucket: 11578 lbf
-Auxiliary Circuit - Primary - Pressure: 3553 psi
-Type: Load Sensing Hydraulics with Variable Displacement Piston Pump
-Auxiliary Circuit - Secondary - Flow: 9 gal/min
-Operating Pressure - Equipment: 3553 psi
-Auxiliary Circuit - Secondary - Pressure: 3553 psi
-Digging Force - Stick - Standard: 6632 lbf
-Operating Pressure - Swing: 3263 psi
-Digging Force - Stick - Long: 5957 lbf
-Pump Flow at 2,400 rpm: 40 gal/min
SWING SYSTEM
-Boom Swing - Right: 65 degrees
-Boom Swing - Left: 60 degrees
-Machine Swing Speed: 11 r/min
BLADE
-Straight Blade Width: 78 in
-Angle Blade Width: 78 in
-Straight Blade Height: 15.4 in
-Angle Blade Height: 15.7 in
SOUND
-Operator Sound Pressure (ISO 6396:2008) 72 dB(A)
-Average Exterior Sound Pressure (ISO 6395:2008) 99 dB(A)
DIMENSIONS - STANDARD STICK
-Track Belt/Shoe Width: 16 in
-Maximum Reach: 248 in
-Stick Length: 62 in
-Vertical Wall: 107 in
-Swing Bearing - Height: 27 in
-Maximum Reach - Ground Level: 241 in
-Maximum Blade Height: 16 in
-Ground Clearance: 12 in
-Boom In Reach: 98 in
-Boom Swing - Right: 36 in
-Transport Height: 69 in
-Tail Swing with Counterweight: 58 in
-Cab Height: 100 in
-Width over Upper House: 77 in
-Maximum Dump Clearance: 170 in
-Tail Swing without Counterweight: 53 in
-Boom Swing - Left: 29 in
-O/A Undercarriage Length: 102 in
-Maximum Dig Height: 230 in
-Maximum Blade Depth: 24 in
-O/A Track Width: 78 in
-Dig Depth: 146 in
-O/A Shipping Length: 235 in
DIMENSIONS - LONG STICK
-Dig Depth: 162 in
-Maximum Blade Height: 16 in
-O/A Track Width: 78 in
-Track Belt/Shoe Width: 16 in
-Tail Swing with Counterweight: 58 in
-Vertical Wall: 125 in
-Boom In Reach: 117 in
-Maximum Blade Depth: 24 in
-Maximum Dig Height: 241 in
-Transport Height: 95 in
-Stick Length: 78 in
-Ground Clearance: 12 in
-Swing Bearing - Height: 27 in
-Width over Upper House: 77 in
-O/A Undercarriage Length: 102 in
-O/A Shipping Length: 234 in
-Cab Height: 100 in
-Maximum Reach: 263 in
-Boom Swing - Left: 29 in
-Tail Swing without Counterweight: 53 in
-Boom Swing - Right: 36 in
-Maximum Dump Clearance: 182 in
-Maximum Reach - Ground Level: 257 in
AIR CONDITIONING SYSTEM
-Air Conditioning

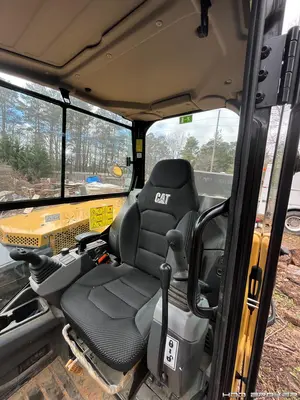

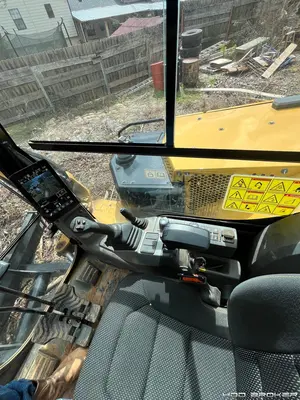

306 CR STANDARD EQUIPMENT - OPERATOR ENVIRONMENT - CAB AND CANOPY
-Top Guard ISO 10262 1998 Level I
-ROPS ISO 12117-2:2008
-Stick Steer Mode
-Travel Cruise Control
-Control Pattern Changer
-Adjustable Wrist Rests
-Moulded Footrests
-Removable, Washable Floor Mat
-Travel Pedals and Hand Levers
-Cat Key with Passcode Option
-Hydraulic Lockout Controls

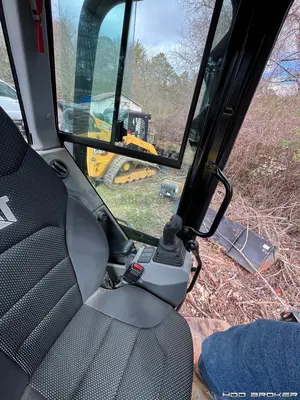

-High Back, Suspension Seat
-Retractable Seat Belt (75 mm/3 in)
-Coat Hook
-Cup Holder
-Literature Holder
-Mounting for Top and Front Guards
-Signal/Warning Horn
-Cab and (left side) Boom Work Lights
-Utility Space for Mobile Phone

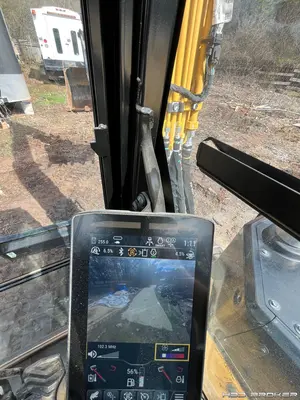

-Next Generation Color LCD Monitor (IP66)
-Fuel Level and Coolant Temperature Gauges
-Maintenance and Machine Monitoring
-Performance and Machine Adjustments
-Numeric Security Code
-Multiple Languages
-Camera Ready (IP68 and IP69K)
-Hour Meter with Wake Up Switch
OPERATOR ENVIRONMENT - CAB ONLY
-Operator Sound Pressure 72 dB(A) ISO 6396:2008
-HVAC with Automatic Temperature Control
-Integrated Lower Front Window
-Assisted Front Window Overhead Storage
-Rear Window Emergency Exit
-LED Interior Light
-12V Power Socket
UNDERCARRIAGE
-Greased and Lubricated Track
-Hydraulic Track Adjusters
-Tie Down Eyes on Track Frame
-Dozer Straight Blade
-Dozer Float
-Bolt-on, Reversible Wear Edge
-Rubber Tracks

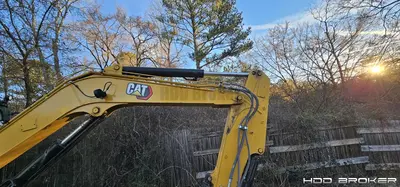

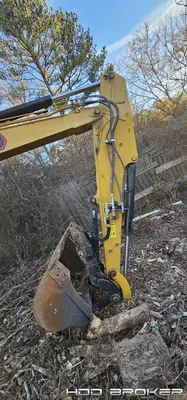

BOOM, STICK AND LINKAGES
-One Piece Boom (3055 mm/120.3 in)
-Standard Stick (1580 mm/62.2 in)
-Front Shovel Capable - Pin-on/Manual Coupler/Hydraulic Coupler for Cat Tools
-Thumb Ready
ELECTRICAL
-12 Volt Electrical System
-90 Ampere Alternator
-650 CCA Maintenance Free Battery
-Battery Disconnect
-Circuit Breaker
-Ignition Key Stop Switch
-Signal/Warning Horn
-Product Link Basic (regulations apply)
-Travel Alarm
OTHER
-Locks on External Enclosure Doors
-Lockable Fuel Cap
-Beacon Socket
-Rear Reflectors
NOT INCLUDED - Seller also has a 2023 Caterpillar 299D3-XE Skid Steer available at an additional cost.
