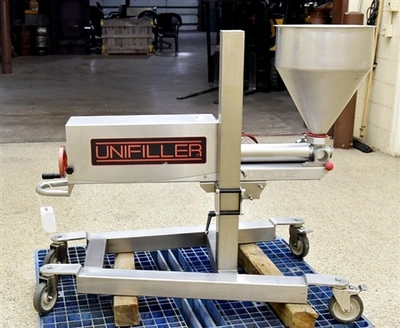

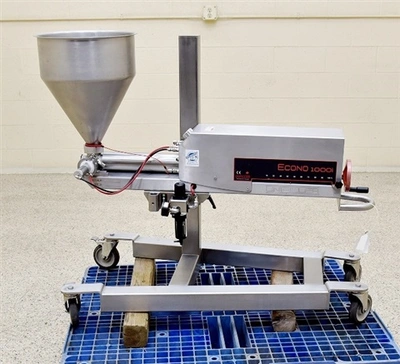

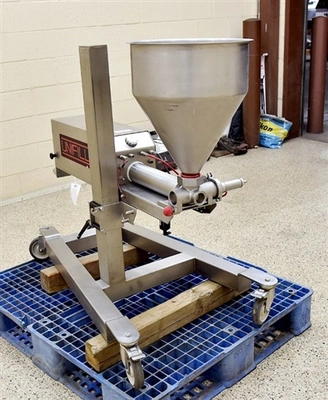

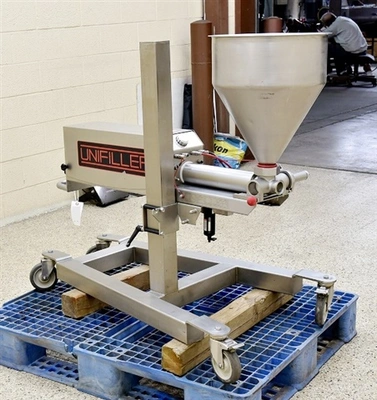

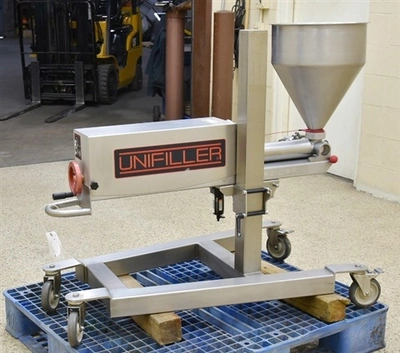

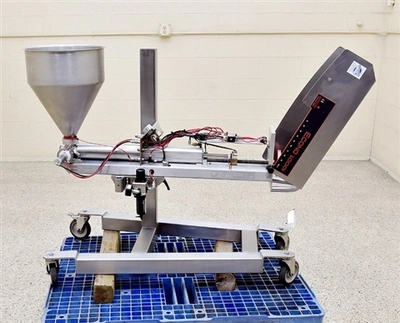

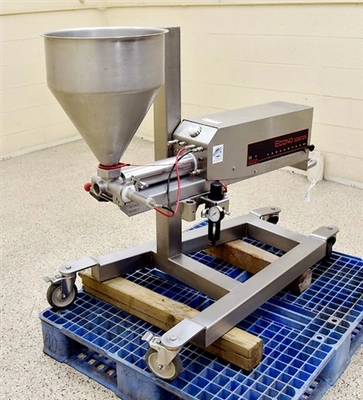

Unifiller Model 1000i Single Piston Depositor

One (1) used Unifiller Model 1000i Single Piston Depositor. Unit can be used for clean depositing of cake, muffin and cupcake batters, chunky fillings, sauces and even delicate mousse fillings.

Manufacturer Rated For

Particulates up to 3/4 inch diameter

Up to 80 cycles per minute.

Pneumatically Operated, Air Actuated Piston

3 inch diameter by 10 inch long stroke piston.

5 to 36 ounce fill per stroke.

4 cfm @ 80 psi compressed air input required for operation

Features

Manual crank volume adjustment - no tools required

14 inch diameter by 17 inch deep conical product hopper

5 inch Tri-Clamp outlet

Support frame with manual height adjustment

All food grade sanitary stainless steel construction

Full washdown design

Mounted on casters for ease of mobility

Does not include
a discharge valve-spout; --a variety of attachments are available direct from the manufacturer suitable for different applications.
