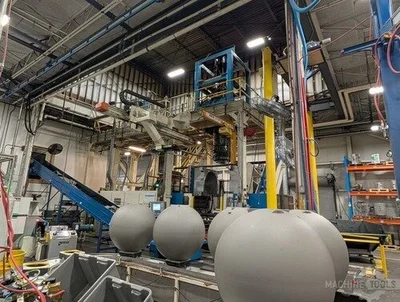

USED 1998 KRUPP KAUTEX CP 241/144

Request a Quote
Add to Cart
Number of Heads: (1) One Head
Shot Size Capacity Ltr/Lbs/Kg: 90 L / 150.8 lbs. / 68.4 kg
Die Ranges (mm/in): 200 (7.87") to 600mm (23.62")
Max Die Gap (mm/in): 50mm/1.968"
Head Tooling Sizes (mm/in): 220 (8.66") / 300 (11.81") / 325 (12.79") - All Divergent
Heating Zones: (8) Eight

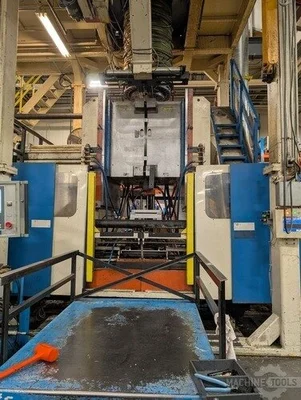

Platen Size (W x L): 59" x 71"
Max Daylight: 106"
Min. Daylight: 23.62"
Stroke: 43"
Clamp Force: 144 Ton
Max Mold Weight(s) (lbs.): 11,000 lbs. (2 x 5,500 lbs.)
Closing Speed (in/min): 975 in/min
Platen Feature(s): Platen Magnetics

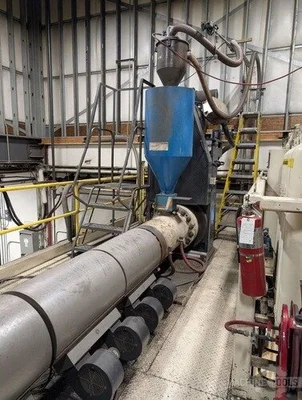

Extruder Screw Size: 150mm (5.9")
Screw Type: Modified VBET Screw
Est. Output (HDPE): 1300 lbs/hr
Extruder Capabilities: Processing Liqid Color & Strand Pellet Masterbatch Colorants

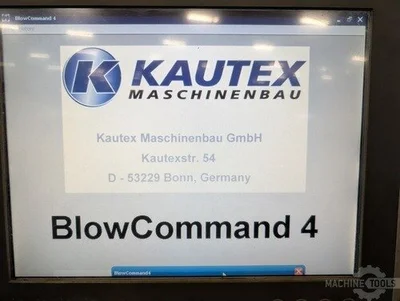

Controller: Beckhoff W/Kautex BlowCommand 4 Software (Upgraded 2015)
Operating System: Windows XP Based Operating System
Note: The last day for anyone to see the current 90L Kautex running will be Friday August 14 2026
Huge Daylight for Large Containers: Several Sets of Head Tooling
Tool Changing Unit and Mold Changing Cart: "Custom Head Tool Change Cart" with Small Scissor Lift for Tool Changing
